Description

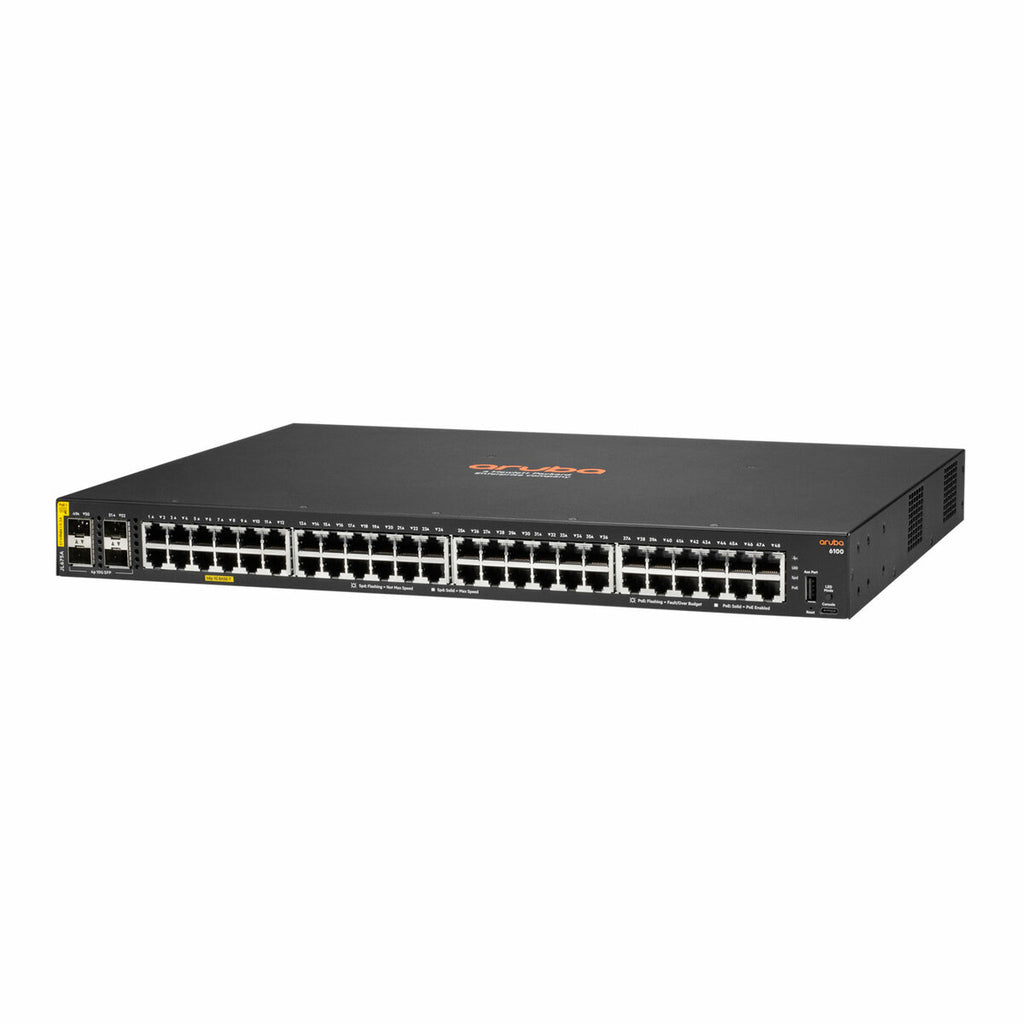

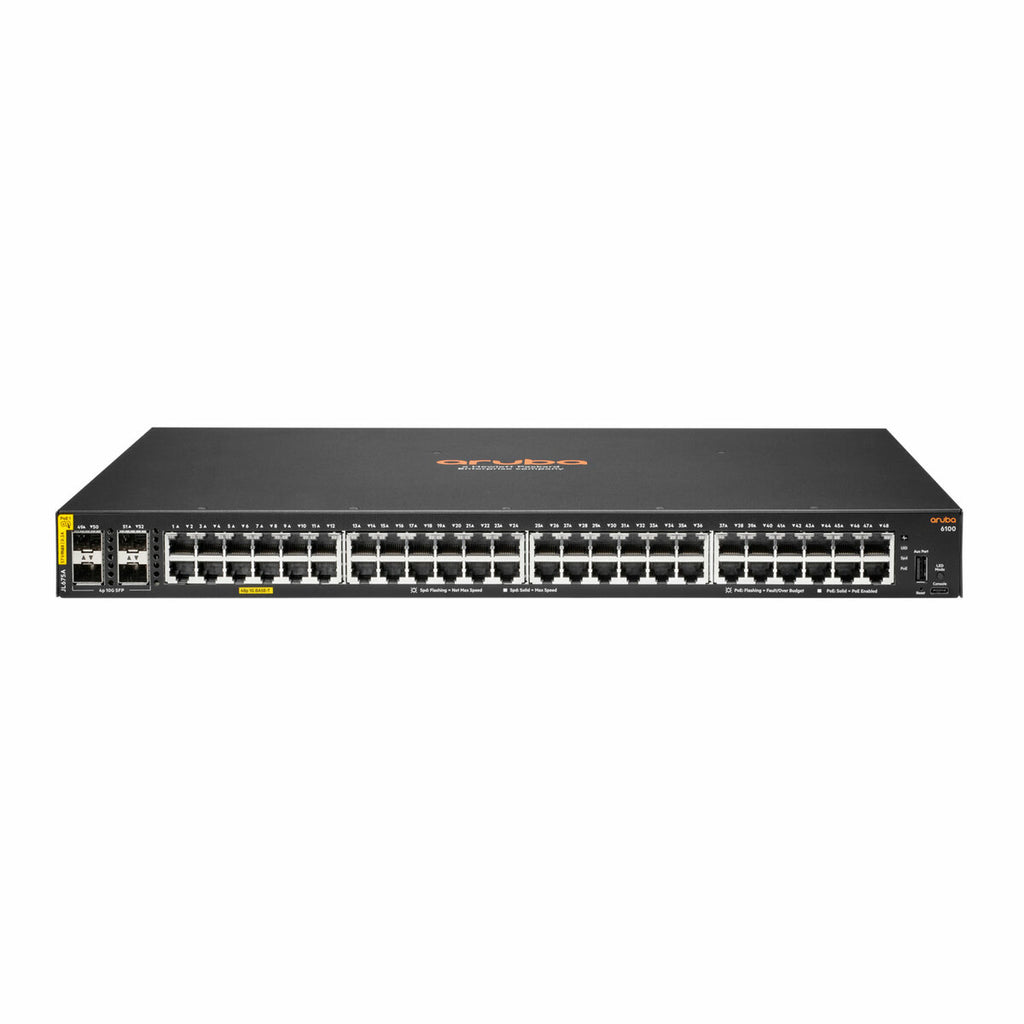

The HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A#ABA) is a high-performance, fully managed Layer 2 switch designed for reliable and secure access in SMBs, branch offices, and mid-size enterprises. With 48 Class 4 PoE+ ports and four 1/10G SFP+ uplinks, this rack-mountable switch supports wired access for demanding applications including IoT, mobile, and cloud services.
Built on the powerful Aruba ASIC architecture and running the modern AOS-CX operating system, the CX 6100 delivers low latency, efficient power usage, and robust QoS. It simplifies network ownership with no additional software licensing, supports static routing, sFlow, and advanced security policies, and integrates with Aruba Central and Switch Multi-Edit Software for centralized management.
Whether deployed in quiet workspaces with fanless options or enterprise access layers, the CX 6100 is the perfect entry-level choice for growing networks requiring scalability, reliability, and simplified IT operations.
| Specification | Details |
|---|---|
| Product SKU | JL675A#ABA |
| Product Type | Managed Layer 2 Switch |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 98.6 Mpps |
| Ports | 48 x 10/100/1000BASE-T (PoE+), 4 x 1G/10G SFP+ uplinks |
| PoE Capability | IEEE 802.3at Class 4 (PoE+), up to 370W total |
| Airflow Direction | Side-to-side |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3 RAM, 16 GB eMMC storage |
| Latency | 1 Gbps: 1.9 μs, 10 Gbps: 1.8 μs |
| Management Interfaces | Web GUI, CLI, REST API, Aruba Central, Multi-Edit Software |
| Software Features | QoS, static routing, ACLs, IPv6, sFlow, role-based access |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Max Power (No PoE) | 45W |
| Max Power (With PoE) | 480W |
| Form Factor | Rack-mountable (1U) |
| Dimensions (WxDxH) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Weight | 11.07 lbs (5.02 kg) |
| Operating System | Aruba AOS-CX |
| Warranty | Limited Lifetime |
