Description

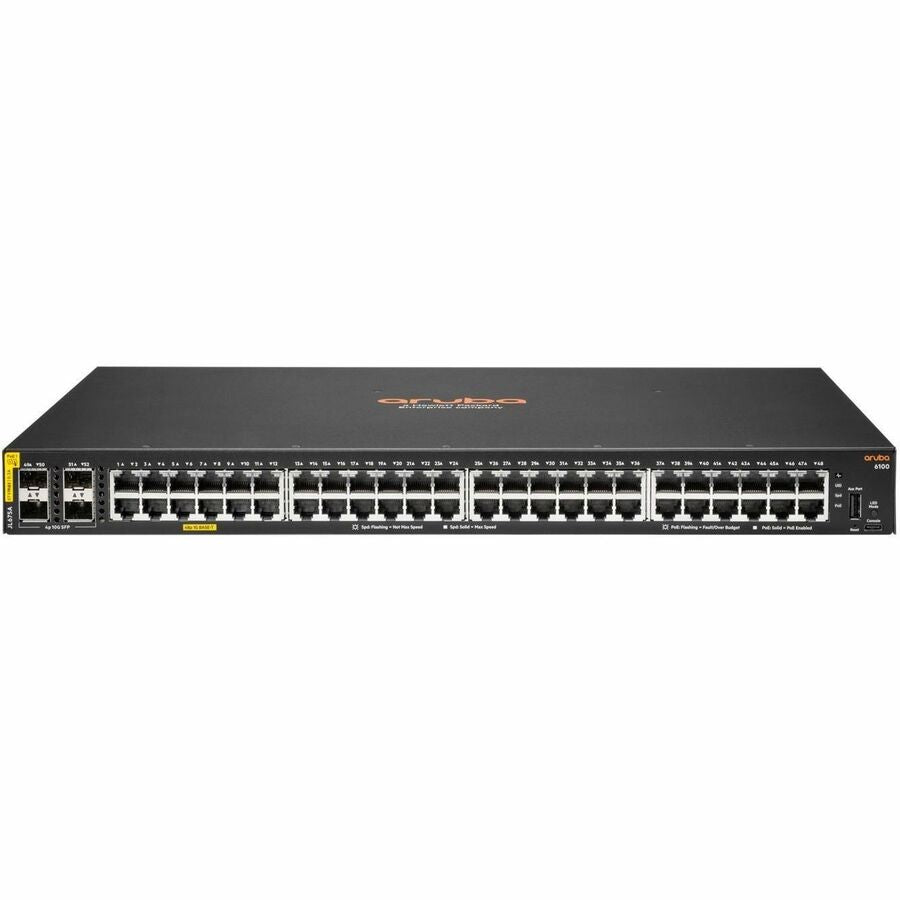

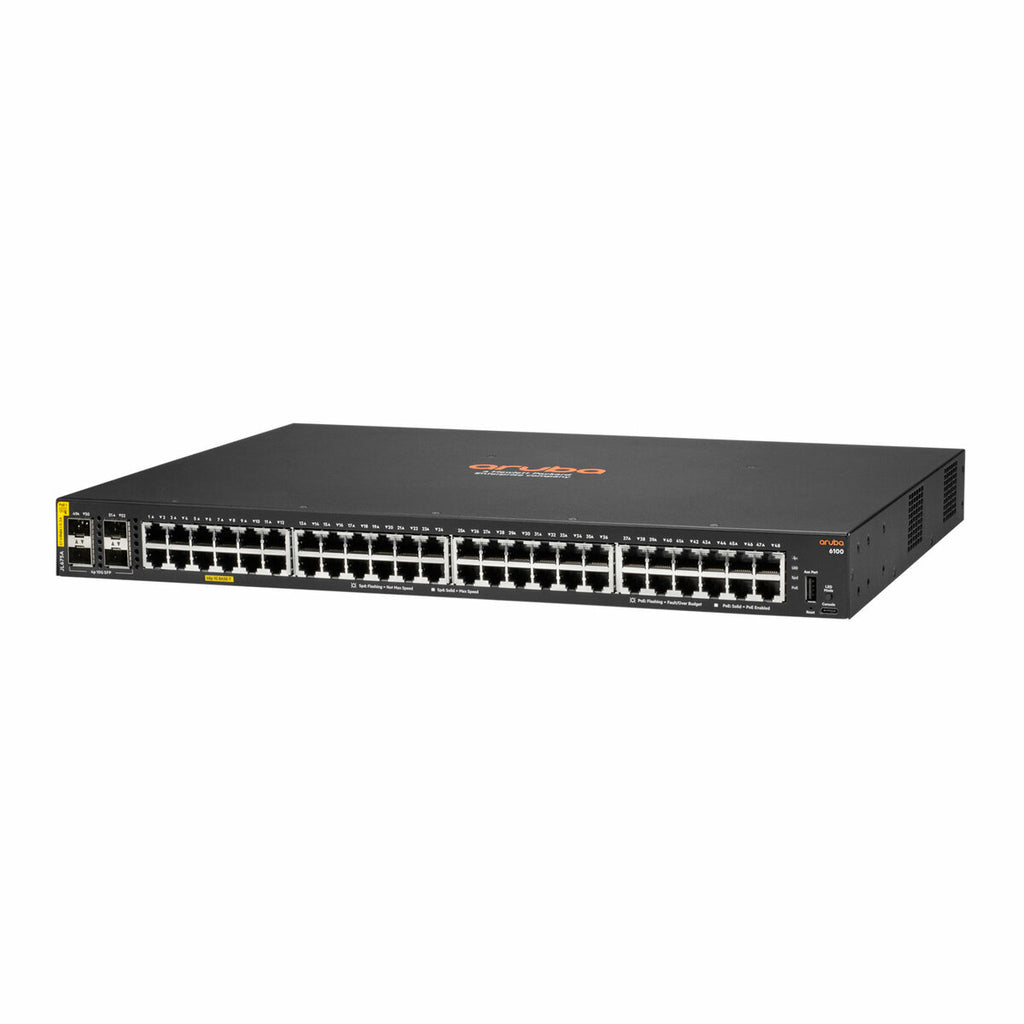

The HPE Aruba Networking CX 6100 48G Class4 PoE+ 4SFP+ 370W Switch (JL675A#AKJ) is a fully managed Layer 2 Gigabit Ethernet access switch purpose-built for enterprise branch offices, mid-size businesses, and SMBs. With 48 RJ-45 ports supporting 802.3at PoE+ (up to 370W total) and four built-in 1G/10G SFP+ uplinks, it delivers robust wired connectivity for demanding network environments.
Powered by the AOS-CX operating system, it offers consistent, simplified configuration and monitoring with support for static routing, ACLs, sFlow, and REST APIs. Its compact, rack-mountable design and side-to-side airflow make it ideal for space-constrained deployments. No licensing required—enterprise features included out of the box.
| Feature | Details |
|---|---|
| Model Number | JL675A#AKJ |
| Product Series | HPE Aruba Networking CX 6100 |
| Ports | 48x 10/100/1000BASE-T (PoE+) + 4x SFP+ (1G/10G) |
| PoE Budget | Up to 370W (IEEE 802.3at Class 4 PoE+) |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1G: 1.9 µs, 10G: 1.8 µs |
| Memory | 4 GB DDR3 RAM, 16 GB eMMC |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Power Input | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max 45W (without PoE), 480W (with PoE) |
| Airflow | Side-to-side airflow |
| Form Factor | Rack-mountable, 1U height |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Weight | 11.07 lbs (5.02 kg) |
| Management | AOS-CX, Web GUI, CLI, REST API, Central support |
| Software Features | Static Routing, ACLs, QoS, IPv6, sFlow |
