Description

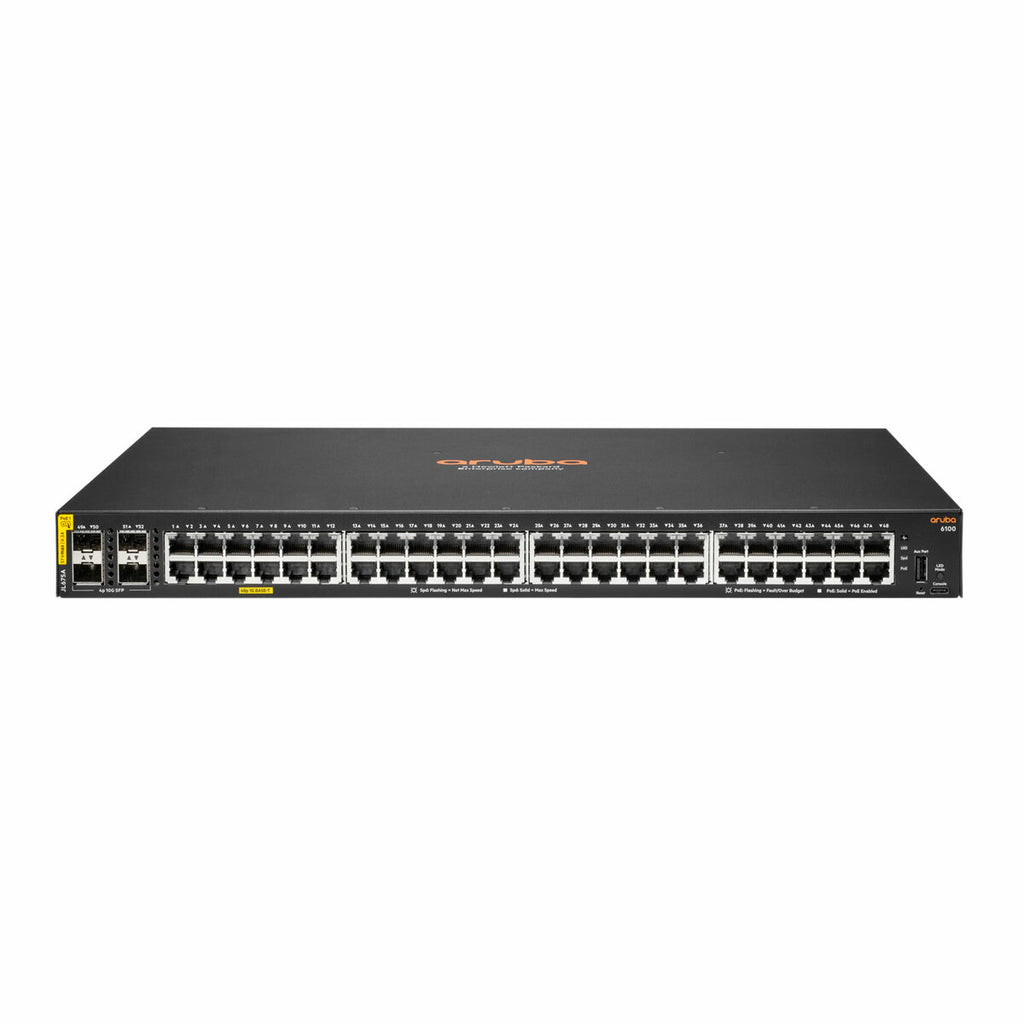

The HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A#ACC) is an enterprise-class Layer 2 managed switch built for reliable access in branch offices, SMBs, and enterprise networks. Featuring 48 gigabit PoE+ ports and 4 high-speed 1/10GbE SFP+ uplinks, this model ensures robust connectivity for devices like IP cameras, wireless access points, and IoT endpoints. With a total PoE budget of 370W and side-to-side airflow for optimal cooling, this switch is designed for performance, simplicity, and silent operation.
Powered by the Aruba AOS-CX operating system and backed by enterprise-grade hardware, it delivers low-latency switching, static routing, ACLs, and integrated security features. Management is flexible through CLI, Web GUI, Aruba Central, or Multi-Edit Software, offering easy integration with cloud and software-defined environments.
| Specification | Details |
|---|---|
| Model Number | JL675A#ACC |
| Switch Type | Managed Layer 2 |
| Ports | 48 × 10/100/1000BASE-T (PoE+) 4 × 1G/10G SFP+ uplinks |
| PoE Budget | 370W IEEE 802.3at (Class 4 PoE+) |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1 Gbps: 1.9 µs 10 Gbps: 1.8 µs |
| Processor & Memory | Dual Core ARM Cortex A9 @ 1016 MHz 4GB DDR3 16GB eMMC |
| Power Input | 100–127 VAC / 200–240 VAC |
| Max Power Consumption | 45W (w/o PoE) 480W (with PoE) |
| Airflow | Side-to-side |
| Mounting | Rack-mountable (1U) |
| Dimensions (WxDxH) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Weight | 11.07 lbs (5.02 kg) |
| Management Options | Aruba Central, CLI, Web GUI, REST APIs, Switch Multi-Edit Software |
| Operating System | ArubaOS-CX |
| Other Features | Static Routing, QoS, sFlow, ACLs, IPv6 Support |
