Description

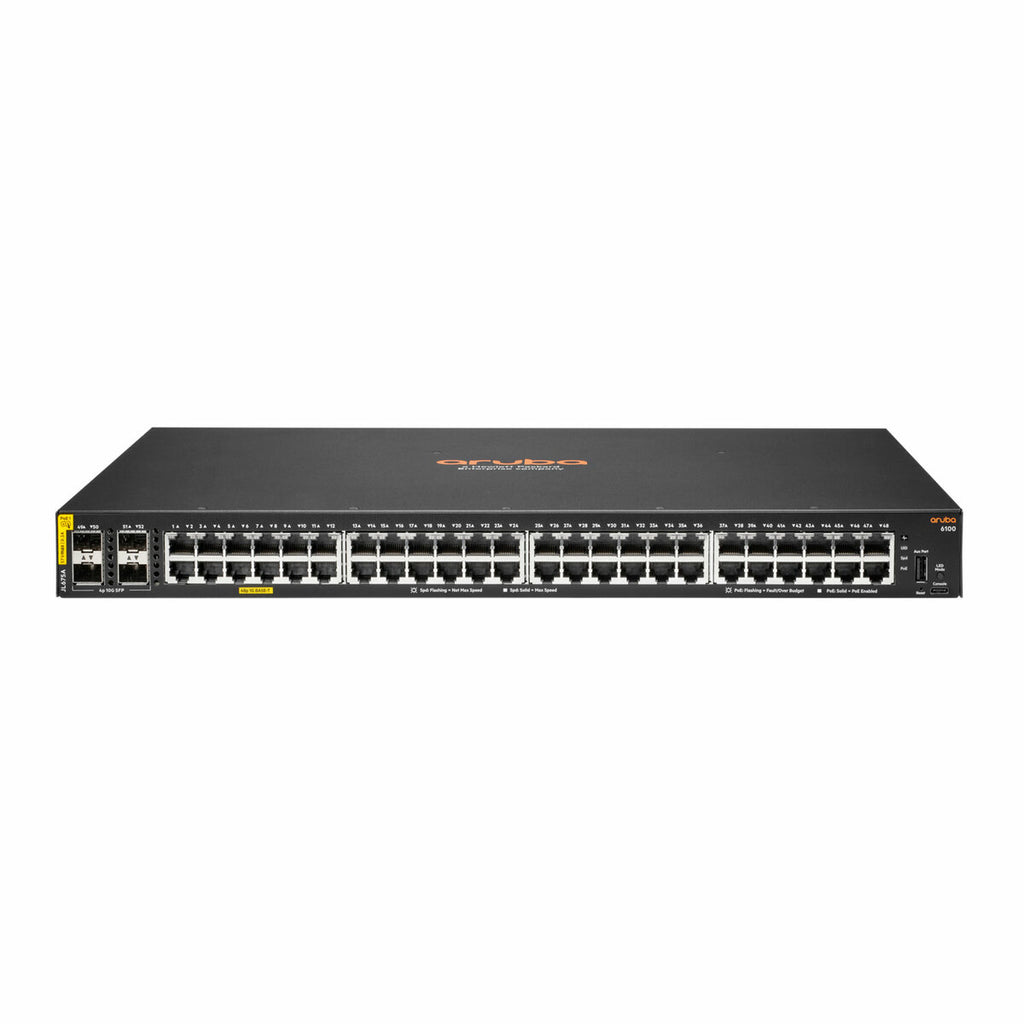

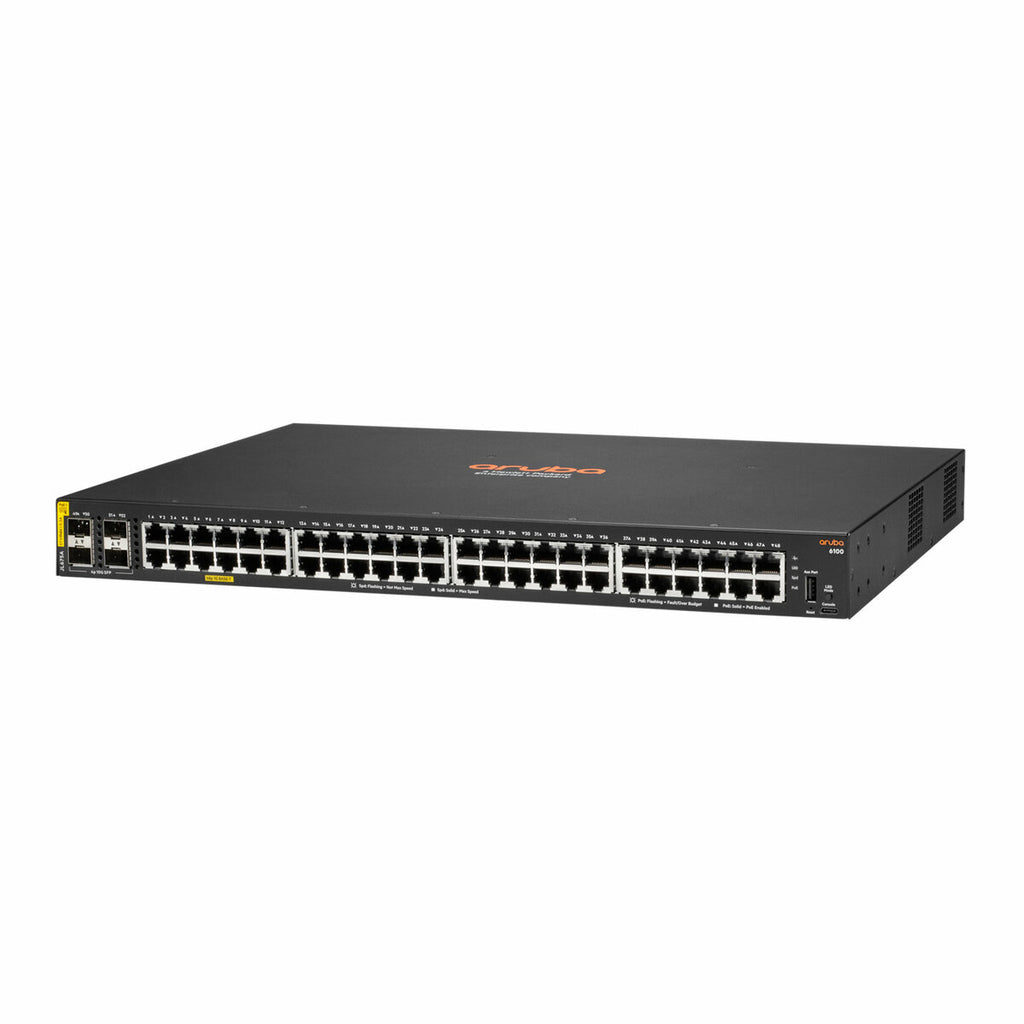

The HPE Aruba Networking CX 6100 48G Class4 PoE+ 4SFP+ 370W Switch is an enterprise-grade Layer 2 switch built for performance, simplicity, and reliability. Ideal for branch offices, SMBs, and enterprise edge deployments, this switch delivers 48x 1GbE ports with IEEE 802.3at PoE+ and 4x 1/10GbE SFP+ uplinks. Powered by the AOS-CX operating system and a robust ASIC architecture, it ensures fast, secure, and scalable connectivity.
With 370W of available PoE+ power, it’s perfect for powering IP phones, cameras, and access points. Advanced management options via Aruba Central, CLI, Web GUI, and REST APIs make it easy to deploy and scale. Designed for future-ready networks, the CX 6100 combines low latency, high switching capacity, and side-to-side airflow in a rack-mountable 1U design.
| Specification | Details |
|---|---|
| Model | JL675A#ABG |
| Ports | 48x 10/100/1000BASE-T (PoE+) |
| 4x 1/10GbE SFP+ uplinks | |
| Switch Type | Fully Managed Layer 2 |
| Airflow | Side-to-side |
| PoE Budget | 370W IEEE 802.3at (Class 4) |
| Memory | 4 GB DDR3 RAM |
| Storage | 16 GB eMMC |
| Processor | Dual Core ARM Cortex-A9 @ 1016 MHz |
| Latency | 1 Gbps: 1.9 µs; 10 Gbps: 1.8 µs |
| Throughput | 98.6 Mpps |
| Switching Capacity | 176 Gbps |
| Power Consumption | Max 45W (w/o PoE), Max 480W (with PoE) |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Form Factor | 1U rack-mountable |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in |
| Weight | 11.07 lbs (5.02 kg) |
| Operating System | Aruba AOS-CX |
| Management Options | Web GUI, CLI, Aruba Central, REST APIs |
