Description

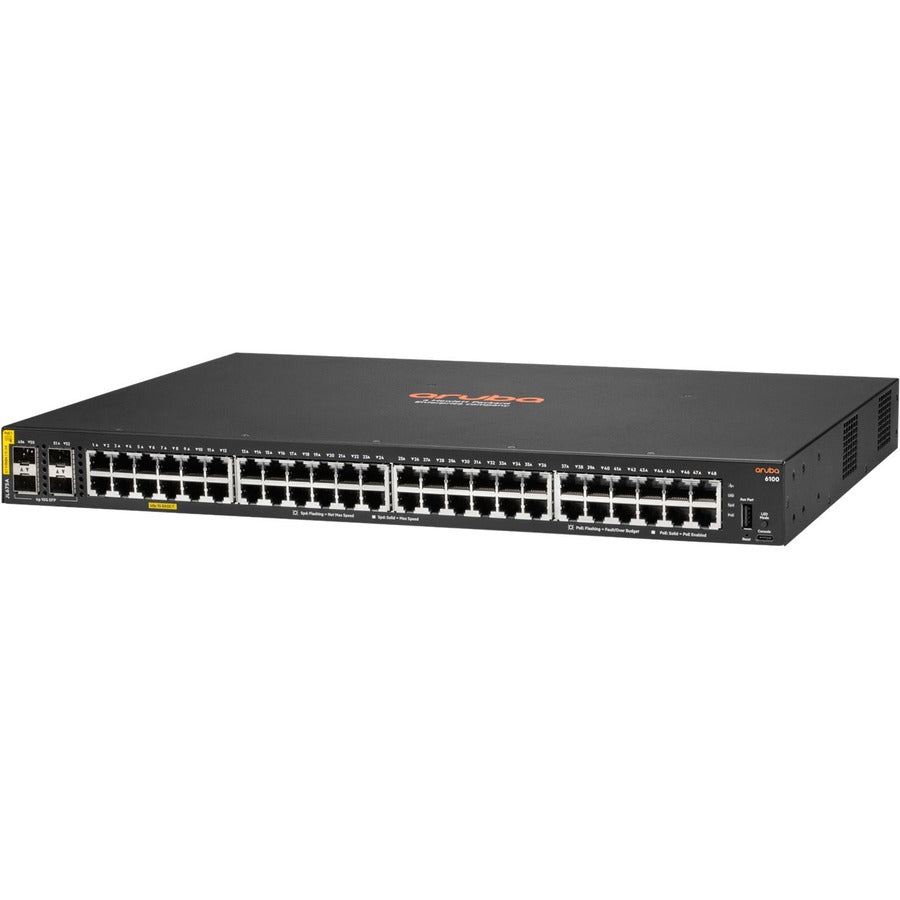

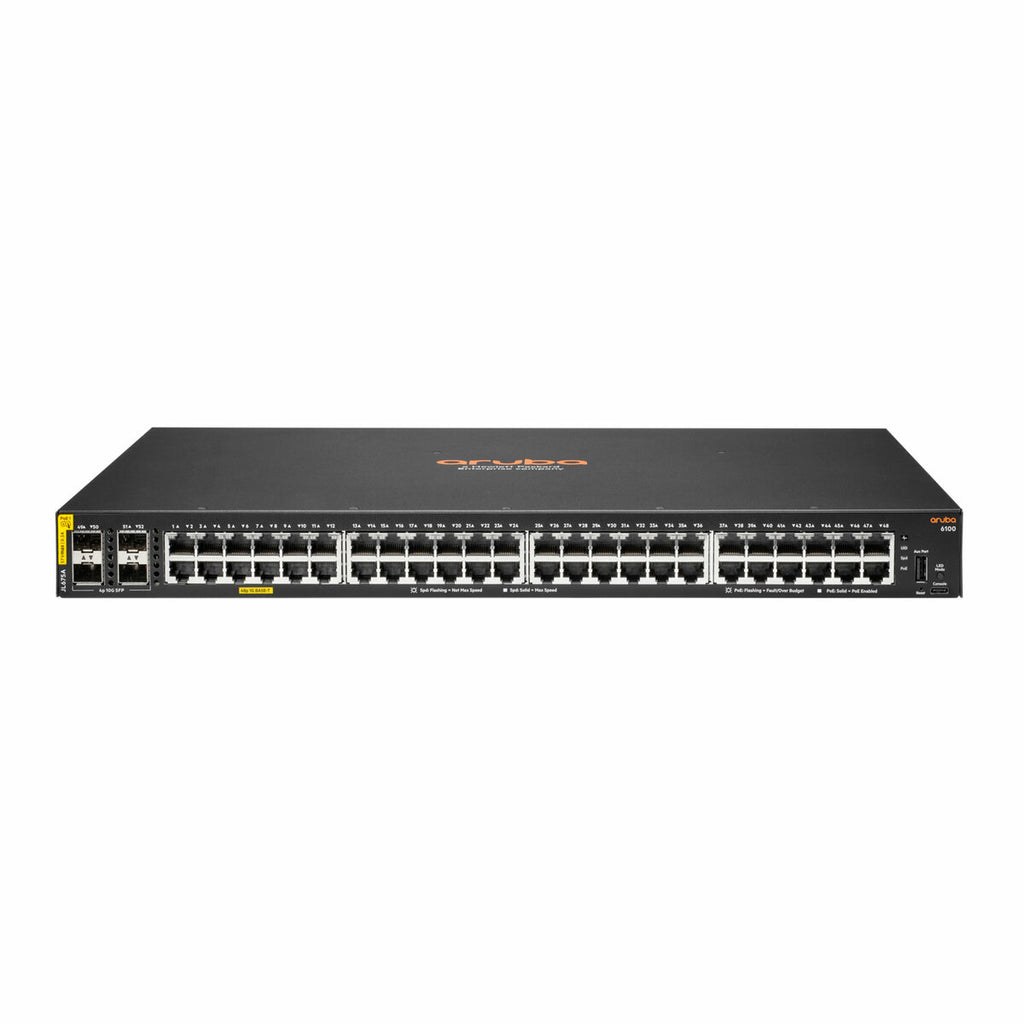

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches purpose-built for enterprise branch offices, mid-market, and SMB networks. The JL675A#ABB model features 48 1G PoE+ ports and 4 SFP+ uplinks, delivering simplified, reliable, and scalable wired connectivity.
Powered by the robust AOS-CX operating system and designed with a high-performance ASIC, the CX 6100 ensures a consistent and efficient network experience. With support for 370W Class 4 PoE, it powers IP phones, wireless access points, and IoT devices with ease. The switch offers flexible management via Aruba Central, CLI, or Web GUI, and supports Layer 2 features including static routing, ACLs, and sFlow.
Ideal for environments requiring silent operation, scalability, and investment protection, this fully managed switch delivers enterprise-grade performance in a compact, rack-mountable form.
| Specification | Details |
|---|---|
| Product Number | JL675A#ABB |
| Switch Type | Managed Layer 2 Access Switch |
| Ports | 48 × 10/100/1000BASE-T (PoE+) 4 × 1G/10G SFP+ uplinks |
| PoE Budget | 370W IEEE 802.3at Class 4 PoE/PoE+ |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1G: 1.9 µs 10G: 1.8 µs |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3 RAM 16 GB eMMC storage |
| Airflow | Side-to-side |
| Mounting | Rack-mountable |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Max Power Consumption | 480W (with PoE) 45W (without PoE) |
| Dimensions | 1.73 x 17.4 x 12.0 in (HxWxD) |
| Weight | 11.07 lbs (5.02 kg) |
| Management Options | Web GUI, CLI, Aruba Central, Multi-Edit Software |
| Software | Aruba AOS-CX OS, REST APIs, colorless ports, LMA |
