Description

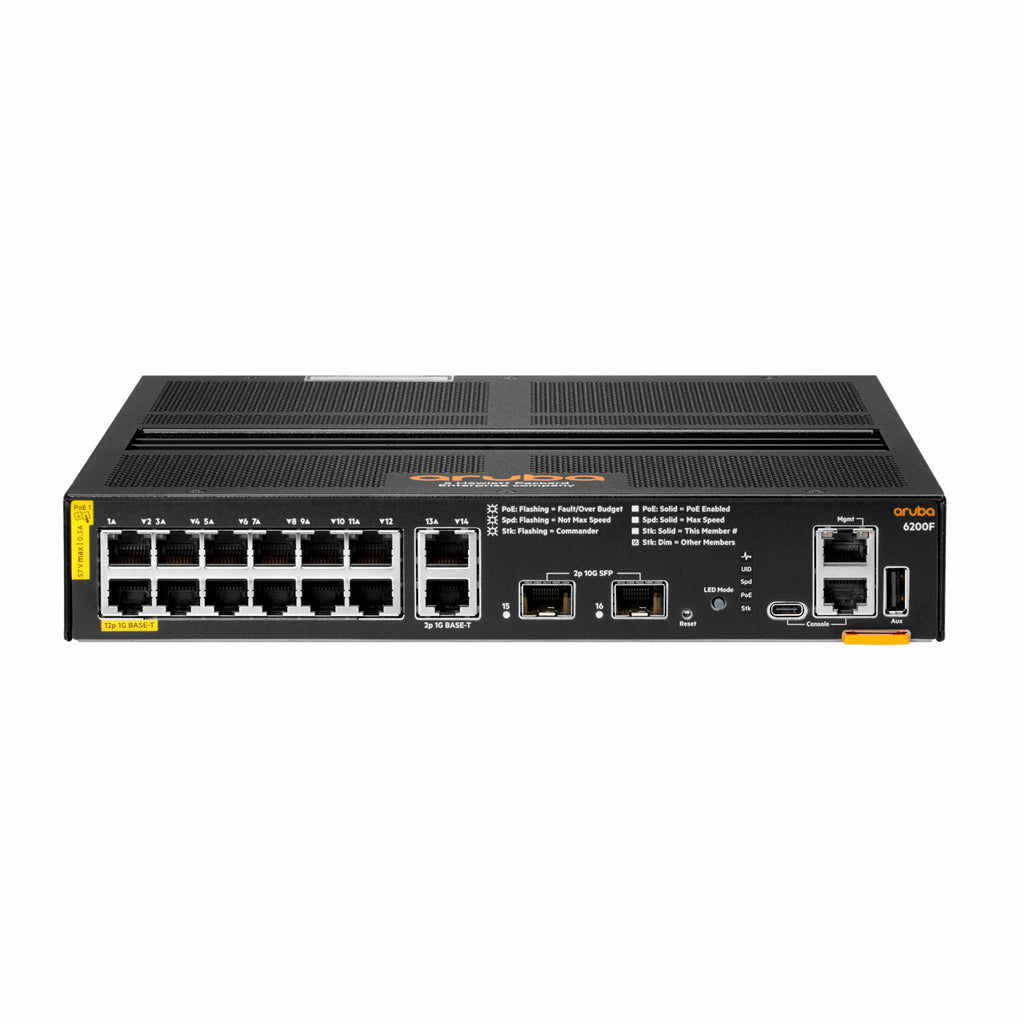

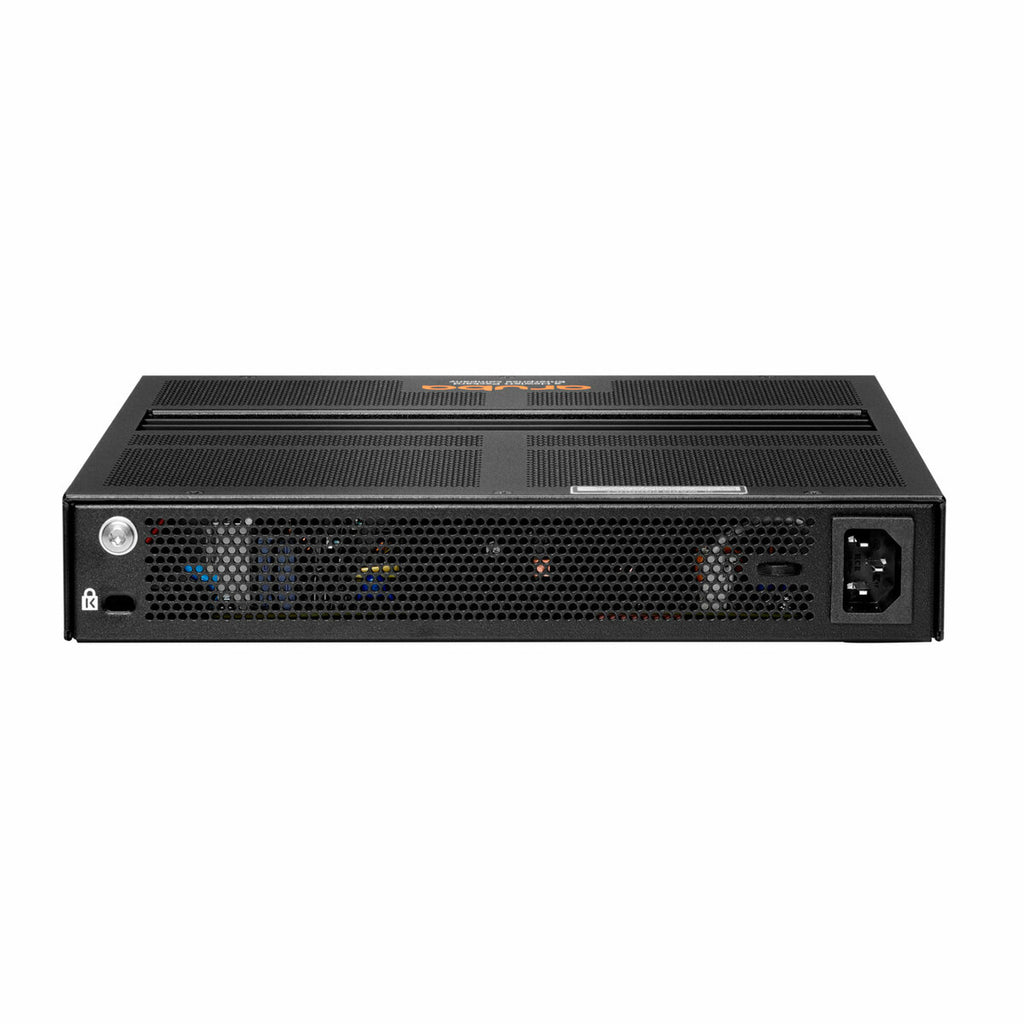

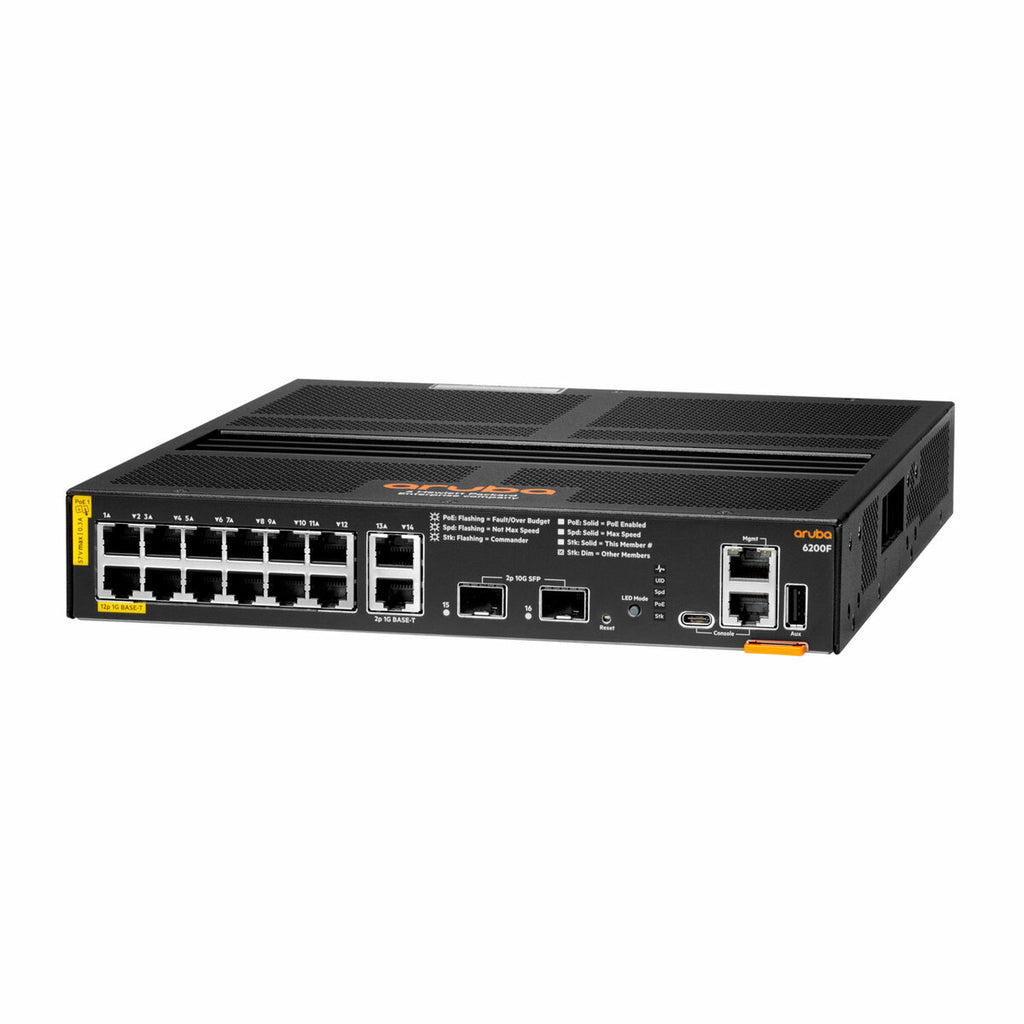

The HPE Aruba Networking CX 6200F 12G Class4 PoE Switch delivers enterprise-class performance in a compact form, ideal for SMBs, branch offices, and enterprise edge networks. With 12 Class 4 PoE+ 10/100/1000 ports, 2 uplink ports, and 2 high-speed 1G/10G SFP+ uplinks, this managed Layer 3 switch provides 139W PoE power for devices such as IP phones, security cameras, and wireless access points.
Built on a powerful Gen7 ASIC architecture, it supports wire-speed switching, low latency, and advanced network analytics via the Aruba Network Analytics Engine. This model also supports Aruba Virtual Switching Framework (VSF) for stacking up to 8 switches, making it an efficient and scalable solution for growing environments.
| Category | Details |
|---|---|
| Model Number | R8Q72A#ABA |
| Switch Type | Layer 3, Managed |
| Ports | 12x 10/100/1000 (PoE+), 2x 100/1000 uplinks, 2x 1G/10G SFP+ |
| PoE Power Budget | 139W Class 4 PoE (IEEE 802.3af/802.3at), up to 30W per port |
| Console Ports | 1x RJ-45, 1x USB-C |
| Other Ports | 1x USB Type-A Host, 1x OOBM |
| Stacking | Aruba VSF, up to 8 switches |
| Throughput | Up to 45.1 Mpps |
| Switching Capacity | 68 Gbps |
| Latency | 1G: 2.28 ΞΌs, 10G: 1.46 ΞΌs |
| Processor | Quad Core ARM Cortex-A72 @ 1.2 GHz |
| Memory | Integrated (details not disclosed) |
| Power Supply | Fixed internal, supports up to 139W PoE |
| Input Voltage | 100Vβ120V / 200Vβ240V |
| Power Consumption | Max 170W @ 230V |
| Form Factor | Rack-mountable (1U) |
| Dimensions | 1.73 x 17.42 x 12.81 in (4.39 x 44.24 x 32.54 cm) |
| Weight | 11.22 lbs (5.09 kg) |
