Description
High-Performance Access Switching for the Modern Edge

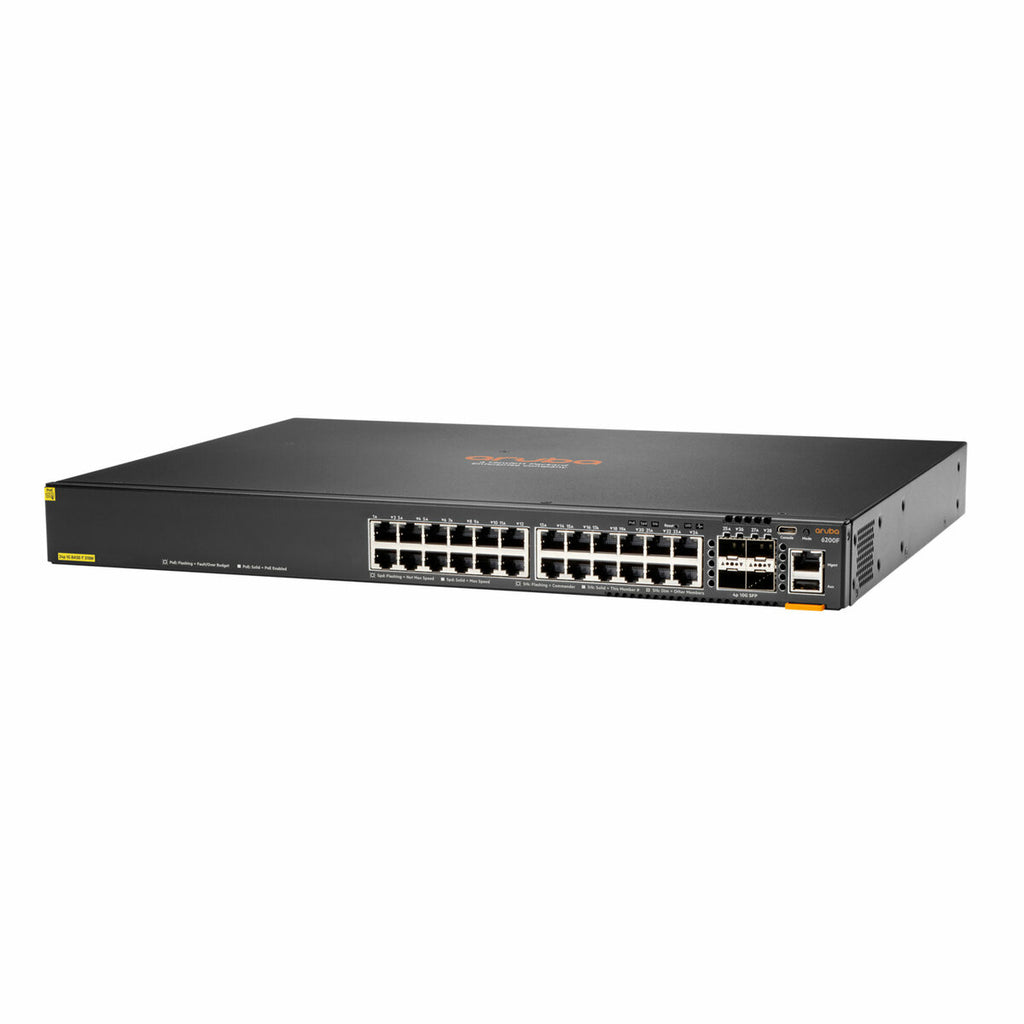

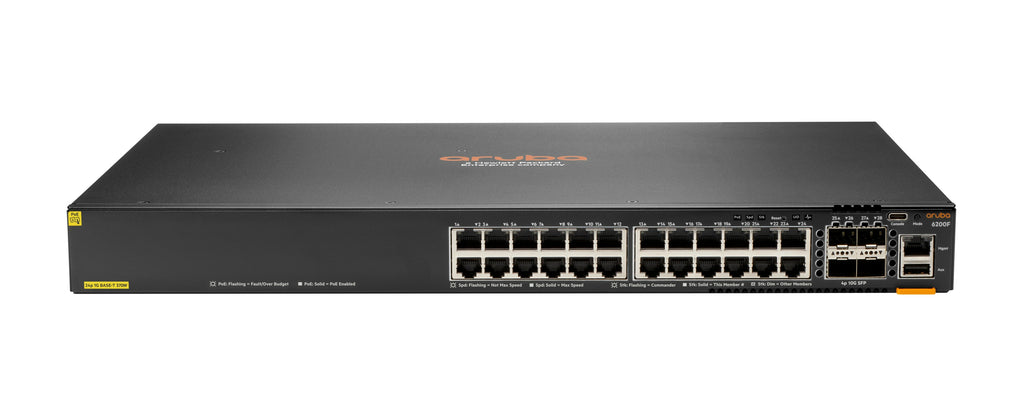

The HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch is a cloud-native, enterprise-class access switch designed for performance, scale, and ease of management. Part of the next-generation Aruba CX 6200 Series, it delivers Layer 3 capabilities, built-in high-speed uplinks, and robust PoE support, making it ideal for branch offices, SMBs, and campus networks.

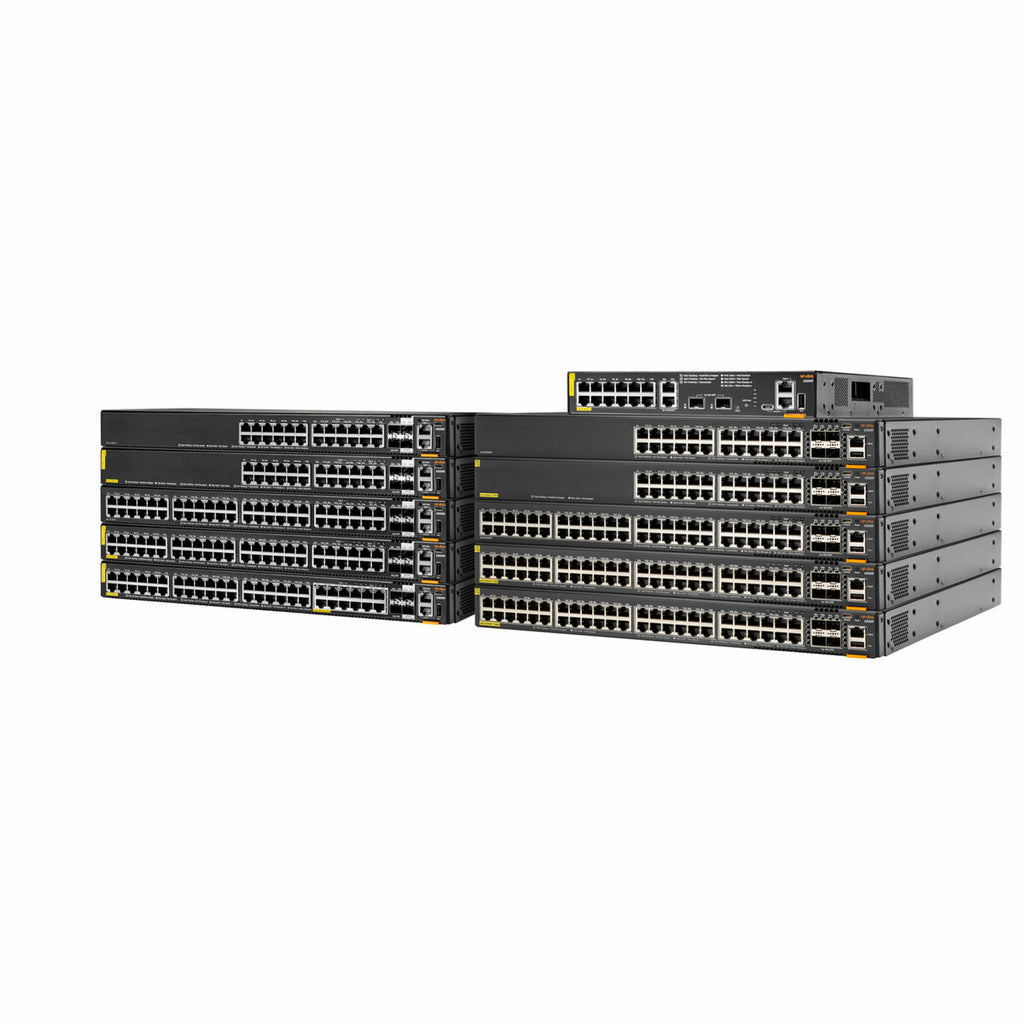

With a fully programmable AOS-CX operating system and the built-in Aruba Network Analytics Engine, this switch offers advanced telemetry, intelligent monitoring, and simplified automation. Stack up to 8 switches using Aruba VSF technology to simplify network growth and management. Whether deploying IoT devices, wireless access points, or edge applications, the CX 6200F delivers speed, visibility, and resilience.
| Specification | Details |
|---|---|
| Product Number | JL725A#B2B |
| Form Factor | Rack-mountable, 1U |
| Switch Type | Layer 3, Managed |
| Ports | 24 x 10/100/1000BASE-T Class 4 PoE4 x 1/10GbE SFP+ uplinks |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Budget | Up to 370W Class 4 PoE |
| Stacking | Up to 8 switches via Aruba Virtual Switching Framework (VSF) |
| Processor | Quad Core ARM Cortex-A72 1.8 GHz |
| Memory | 8 GB DDR4 |
| Flash Storage | 16 GB eMMC |
| Latency | 1 Gbps: 2.28 μs10 Gbps: 1.46 μs |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Management Interfaces | 1 x USB-C Console1 x OOBM1 x USB-A HostBluetooth (via adapter) |
| Power Supply | Fixed 500W AC |
| Input Voltage | 100–120V / 200–240V |
| Power Consumption | 65W (at 230 VAC) |
| Dimensions (HxWxD) | 1.73 x 17.4 x 12.9 in (4.4 x 44.2 x 32.8 cm) |
| Weight | 10.80 lbs (4.90 kg) |
| Software Features | AOS-CX, NAE, NetEdit, REST API, Python automation, Central-ready |
| Use Case | Enterprise edge, SMB, campus, IoT, PoE deployments |
