Description

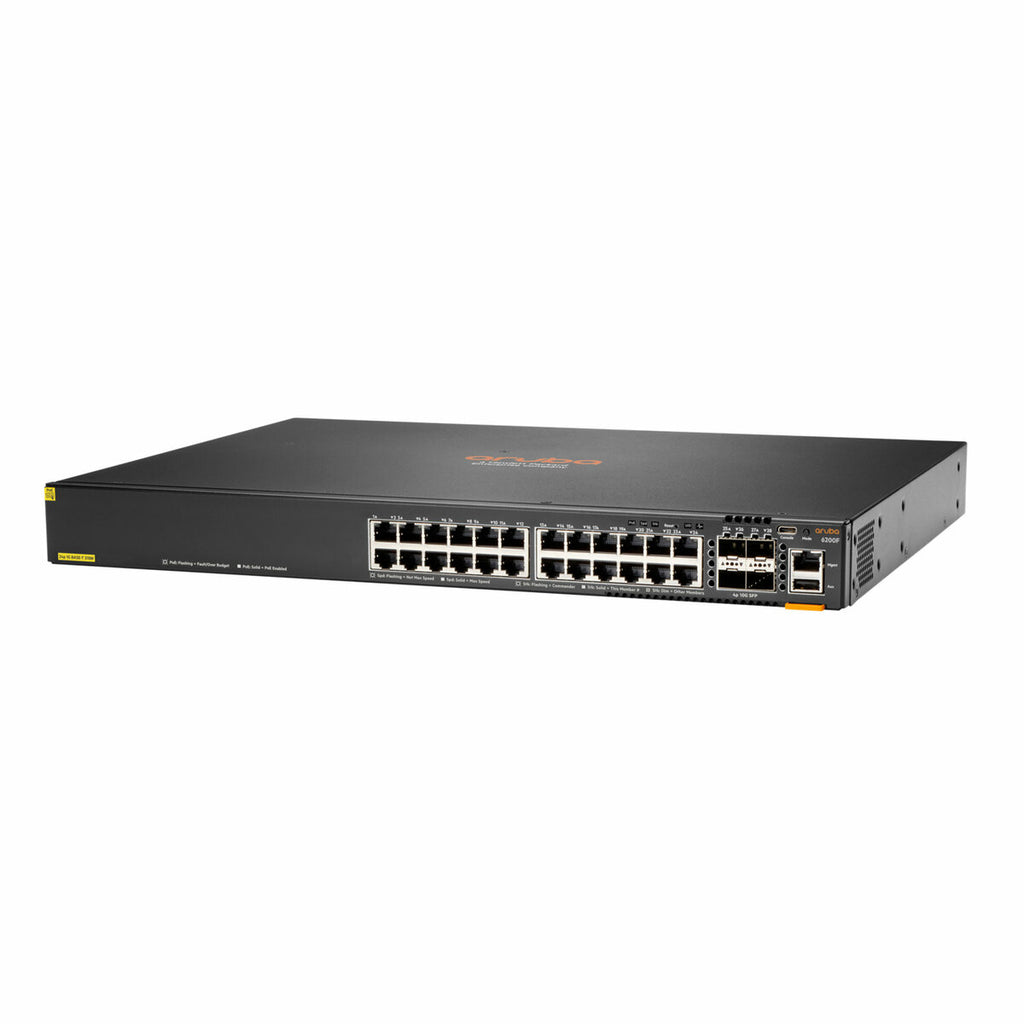

The HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A#ABB) is a next-generation, enterprise-grade Layer 3 managed switch designed to meet the evolving needs of modern campus, branch, and SMB networks. It features 24 Class 4 PoE+ ports and 4 high-speed 1/10G SFP+ uplinks, powered by Aruba’s Gen7 ASIC architecture for high-performance, low-latency data transfer. With support for up to 370W PoE, advanced telemetry, and intelligent automation through the Aruba Network Analytics Engine and REST APIs, this switch simplifies deployment, accelerates troubleshooting, and enables dynamic segmentation for improved security and policy enforcement.
Built for scale, the switch supports Virtual Switching Framework (VSF) stacking of up to 8 members and provides flexible management via Aruba Central, CLI, or a user-friendly GUI. This solution is ideal for deploying IoT devices, wireless APs, and delivering robust performance at the edge of your network.
| Specification | Details |
|---|---|
| Model Number | JL725A#ABB |

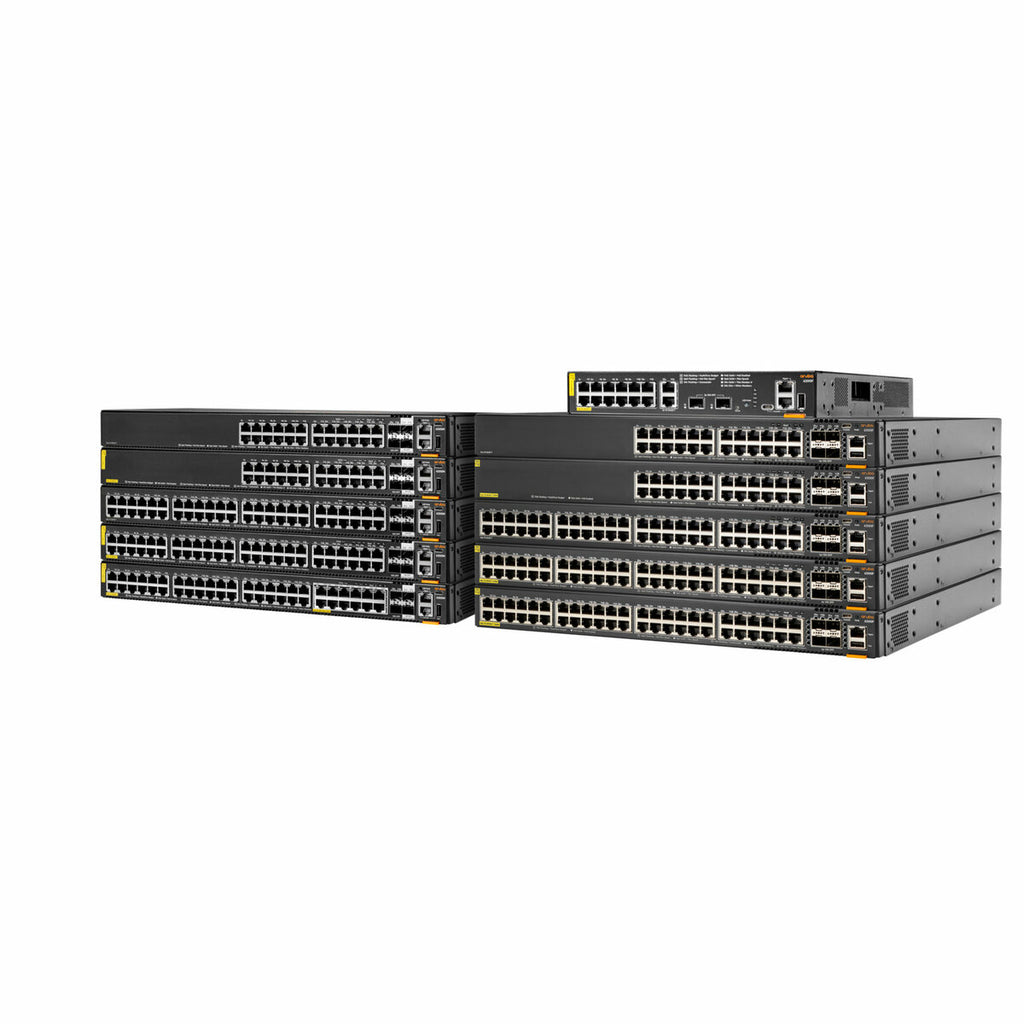

| Product Series | HPE Aruba Networking CX 6200F Series |
| Ports | 24x 10/100/1000BASE-T PoE+ (Class 4), 4x 1/10G SFP+ uplinks |
| PoE Budget | 370W (Class 4 PoE) |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | 1 Gbps: 2.28 μs, 10 Gbps: 1.46 μs |
| Stacking | Up to 8 members with Virtual Switching Framework (VSF) |
| Processor | Quad Core ARM Cortex-A72 @ 1.8 GHz |
| Memory / Storage | 8 GB DDR4 / 16 GB eMMC |
| Management Interfaces | 1x USB-C Console, 1x OOBM, 1x USB-A, Bluetooth (via adapter for mobile app) |
| Mounting | Rack-mountable (1U) |
| Power Supply | Fixed 500W Power Supply |
| Input Voltage | 100V–120V / 200V–240V |
| Power Consumption (Idle) | 65W at 230 VAC |
| Dimensions (W x D x H) | 17.4 x 12.9 x 1.73 in |
| Weight | 10.80 lbs |
