Description

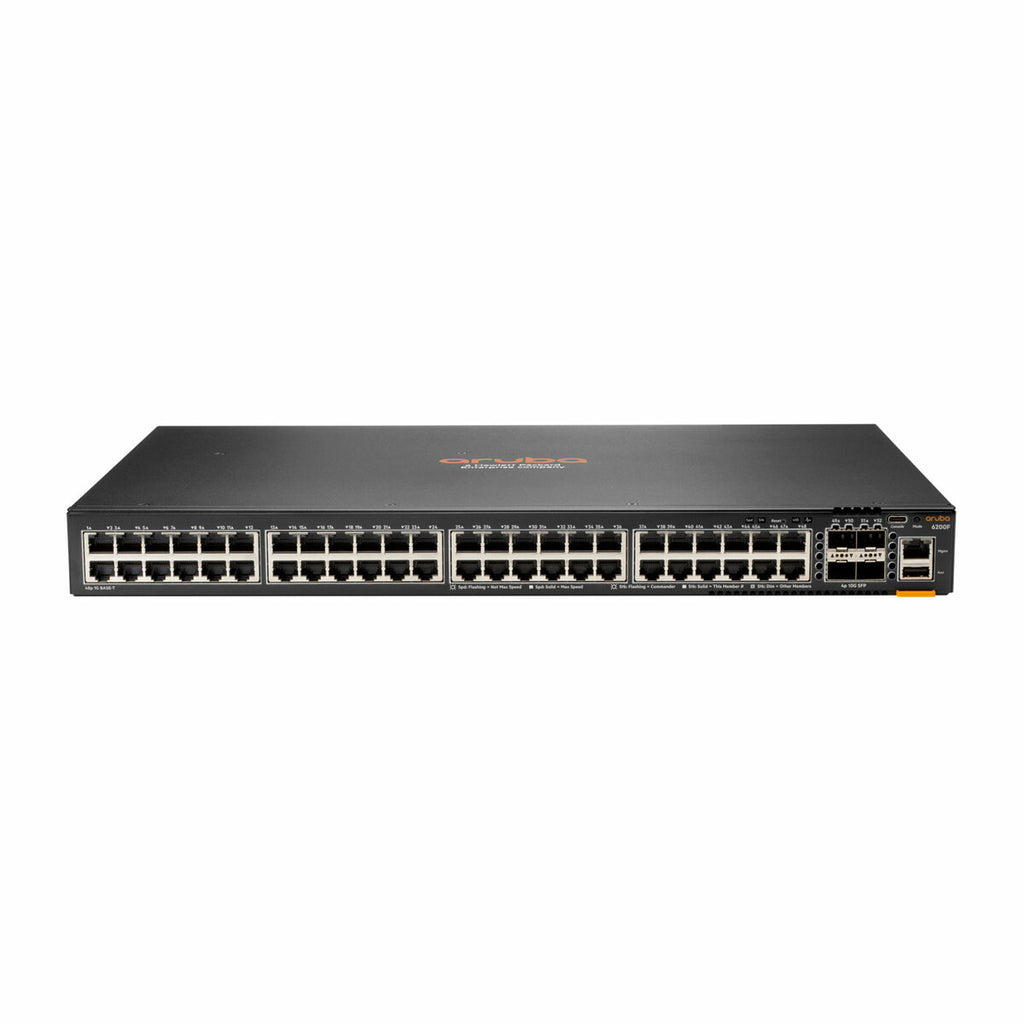

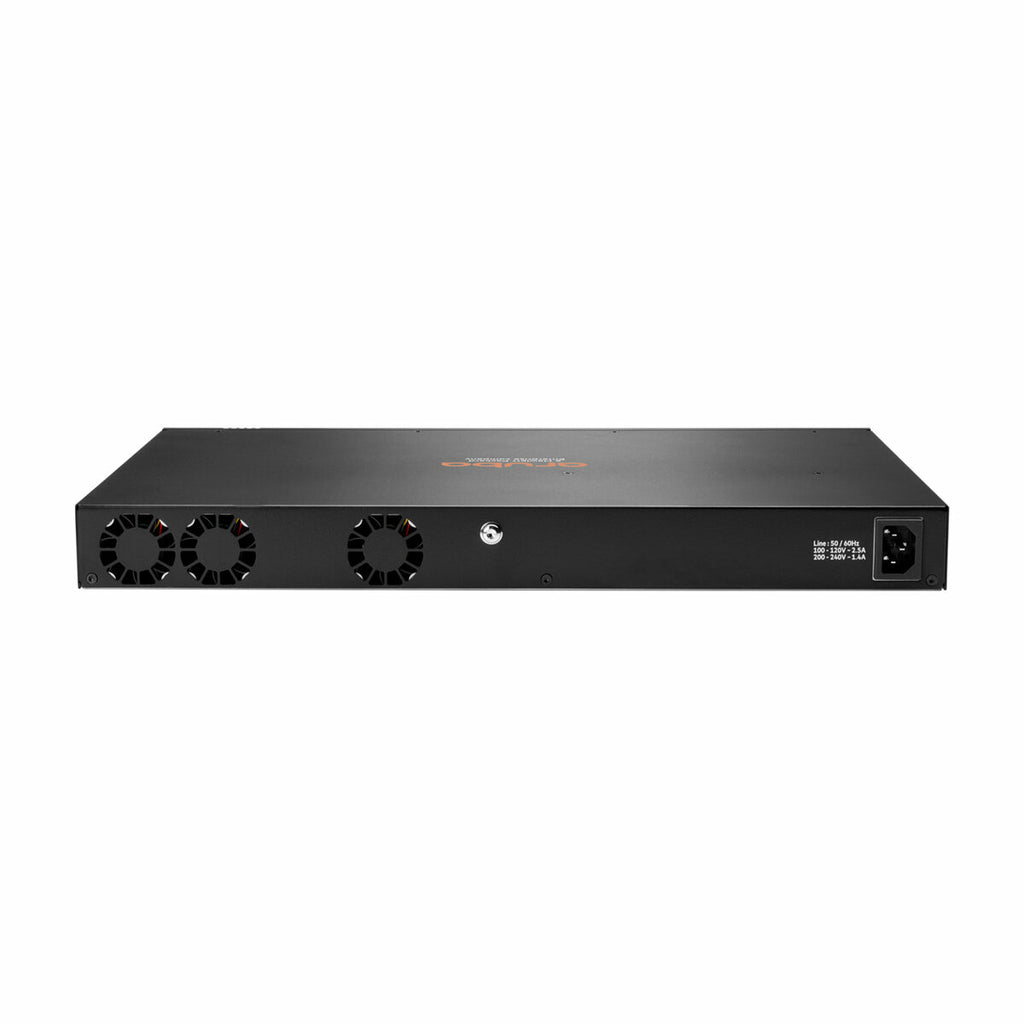

The HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726A#ACF) is a high-performance, Layer 3, stackable access switch designed for enterprise edge, branch offices, and SMB networks. With 48 Gigabit PoE+ ports and 4 SFP+ uplinks, it delivers powerful, scalable, and intelligent networking capabilities. Built on Aruba’s next-gen ASIC architecture and AOS-CX OS, this switch provides reliable wired connectivity for IoT, mobile, and cloud applications.
Key Features:
-
48x 10/100/1000BASE-T ports with PoE+
-
4x 1/10GbE SFP+ uplink ports
-
Advanced Layer 3 routing with static and OSPF
-
Stack up to 8 switches with Aruba VSF
-
Integrated CX Network Analytics Engine for intelligent monitoring
-
Supports up to 176 Gbps switching capacity
-
Automation via REST APIs, Python, and Switch Multi-Edit Software
-
Ideal for powering access points, cameras, and IoT devices
| Specification | Details |
|---|---|
| Model Number | JL726A#ACF |
| Series | HPE Aruba Networking CX 6200F Series |
| Port Configuration | 48x 10/100/1000BASE-T (PoE+) + 4x 1/10G SFP+ |
| Layer Support | Layer 3 |
| Switching Capacity | 176 Gbps |
| Throughput | Up to 130.9 Mpps |
| Latency | 1Gbps: 2.28 µs / 10Gbps: 1.46 µs |
| Stacking | Up to 8 switches via VSF |
| Memory/Processor | Quad-Core ARM Cortex A72 @ 1.8GHz / 8GB DDR4 / 16GB eMMC |
| Power Supply | Fixed 200W PSU |
| Power Consumption | 68W @ 230 VAC |
| Management Interfaces | USB-C Console, OOBM, USB-A Host, Bluetooth Adapter |
| Dimensions (HxWxD) | 1.73 x 17.4 x 12.9 in (44 x 442 x 328 mm) |
| Mounting | Rack-mountable |
