Description
The HPE Aruba Networking CX 6200M 24G Class4 PoE 4SFP+ Switch (R8Q68A) is a next-generation stackable Layer 3 access switch designed for enterprise edge, branch offices, and SMB deployments. Delivering enterprise-class performance with robust QoS, ACLs, and advanced telemetry, this switch simplifies deployment and management with support for HPE Aruba’s cloud-native CX OS and Network Analytics Engine (NAE).

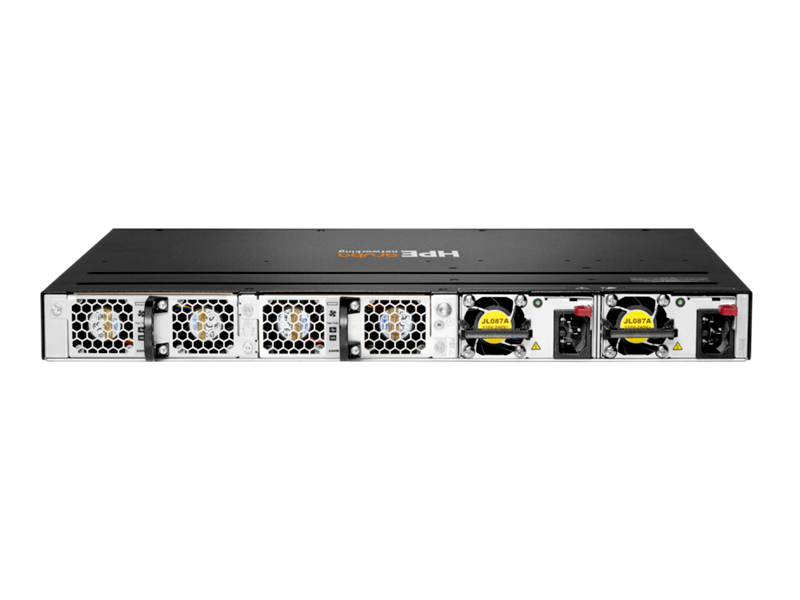

This 1U rackmount switch provides 24x 10/100/1000BASE-T Class 4 PoE ports (30W per port) and 4x 1G/10G SFP+ uplinks with support for MACSec 256 and LRM optics. It includes modular, hot-swappable power supply and fan support, up to 740W of PoE, and VSF stacking for up to 8 members—ideal for IoT-ready, secure, and scalable networks.
| Specification | Details |
|---|---|
| Product Code | R8Q68A |
| Ports | 24x 10/100/1000BASE-T PoE (Class 4, up to 30W per port) |
| 4x SFP+ 1/10G uplinks (2x LRM; 2x LRM/MACSec 256) | |
| PoE Standards | IEEE 802.3af, 802.3at |
| PoE Budget | 740W (max with supported PSUs) |
| Stacking Support | Up to 8 members with VSF (Virtual Switching Framework) |
| Console Ports | 1x RJ-45 Console, 1x USB-C Console |
| Other Interfaces | 1x USB Type-A Host, 1x OOBM port |
| Power Supply Slots | 2x hot-swappable (1 required, ordered separately: JL086A, JL087A) |
| Fan Tray | Includes 1x fan tray (field-replaceable and hot-swappable) |
| CPU | Quad Core ARM Cortex-A72 @ 1.8 GHz |
| Memory / Storage | 8 GB DDR4 / 16 GB eMMC |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Latency | 1G: 2.28 μSec / 10G: 1.46 μSec |
| Power Consumption | 76W (at 230 VAC) |
| Input Voltage | 100V–120V / 200V–240V |
| Dimensions (H x W x D) | 4.39 x 44.25 x 38.38 cm |
| Weight | 6.01 kg |
| Mounting | Rack-mountable |
