Description

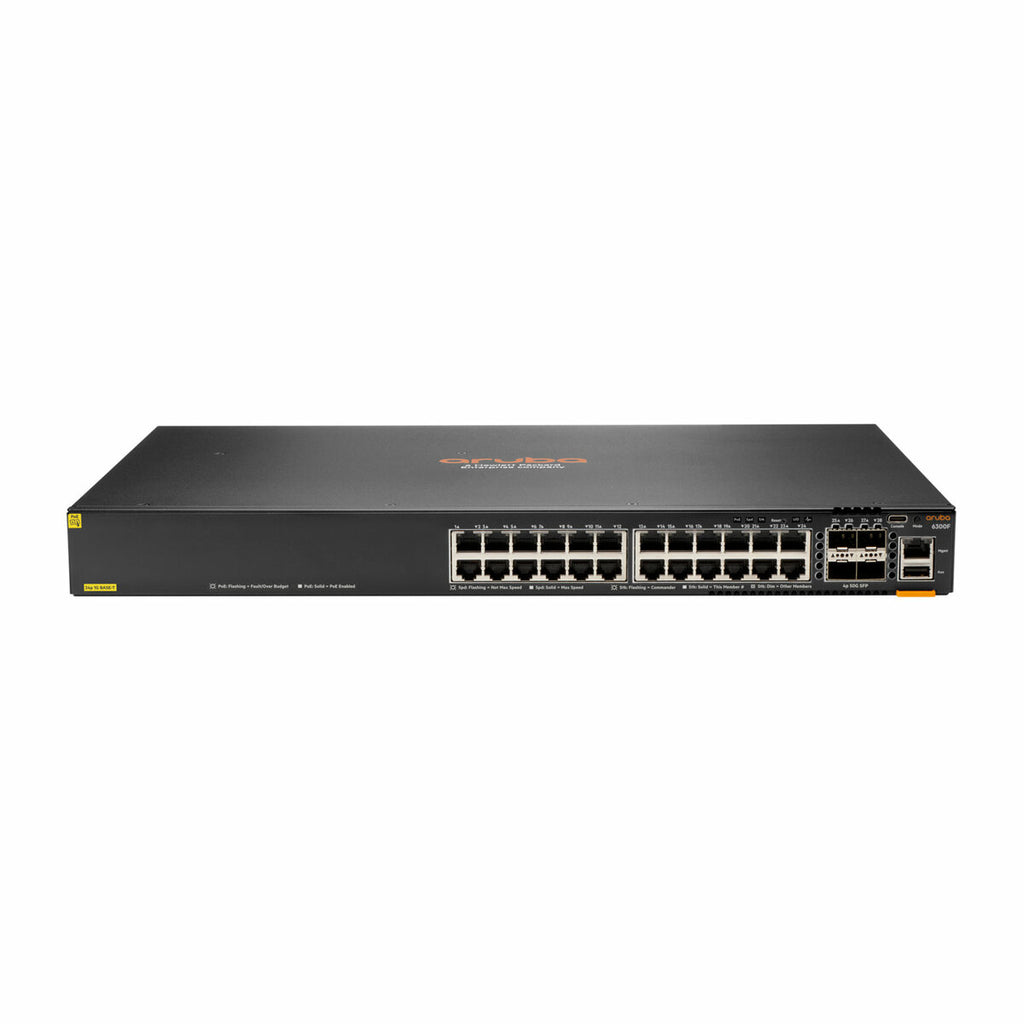

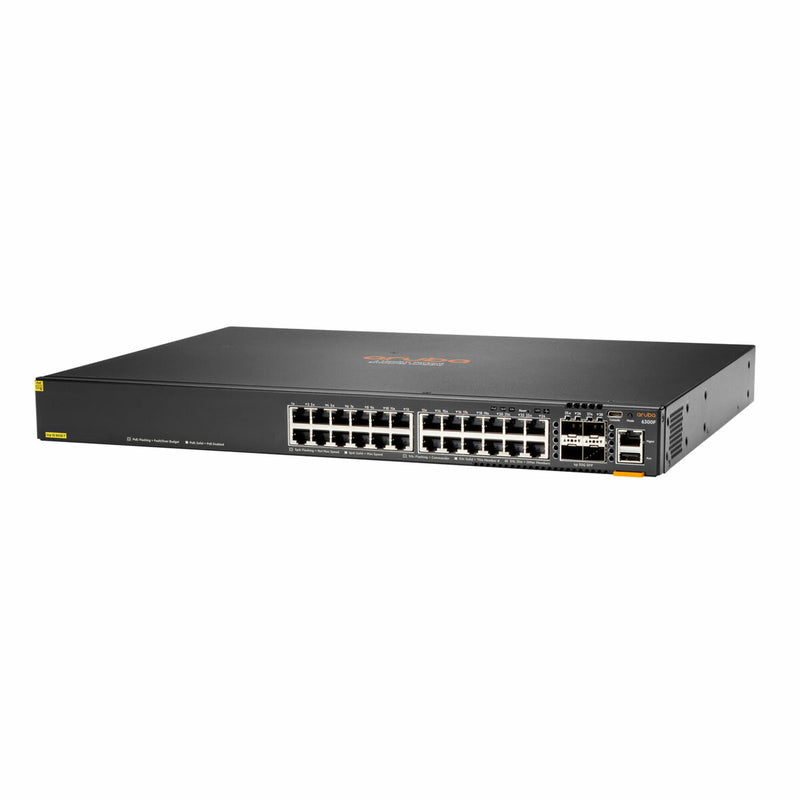

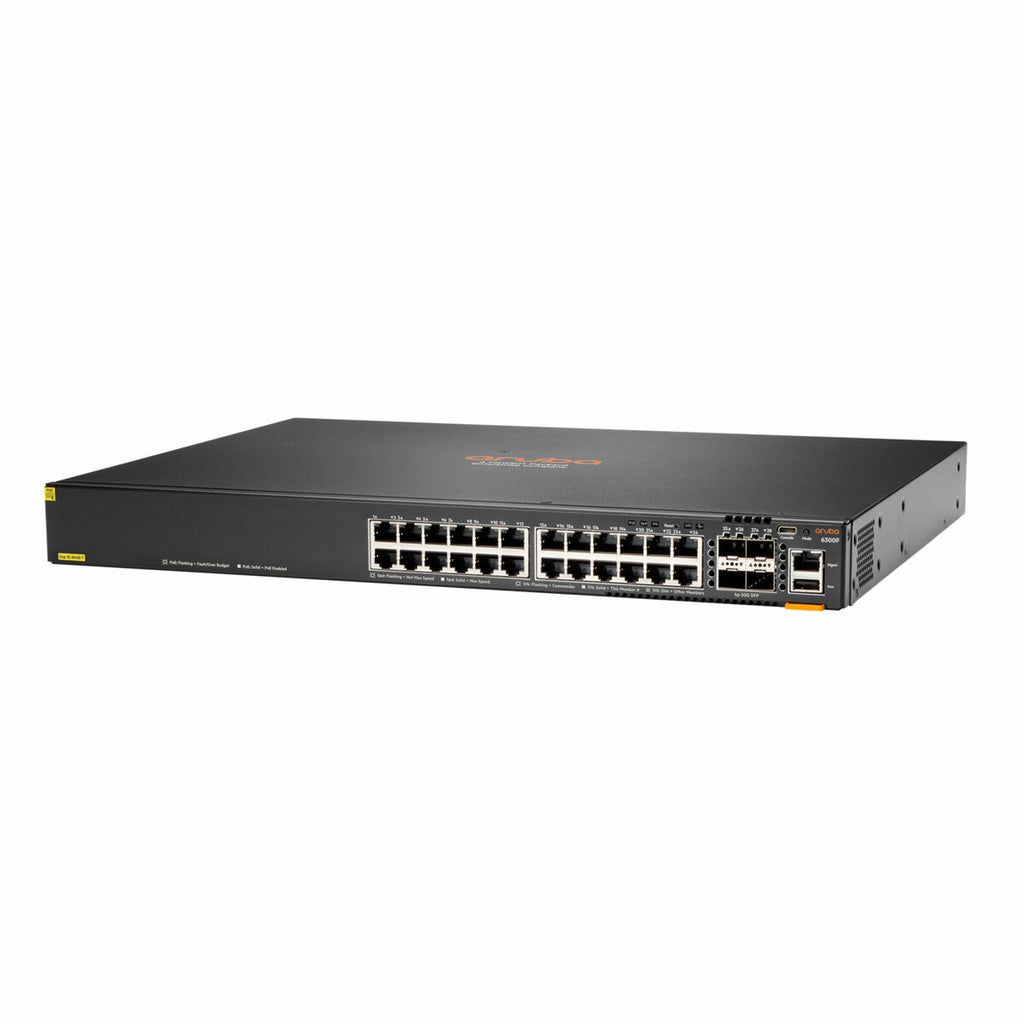

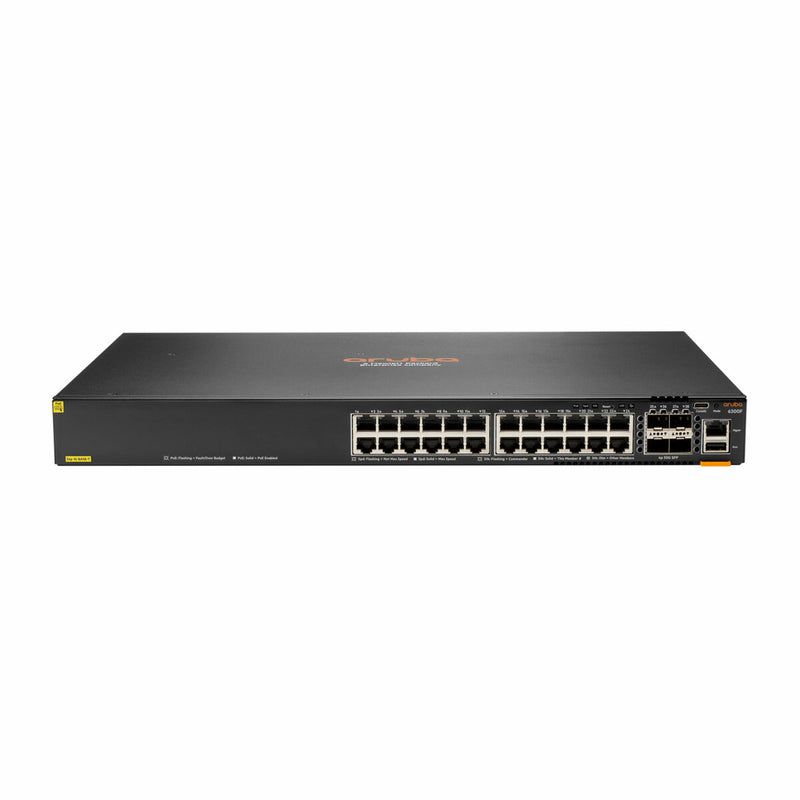

The HPE Aruba Networking CX 6300F JL666A#B2B is a next-generation Layer 3 switch designed for modern enterprise networks that demand high availability, intelligent management, and flexible stacking. Featuring 24 x 10/100/1000 PoE+ ports and 4 x 50G SFP56 uplink ports, this managed switch delivers powerful performance, robust security, and operational simplicity for campus, branch, and data center edge environments.
Powered by a fully programmable OS and Gen7 ASIC architecture, it supports advanced Layer 3 features including OSPF, BGP, VXLAN, and VRF. With front-to-back airflow, rack-mountable design, and TAA compliance, this switch is ideal for high-density deployments and future-ready applications. Its integration with HPE Aruba Networking Central, NAE, and Switch Multi-Edit Software ensures seamless automation, analytics, and centralized management.
| Feature | Specification |
|---|---|
| Ports | 24 x 10/100/1000Base-T PoE+ (up to 30W per port) 4 x 1G/10G/25G/50G SFP56 uplink ports |
| PoE Standards | IEEE 802.3af, 802.3at |
| Console & Management Ports | 1 x USB-C Console Port 1 x USB Type-A Host Port 1 x OOBM Port |
| Stacking | Supports up to 10 switches via VSF stacking |
| PoE Budget | Max 370W |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Latency | 1Gbps: 2.28μs 10Gbps: 1.46μs 25Gbps: 1.90μs 50Gbps: 3.49μs |
| Processor & Memory | Quad Core Arm Cortex A72 @ 1.8GHz 8 GB DDR4 32 GB eMMC |
| Packet Buffer | 8 MB / 16 MB / 32 MB (varies by model) |
| Management Features | HPE Aruba Central, AirWave, CLI, SNMP v2c/v3, RMON, Switch Multi-Edit Software |

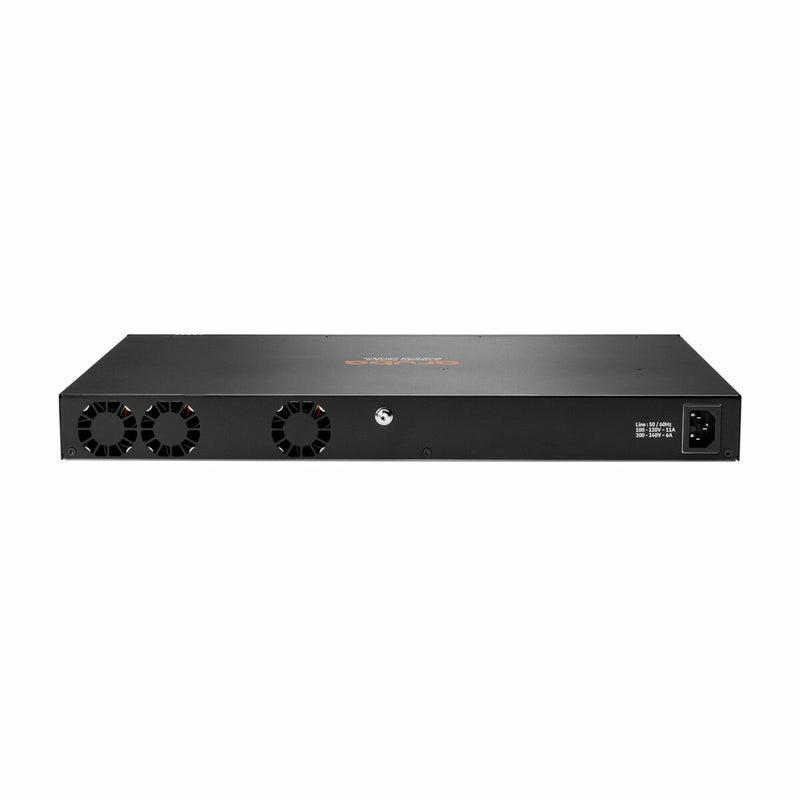

| Airflow | Front-to-back airflow |
| Mounting | Rack-mountable (1U) |
| Input Voltage | 100–120V / 200–240V (Fixed PSU) |
| Power Consumption | Idle: 52W Max: 67W |
| Dimensions | 1.73 x 17.4 x 12.9 in (H x W x D) |
| Weight | 10.91 lbs |
| Compliance | TAA Compliant |
