Description

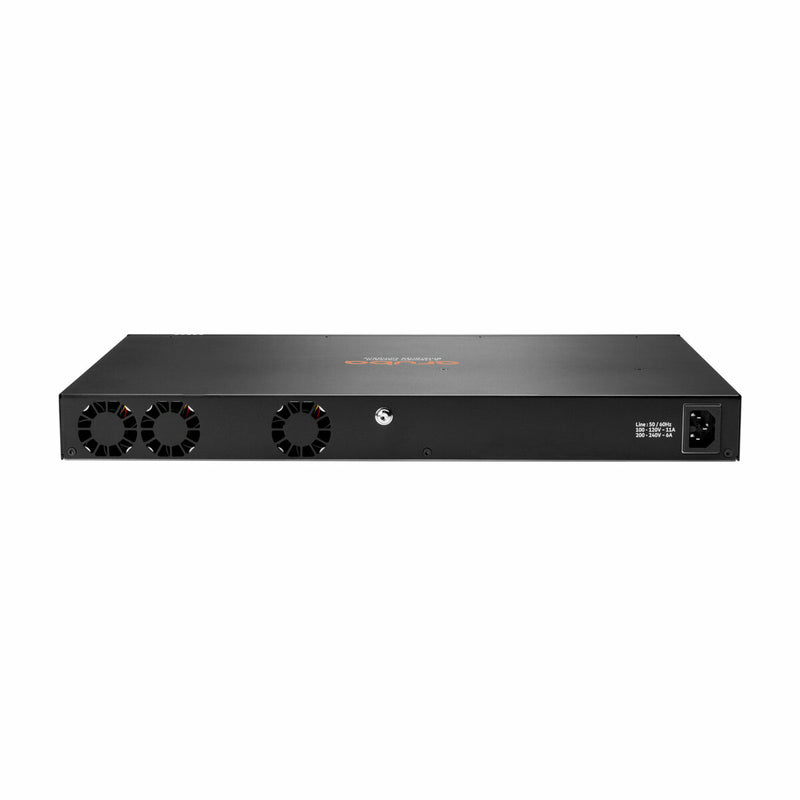

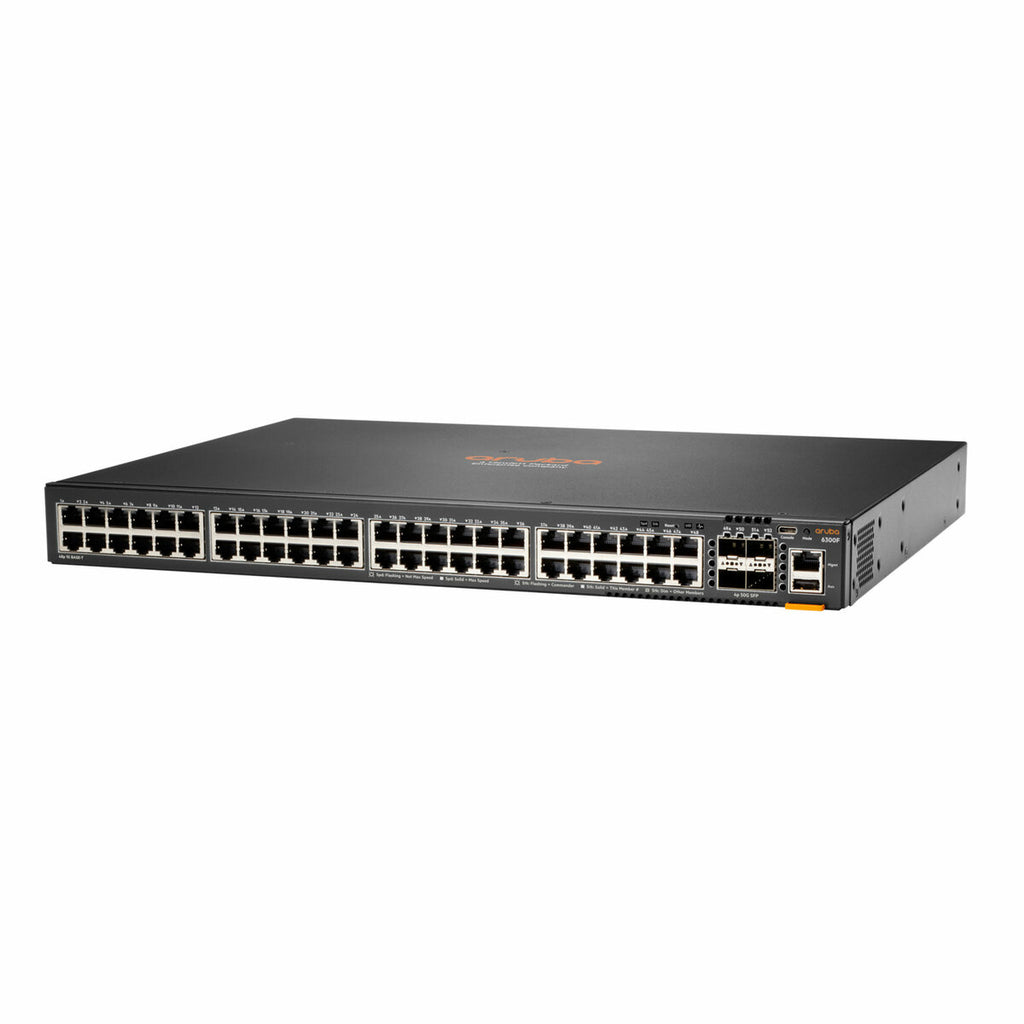

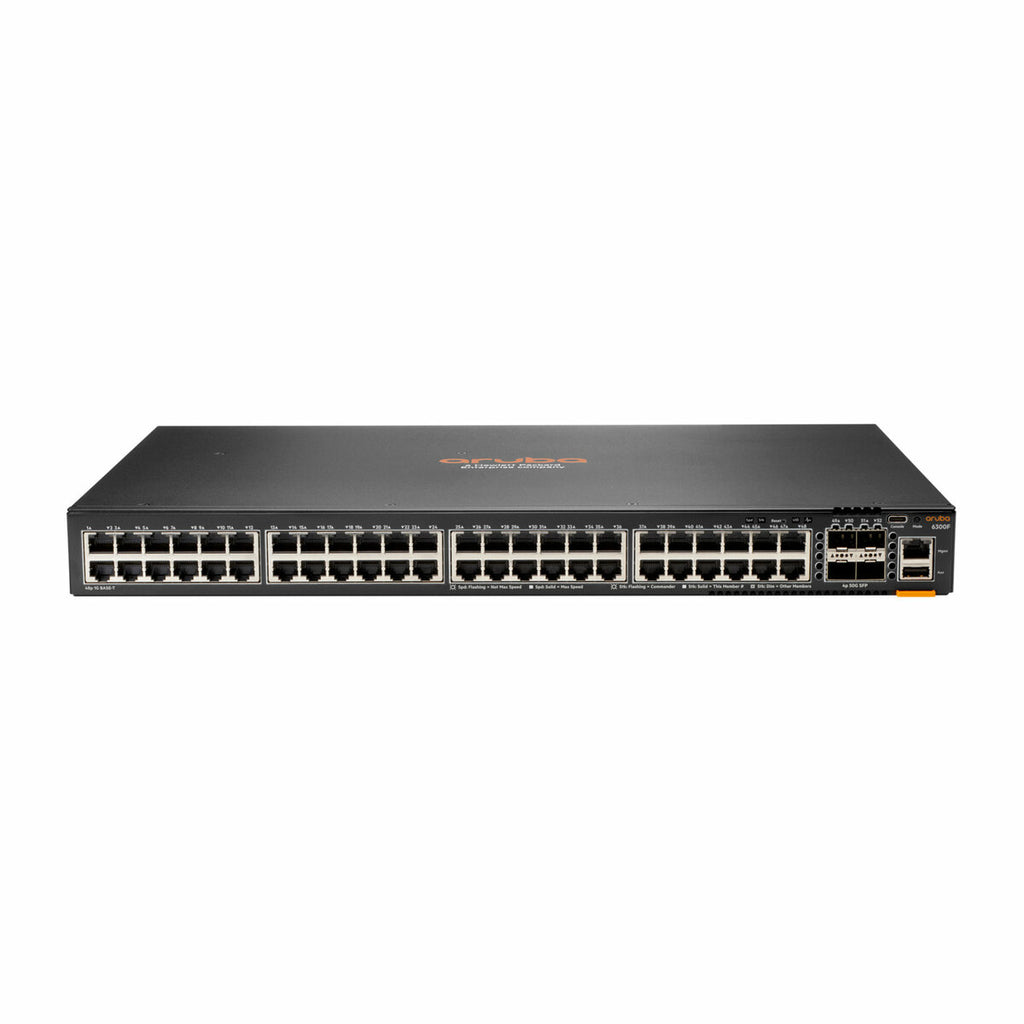

The HPE Aruba Networking CX 6300F Switch (JL667A#ABB) is a high-performance, stackable Layer 3 managed switch designed for enterprise access, aggregation, and top-of-rack data center deployments. Featuring 48 10/100/1000BASE-T ports and 4 high-speed uplink/stacking ports supporting 1/10/25/50GbE SFP56, this switch delivers cloud-native flexibility, intelligent automation, and robust security.
With support for HPE Aruba Networking Central, VSF stacking of up to 10 units, and integrated Network Analytics Engine (NAE), it ensures efficient operations and real-time monitoring. It also includes advanced Layer 3 features like BGP, OSPF, VXLAN, and robust QoS.
| Feature | Details |
|---|---|
| Model Number | JL667A#ABB |
| Ports | 48 × 10/100/1000BASE-T4 × 1G/10G/25G/50G SFP56 uplink/stacking ports |
| Layer | Layer 3 |
| Switch Type | Managed |
| Stacking | Up to 10 switches via VSF |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| PoE Support | IEEE 802.3af, 802.3at |
| Latency | 1Gbps: 2.28μs10Gbps: 1.46μs25Gbps: 1.90μs50Gbps: 3.49μs |
| Memory & Processor | Quad-core ARM Cortex A72 @ 1.8GHz8GB DDR4 RAM32GB eMMC |
| Management Interfaces | 1 × USB-C console1 × USB-A host1 × OOBM port |
| Management Options | HPE Aruba Central, AirWave, CLI, SNMP v2c/v3, RMON, Multi-Edit Software |
| Cooling Direction | Front and side to back |
| Mounting | Rack-mountable |
| Power Supply | Fixed PSU: 100V–120V / 200V–240V |
| Power Consumption | Idle: 52WFull load: 74W |
| Dimensions (H × W × D) | 1.73 × 17.4 × 12.9 inches |
