Description

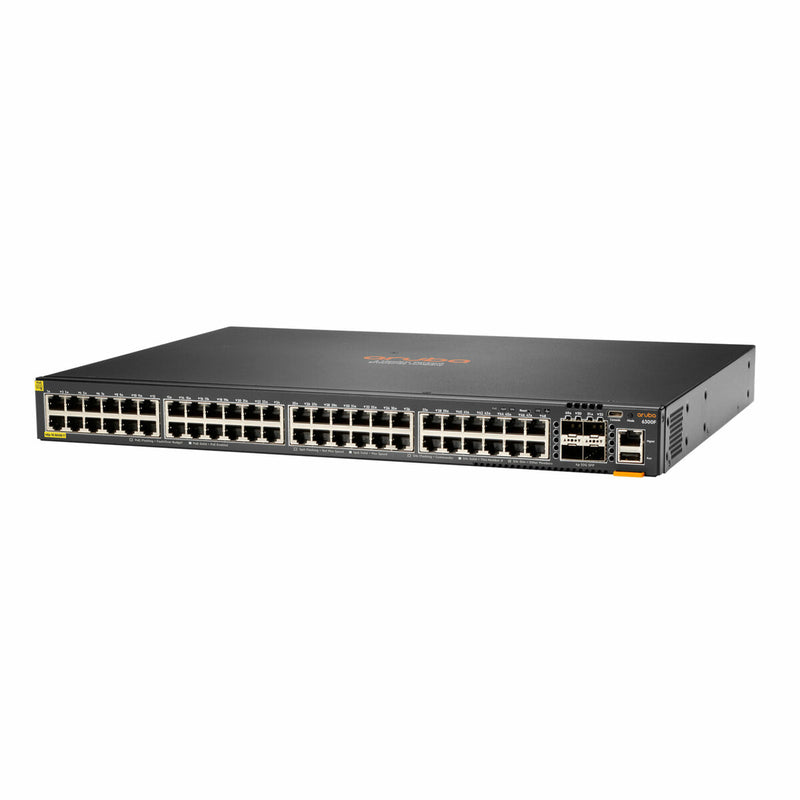

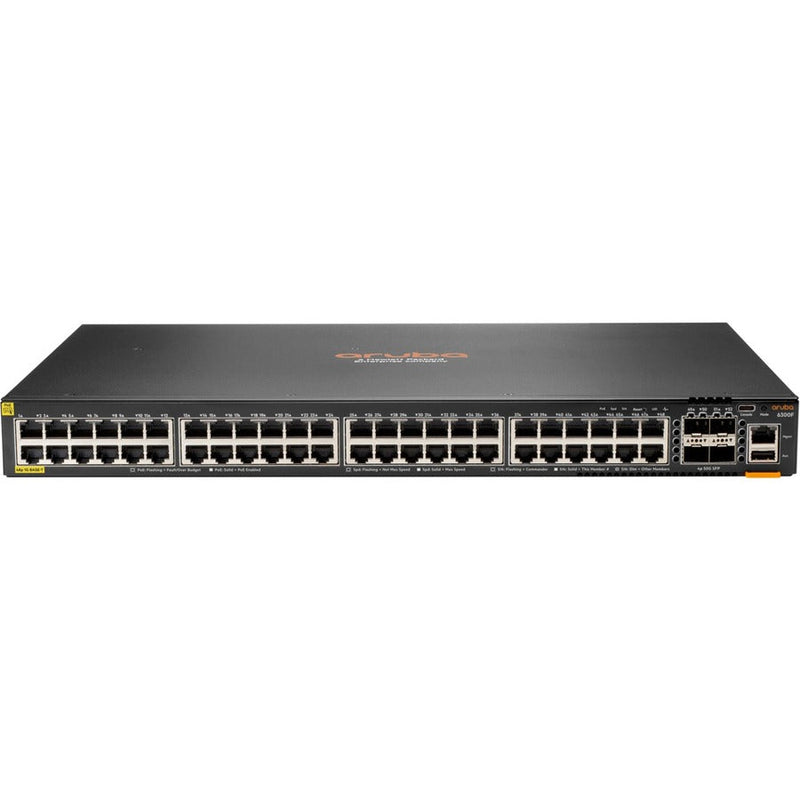

The HPE Aruba Networking CX 6300F Switch (JL665A#B2B) is a next-generation, enterprise-class Layer 3 switch designed for access, aggregation, and top-of-rack (ToR) deployments. Featuring 48 x 10/100/1000BASE-T PoE+ ports and 4 x 50GbE SFP56 uplinks, it provides intelligent edge connectivity for high-density APs, IoT, and demanding enterprise applications.
With cloud-native Aruba AOS-CX, advanced telemetry, and the Network Analytics Engine (NAE), the CX 6300F enables full programmability, automated monitoring, and scalable network performance. It supports Virtual Stacking Framework (VSF) for stacking up to 10 switches and delivers robust security, high availability, and streamlined management through Aruba Central and the Switch Multi-Edit Software.
Ideal for modern digital workplaces, the JL665A#B2B switch supports front-to-back airflow, TAA compliance, and Class 4 PoE power delivery.
| Specification | Details |
|---|---|
| Model Number | JL665A#B2B |
| Switching Layer | Layer 3 |
| Ports | 48 Γ 10/100/1000BASE-T PoE+ (Class 4), 4 Γ SFP56 50GbE uplink ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at (up to 30W per port) |
| Stacking | Up to 10 switches with HPE Aruba VSF (front-plane stacking) |

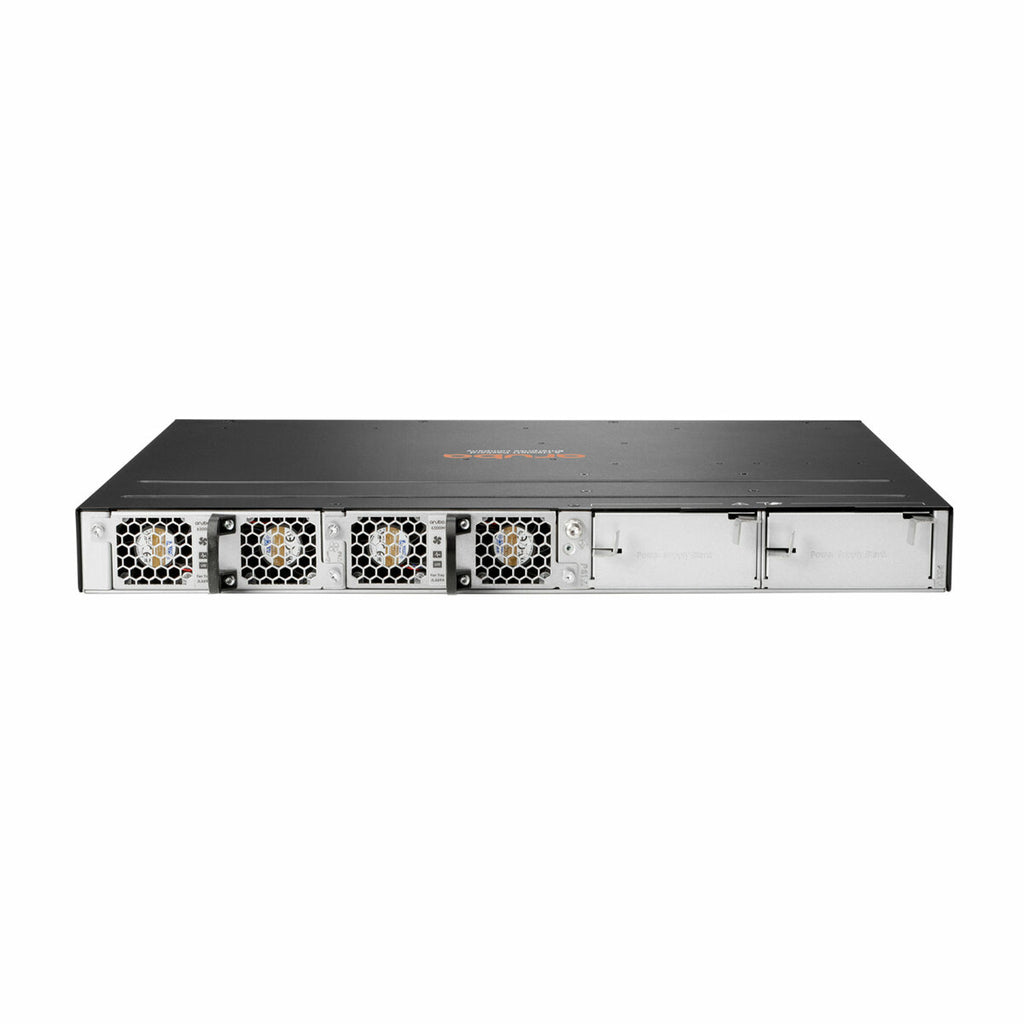

| Airflow | Front-to-back |
| Mounting | Rack-mountable |
| Console Ports | 1 x USB-C Console, 1 x OOBM Port, 1 x USB Type-A |
| Memory & Processor | Quad-Core ARM Cortex-A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC |
| Packet Buffer | 8/16/32 MB (model-dependent) |
| Latency | 1Gbps: 2.28ΞΌs, 10Gbps: 1.46ΞΌs, 25Gbps: 1.90ΞΌs, 50Gbps: 3.49ΞΌs |
| Throughput | 369 Mpps |
| Switching Capacity | 496 Gbps |
| PoE Power Budget | Up to 740W |
| Management Tools | Aruba Central, CLI, SNMP v2c/v3, RMON, Aruba Switch Multi-Edit Software |
| Power Input | Fixed PSU: 100V-120V / 200V-240V AC |
| Power Consumption | Idle: 63W, Full Load: 86W |
| Compliance | TAA Compliant |
