Description

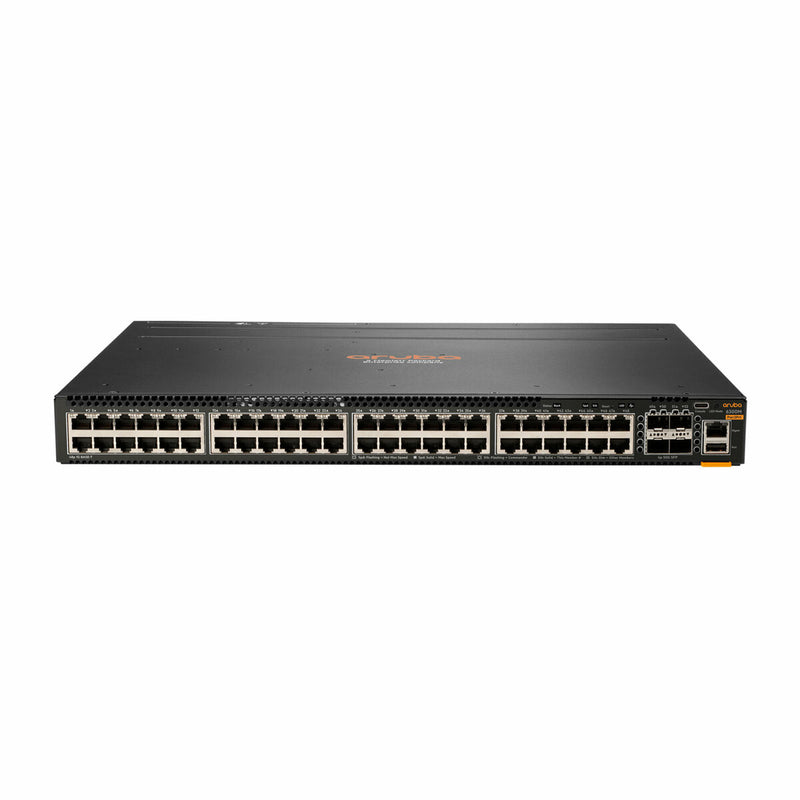

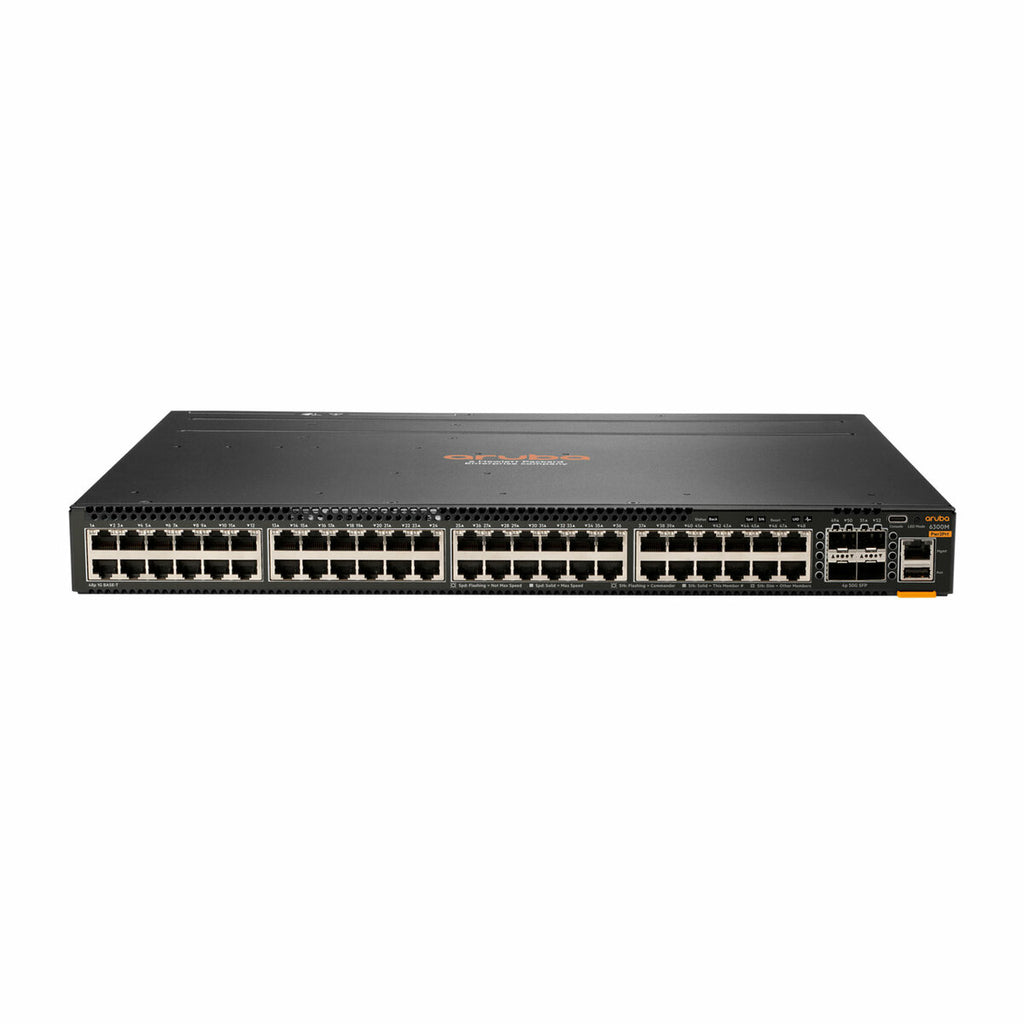

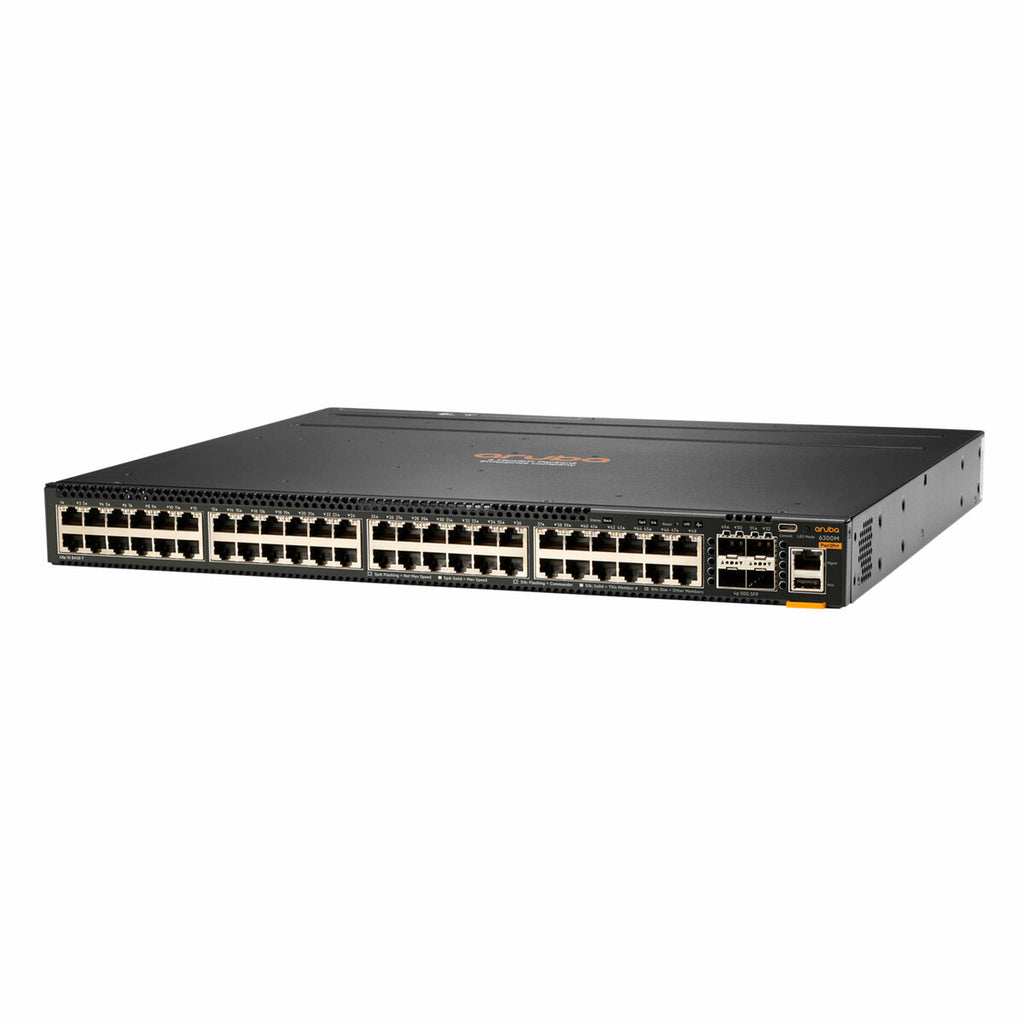

The HPE Aruba Networking CX 6300M JL762A is a next-generation, stackable Layer 3 managed switch designed for performance-intensive environments, including enterprise access, aggregation, and top-of-rack (ToR) deployments. Equipped with 48x 1GbE ports and 4x multi-speed SFP56 uplink/stacking ports, it offers flexibility with support for 10/25/50GbE uplinks and power-to-port airflow, ideal for data center cooling designs.
This bundle includes 2 fan trays and 1 PSU for out-of-the-box deployment. The switch features HPE’s Gen7 ASICs, enabling wire-speed switching, low-latency performance, and intelligent analytics with the Aruba Network Analytics Engine (NAE). Integrated with HPE Aruba Networking Central, it supports seamless management, dynamic segmentation, and high-security capabilities such as MACsec-256, VXLAN, and role-based access control.
Whether you’re modernizing your edge, securing IoT, or managing high-bandwidth traffic, the CX 6300M series ensures scalable, automated, and high-performance networking.
| Specification | Details |
|---|---|
| Model Number | JL762A#ABA |
| Product Type | Layer 3 Managed Switch |
| Ports | 48 x 10/100/1000BASE-T + 4 x 1G/10G/25G/50G SFP56 uplink/stacking ports |
| Management | Aruba Central, Multi-Edit Software, CLI, SNMP, AirWave |
| Stacking | Up to 10 switches, 200–400 Gbps stacking throughput |
| ASIC Architecture | Gen7 ASIC, wire-speed switching, low-latency |
| MACsec Encryption | 256-bit MACsec supported |
| Power Supply | 1x PSU included (JL760A), 100–240V |

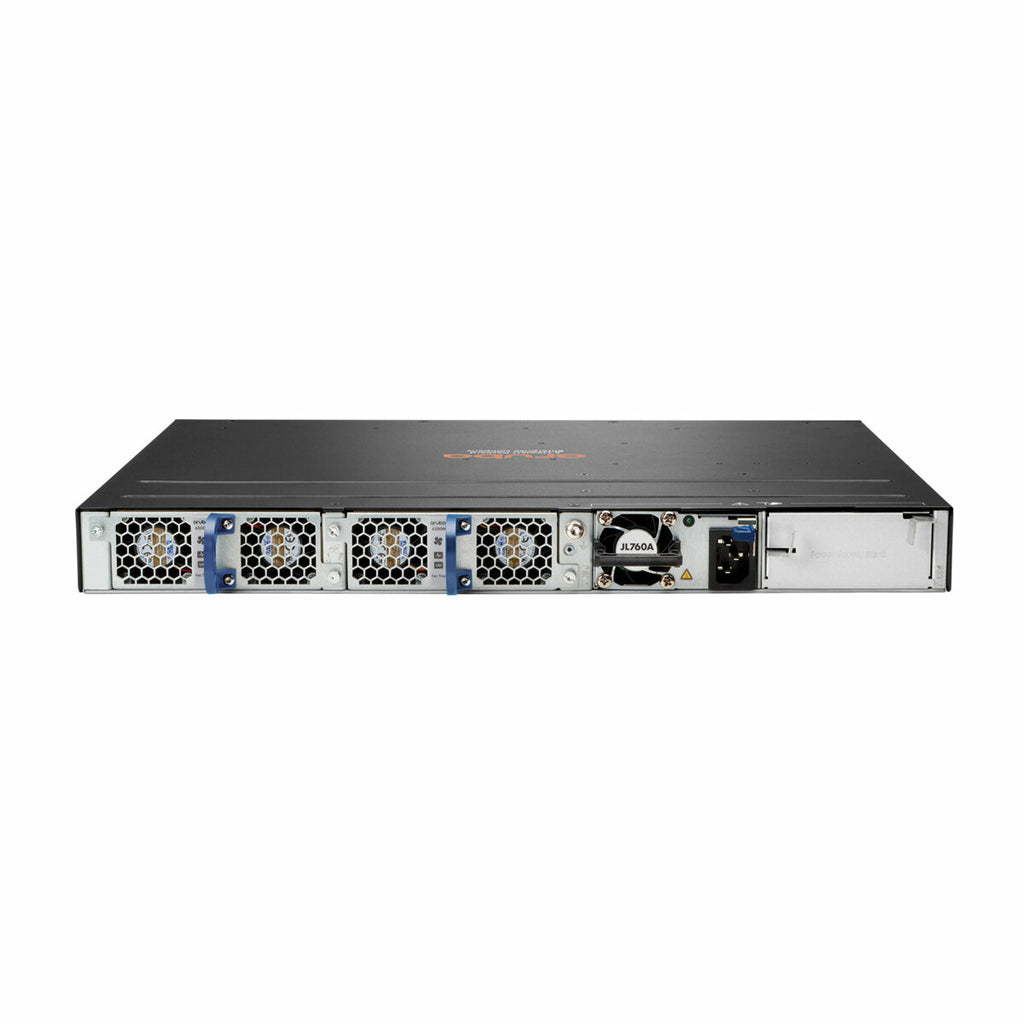

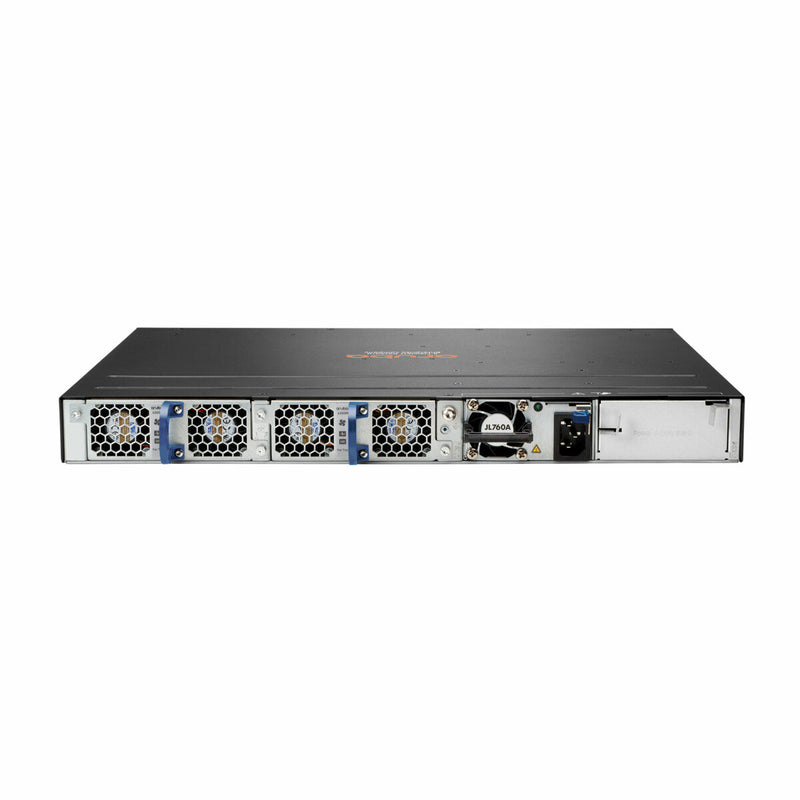

| Cooling | Power-to-Port airflow, 2 fan trays included |
| Form Factor | Rack-mountable, 1U |
| Console Ports | 1x USB-C, 1x OOBM, 1x USB Type-A host port |
| Latency | 1G: 2.28μs, 10G: 1.46μs, 25G: 1.90μs, 50G: 3.49μs |
| Throughput | 369 Mpps |
| Switching Capacity | 496 Gbps |
| Memory | Quad-core ARM Cortex-A72 @ 1.8GHz, 8GB DDR4, 32GB eMMC |
| Buffer Memory | 8MB / 16MB / 32MB depending on model |
| Compliance | TAA Compliant |
| Dimensions (WxDxH) | 17.4 x 15.2 x 1.73 in (44.2 x 38.6 x 4.4 cm) |
| Weight | 12.5 lbs (1 PSU), 13.8 lbs (2 PSUs) |
