Description

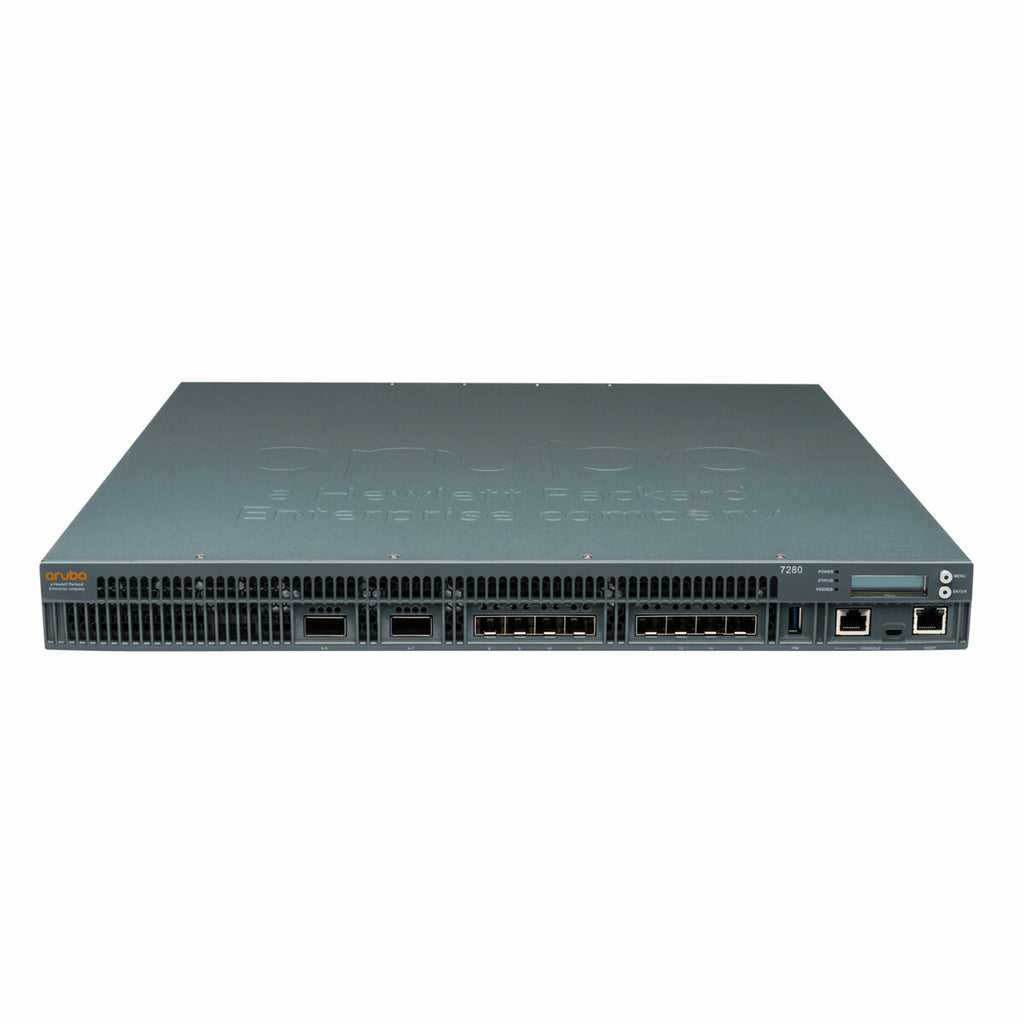

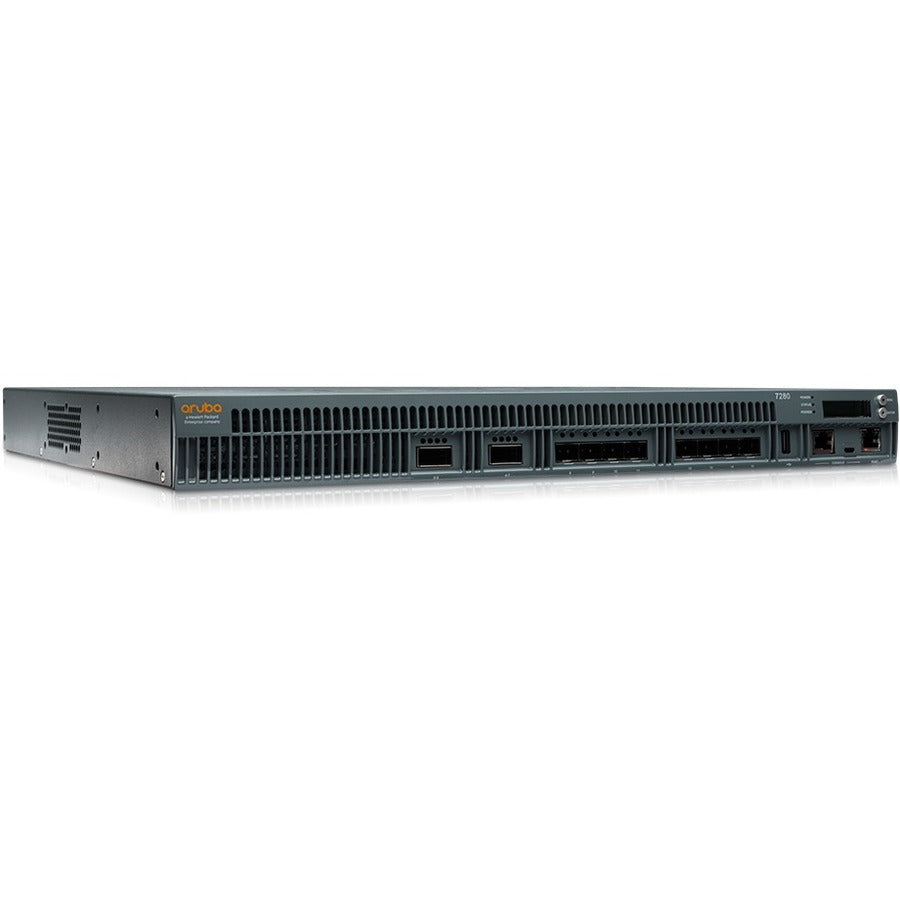

The HPE Aruba Networking 7280 Mobility Controller (JX915A) is a high-performance, TAA-compliant controller engineered for large-scale enterprise and campus WLAN environments. It centralizes network control, optimizes AP performance, and enhances client roaming. With support for up to 32,728 users or client devices, 2,048 APs, and 100 Gbps throughput, this 1U rackmount controller provides robust scalability and security.
Integrated with ArubaOS and managed via Aruba Central or Mobility Conductor, it delivers enhanced security, SD-WAN capabilities, RF optimization, and application awareness for over 3,800 applications. The Aruba 7280 features 8x 10GBASE-X SFP+ and 2x 40G QSFP+ ports, and is ideal for high-density indoor or distributed enterprise deployments.
| Specification | Details |
|---|---|
| Model Number | JX915A |
| Device Type | Network Management Controller |
| Form Factor | 1U Rack-Mountable |
| Ports | 8x 10GBASE-X SFP+, 2x 40G QSFP+ |
| Max Throughput | 100 Gbps |
| User/Client Support | Up to 32,728 |
| Access Point Support | Up to 2,048 |
| Firewall Sessions | Up to 2 million |
| Standards Supported | 802.11ax (Wi-Fi 6), Wi-Fi 6E, Wi-Fi 7, WPA3, Enhanced Open™ |
| Security | Dynamic Segmentation, Policy Enforcement Firewall |
| Power Input Options | 100–240V AC (350W or 550W) or DC -48 to -60V (350W) |
| Power Consumption | 240 Watts |
| Heat Dissipation | Max 819 BTU/hour |
| Management | Aruba Central, Mobility Conductor, Zero-Touch Provisioning |
| Certifications | FCC, CE, IC, VCCI, EN/IEC 61000 series, UL, Anatel, NOM, MIC |
| Dimensions (WxDxH) | 18 x 16 x 2 in (45.7 x 40.6 x 5.1 cm) |
| Weight | 19 lbs (8.6 kg) |
| Operating Environment | Enterprise Campus, Large Branch, High-Density Indoor Deployments |
