Description

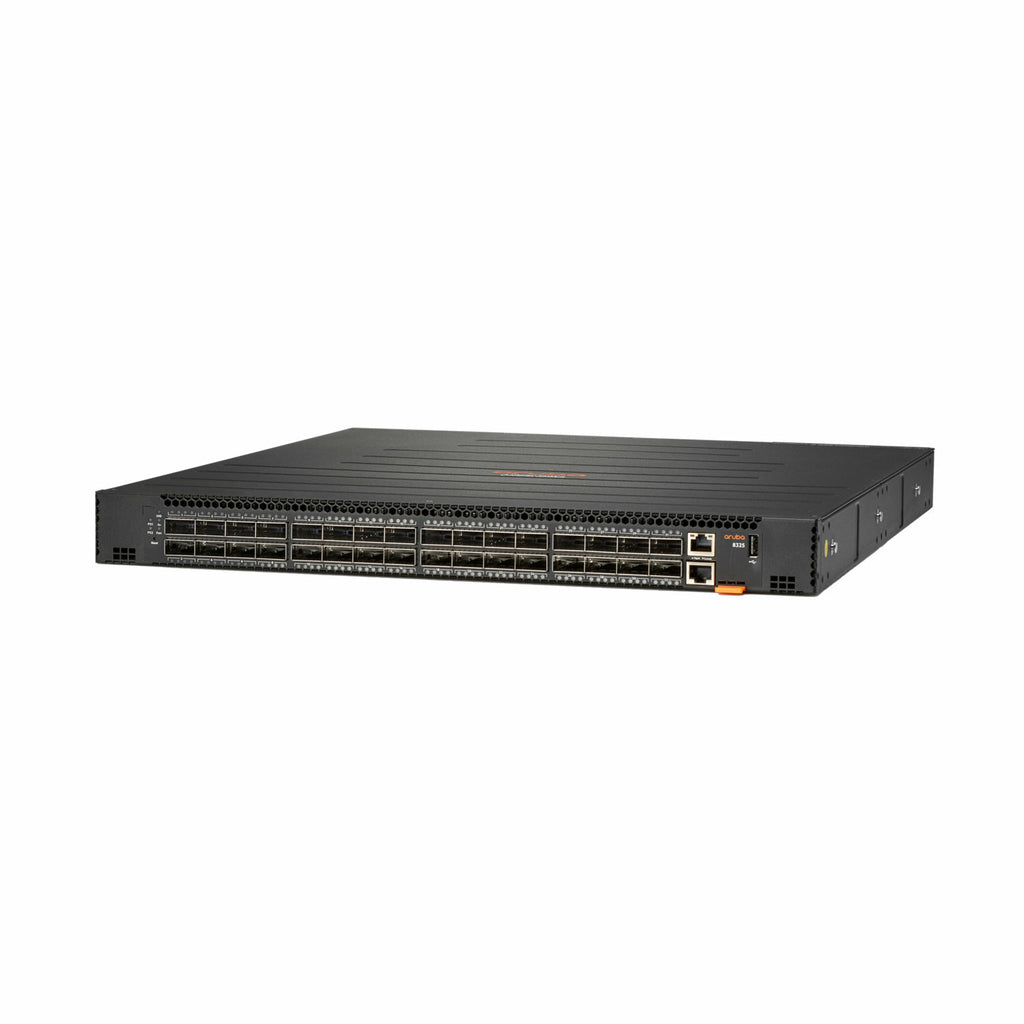

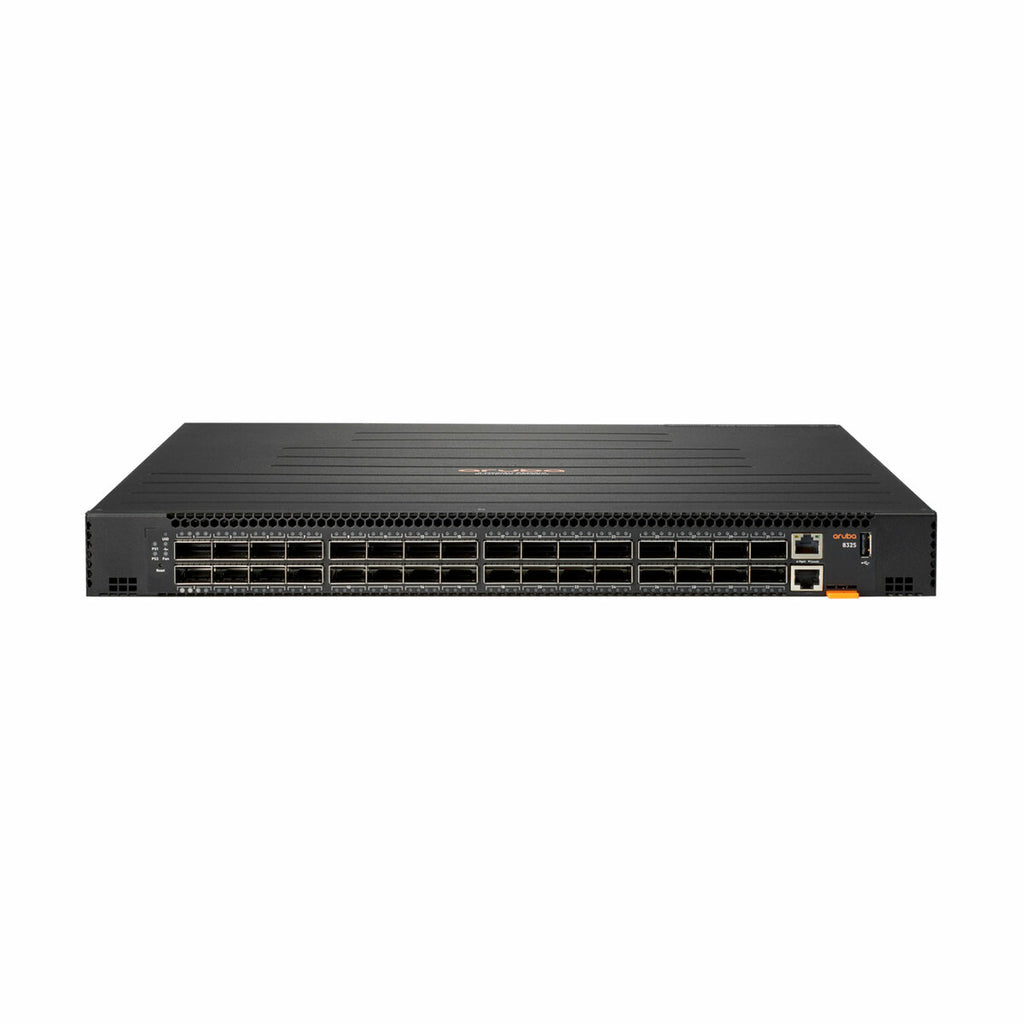

The HPE Aruba Networking CX 8325-32C Switch is a high-performance, 1U data center and campus core switch with 32 ports of 100G QSFP+/QSFP28. Built on Aruba's fully programmable AOS-CX software architecture, this switch is optimized for high-throughput, automation, and visibility across demanding environments like cloud, mobile, and IoT networks.
This bundle (JL627A#B2B) includes back-to-front airflow, six fan trays, two power supplies (JL633A), and a C13 PDU Jumper Cord, making it an ideal fit for rack-mounted deployments where airflow direction is critical. With 6.4 Tbps switching capacity and up to 2,000 Mpps forwarding, the CX 8325-32C ensures low-latency, wire-speed performance with support for L2/L3, BGP, OSPF, VXLAN, EVPN, and more.
| Specification | Details |
|---|---|
| Model Number | JL627A#B2B |
| Form Factor | 1U rack-mountable |
| Ports | 32 × 100G QSFP+/QSFP28 |
| Airflow Direction | Back-to-front |
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | 2,000 Mpps |
| Power Supplies Included | 2 × JL633A (Back-to-front) |
| Fan Trays Included | 6 × JL631A (Back-to-front) |
| Memory | 16 GB RAM, 64 GB SSD, 8 GB Flash |
| Packet Buffer | 32 MB |
| Power Consumption (Max/Idle) | 618 W / 143 W |
| Heat Dissipation (Max/Idle) | 2110 BTU/hr / 489 BTU/hr |
| Input Voltage | 100–240 VAC |
| Dimensions (H × W × D) | 1.70 x 17.26 x 20.28 in (43.2 x 438.5 x 515.1 mm) |
| Weight | 20.9 lbs (9.5 kg) |
| Software Features | AOS-CX OS, REST API, Python scripting, VSX, NAE, NetEdit, Dynamic VXLAN |
| L2/L3 Features | VLANs, STP, OSPF, BGP, VRF, IGMP, IPv6, VXLAN, EVPN |
| Compliance | TAA Compliant, FIPS 140-2, DoDIN, USGv6 |
| Bundled Cable | C13 PDU Jumper Cord (JL697A) |
