Description

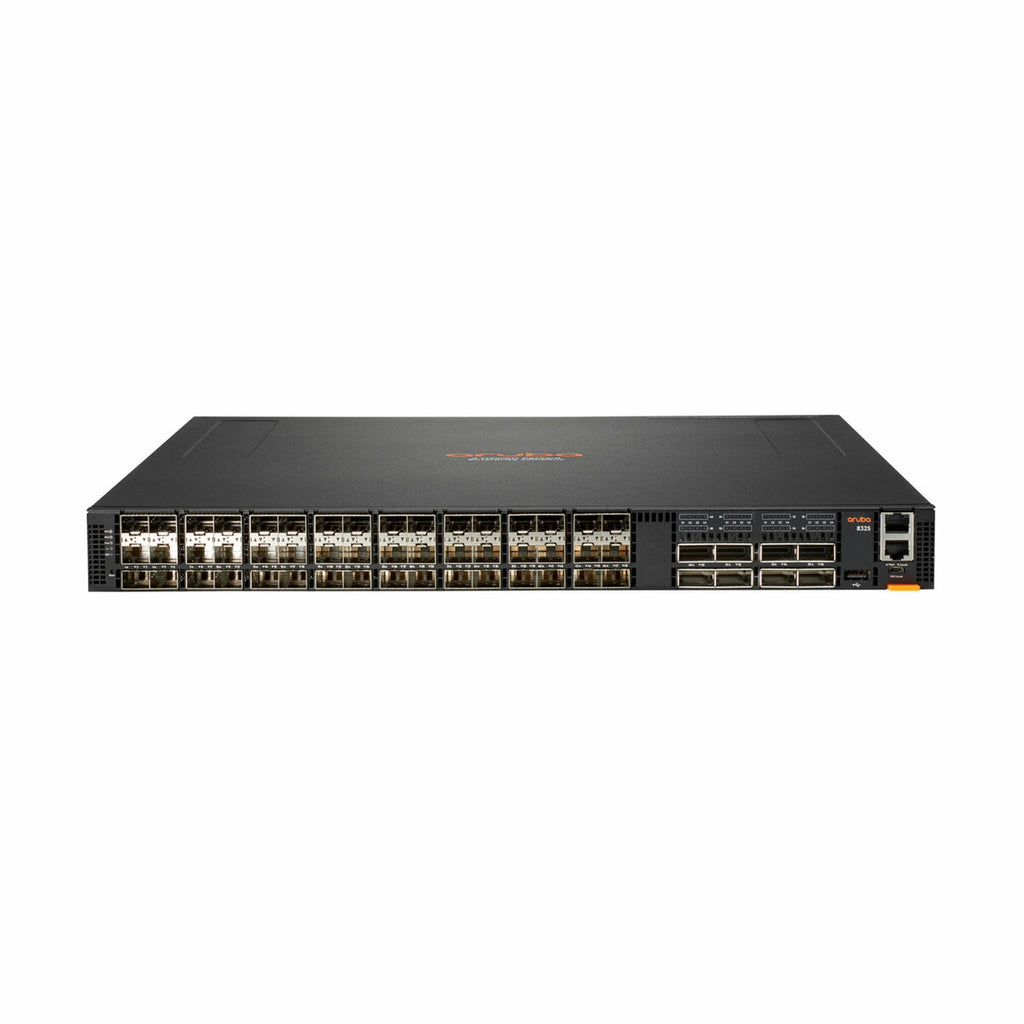

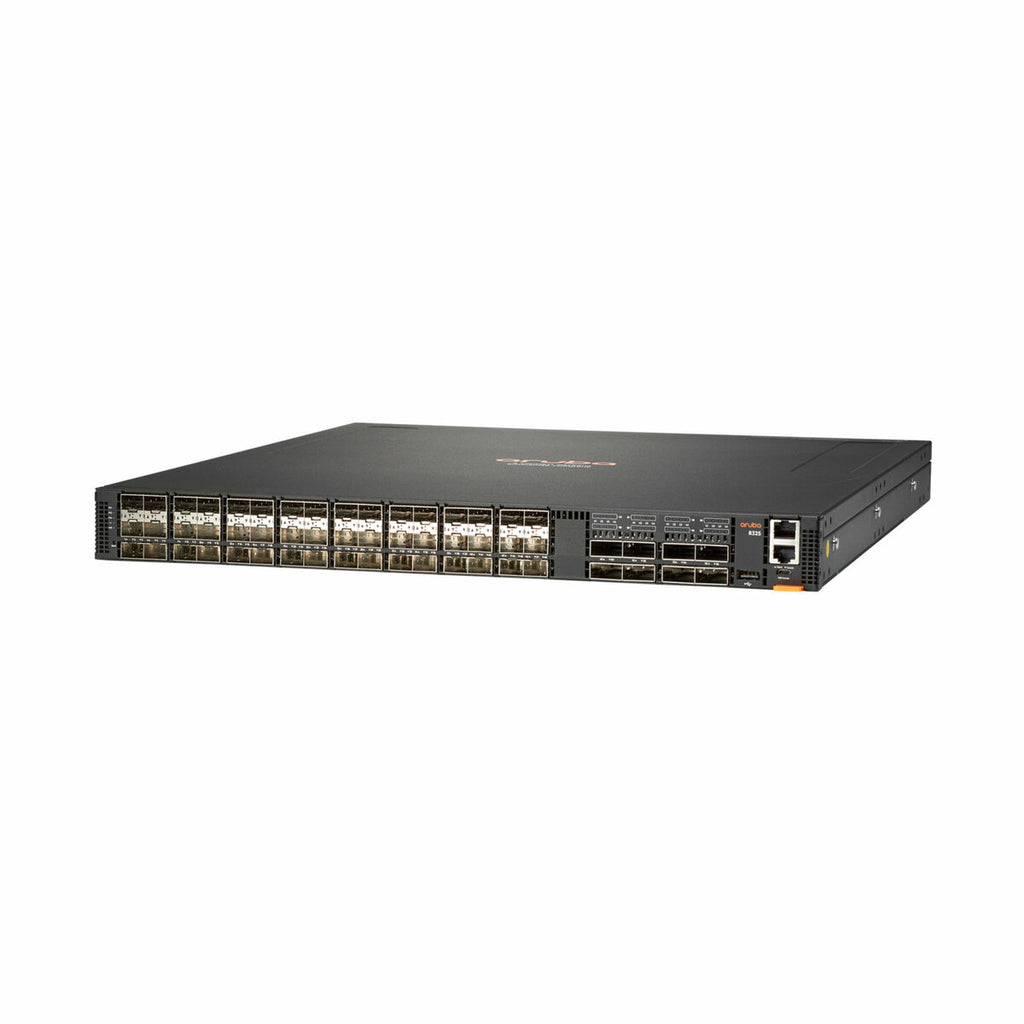

The HPE Aruba Networking CX 8325-48Y8C is a high-performance, fully managed Layer 3 switch designed for next-generation enterprise campuses and data centers. Equipped with 48 x 10/25G SFP+/SFP28 and 8 x 40/100G QSFP+/QSFP28 ports, this compact 1U switch delivers a switching capacity of up to 6.4 Tbps and 2,000 Mpps forwarding rate.

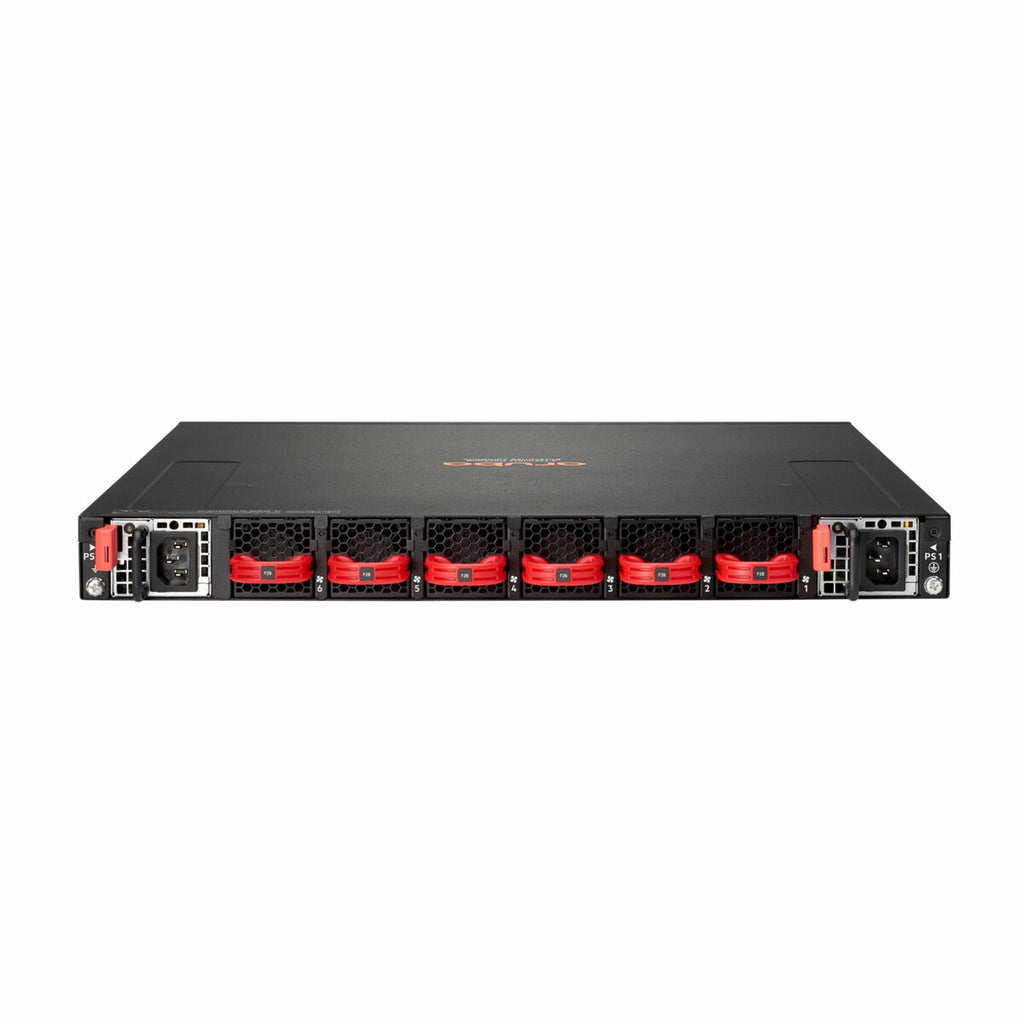

Built on the AOS-CX operating system, it offers automation, programmability, and analytics for simplified network operations. With front-to-back airflow, redundant power supplies and fans, and TAA compliance, it's ideal for demanding workloads, spine-leaf architectures, and top-of-rack deployments.
| Specification | Details |
|---|---|
| Model Number | JL624A#AC3 |
| Series | HPE Aruba Networking CX 8325 Series |
| Form Factor | 1U Rack-Mountable |
| Ports | 48 x 10/25G SFP+/SFP28, 8 x 40/100G QSFP+/QSFP28 |
| Layer Support | Layer 3 |
| Management | Fully Managed, CLI, REST API, Python, AOS-CX |
| Switching Capacity | Up to 6.4 Tbps |
| Forwarding Rate | Up to 2,000 Mpps |
| Airflow | Front-to-Back |
| Redundancy | 2 x Power Supplies (JL632A), 6 Fans Included |
| Memory | 16 GB RAM, 64 GB SSD, 8 GB Flash |
| Packet Buffer | 32 MB |
| Power Input | 100–240 VAC |
| Power Consumption | Max: 586 W (2000 BTU/hr), Idle: 209 W (714 BTU/hr) |
| Compliance | TAA Compliant |
| Use Cases | Data Center ToR/EoR, Campus Core/Aggregation, Edge Compute, HCI, Storage |
