Description

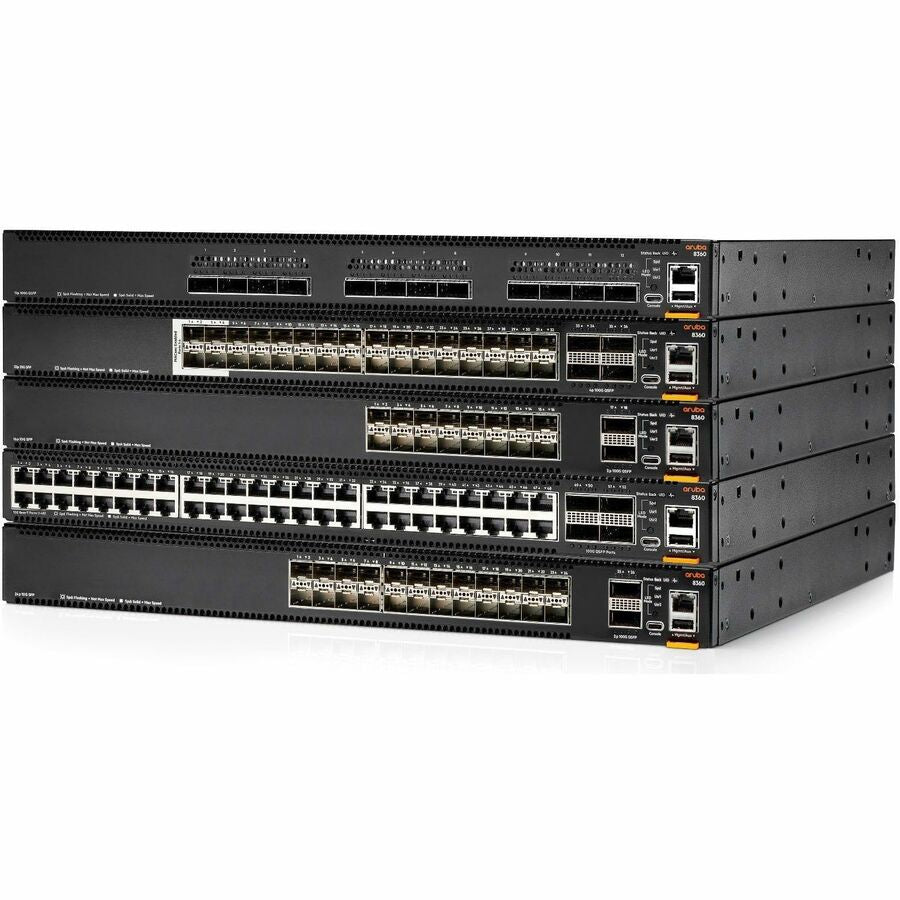

The HPE Aruba Networking CX 8360v2-24XF2C Ethernet Switch is a next-generation high-performance switch built for modern, mobile-first, and cloud-centric enterprise networks. Part of the Aruba CX 8360 v2 Series, it provides 24x 10G SFP+ and 2x 100G QSFP28 ports with advanced Layer 3 capabilities, secure MACsec-ready ports, and robust network agility. Ideal for the core and aggregation layer of campuses or dynamic data centers, this 1U rack-mountable switch ensures reliable, scalable, and secure connectivity for high-density environments.
With up to 4.8 Tbps of capacity and Aruba’s AOS-CX operating system, this model delivers intelligent automation, high availability, and seamless scalability, supporting today's hybrid IT needs while preparing for tomorrow’s workloads.
| Specification | Details |
|---|---|
| Brand | HPE Aruba Networking |
| Series | Aruba CX 8360 v2 Switch Series |
| Model | 8360v2-24XF2C |
| Part Number | JL710C#AKJ |
| Ports | 24 x 10GbE SFP+ Ports2 x 100GbE QSFP28 Ports |
| Expansion Slots | 2 Total (QSFP28) |
| Ethernet Standards | 10GBase-X, 100GBase-X |
| Layer Support | Layer 3 |
| Network Standards | IEEE 802.1Q, 802.1ad, 802.3ae, 802.3an, 802.3ba, and more |
| Manageable | Yes |
| MACsec Support | Yes, on select ports (10/25GbE) |
| Redundant Power Supply | Supported (2 included) |
| Power Consumption | 375 Watts |
| Power Frequency | 50/60 Hz |
| Form Factor | 1U Rack-mountable |
| Dimensions (H x W x D) | 1.7 x 17.4 x 22 inches |
| Weight | 23.66 lbs (Approx.) |
| Included Accessories | 2x PSU, 5x Fans, 2x Post Rack Kit |
| Use Case | Campus Core/Aggregation, Data Center Edge |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| Warranty | Limited Lifetime Warranty |
