Description

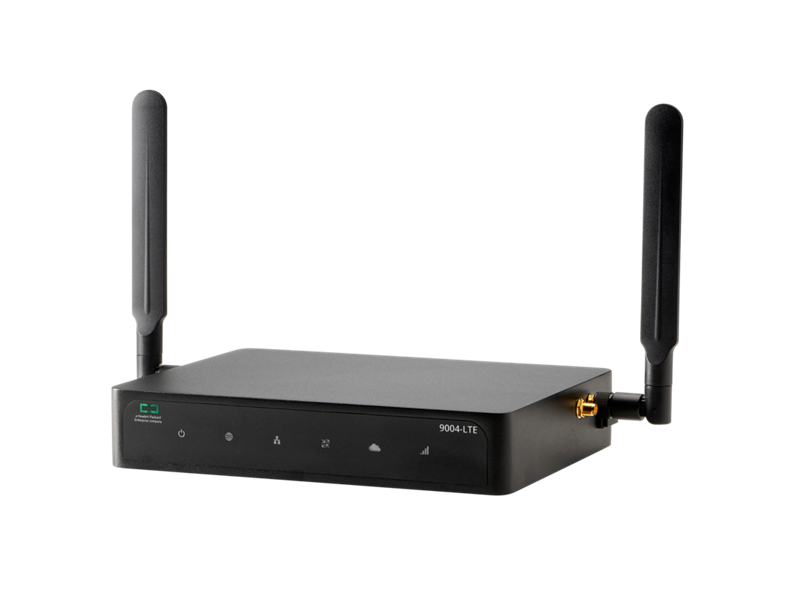

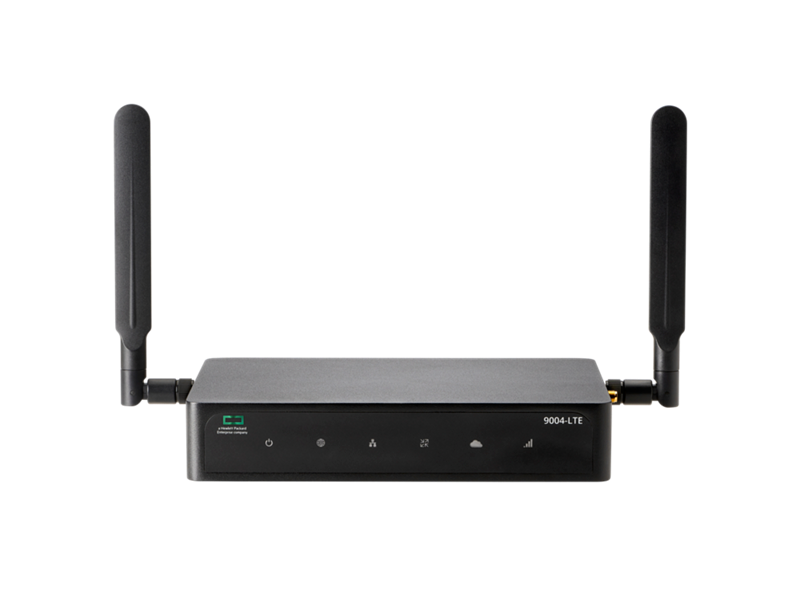

The HPE Aruba Networking 9004 (JP) LTE Branch Gateway delivers high-performance, cloud-managed SD-WAN, networking, and security services in a compact, fanless desktop form factor. Supporting up to 2,000 clients and 32 APs, this LTE-enabled gateway is ideal for small branches and remote offices requiring reliable connectivity and simplified IT management.
Designed as part of Aruba’s SD-Branch solution, it integrates wired, wireless, SD-WAN, and security through a unified architecture, with robust features including dynamic segmentation, integrated policy enforcement firewall, and application-aware traffic prioritization for Microsoft 365 and other UCC services.
Integrated LTE connectivity ensures WAN redundancy or primary WAN options via global LTE support, making it a flexible choice for locations with limited wired options. Managed through Aruba Central, the gateway simplifies deployment and delivers advanced analytics, AIOps insights, and unified management.
| Specification | Details |
|---|---|
| SKU | R3V89A |
| Form Factor | Desktop (fanless), optional rack tray available |

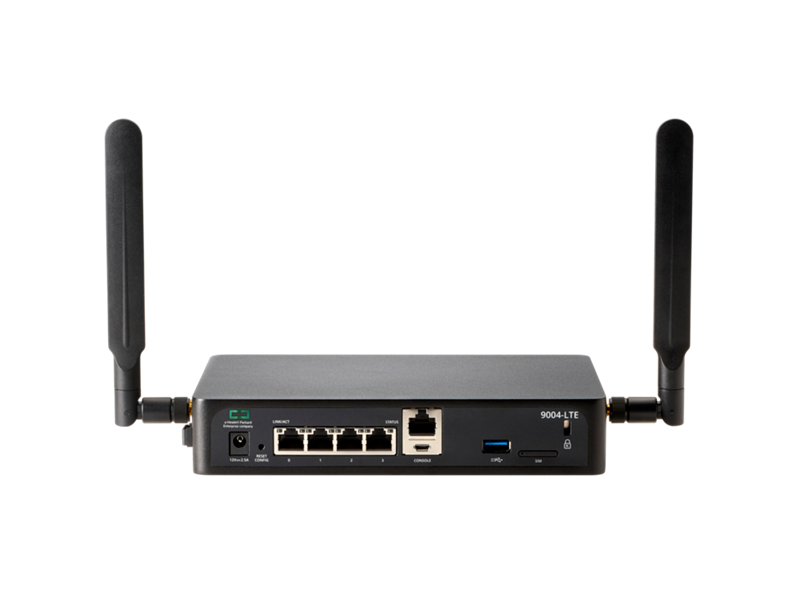

| Interfaces | 4x 10/100/1000BASE-T ports |
| Maximum Clients | 2,000 |
| Access Points Supported | 32 |
| Firewall Throughput | Up to 4 Gbps |
| LTE Support | LTE Category 12, 600/150 Mbps DL/UL, 3x SMA connectors |
| Bands Supported | LTE-FDD/TDD, UMTS (Global coverage) |
| Power Consumption | 25W max (with USB) |
| Power Input | 12V DC, 2.5A AC-to-DC adapter (included) |
| Radio Coverage | Integrated LTE |
| USB Ports | 1x USB 3.0 Type-A |
| Console Ports | Micro USB and RJ-45 |
| LED Indicators | System, WAN/LAN port status, LTE, gateway/SD-WAN mode |
| Weight | 1.24 kg (2.7 lbs) |
| Dimensions | 3.82 x 19.9 x 15.3 cm (1.5 x 7.8 x 6.0 in) |
| Operating Temp. | 0° C to 40° C |
| Certifications | FCC/ISED, RED 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-year parts/labor (hardware), 90-day software, extendable with support plan |
