Description

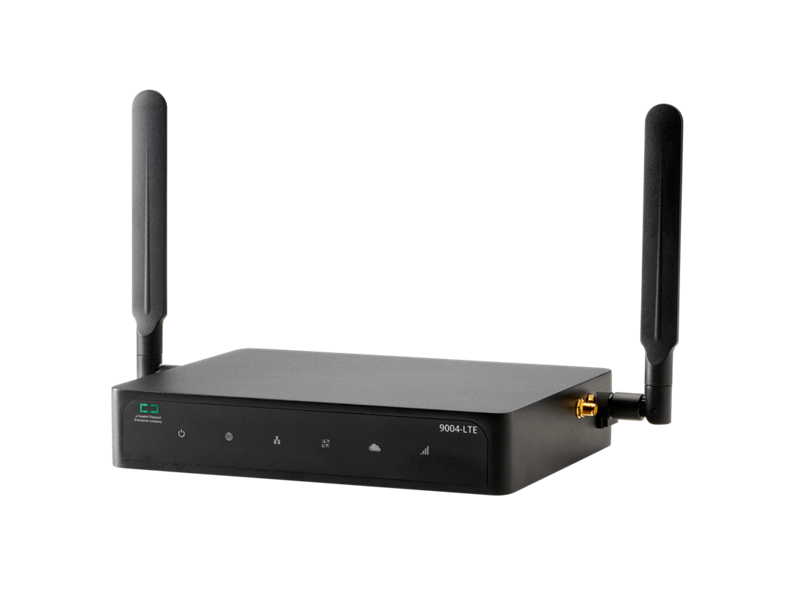

The HPE Aruba Networking 9004 (EG) LTE TAA Branch Gateway is a compact, high-performance solution delivering enterprise-grade SD-WAN, LTE, and security in one device. Designed for small campus and branch environments, this gateway integrates seamlessly into HPE Aruba Networking’s SD-Branch architecture—unifying WAN, LAN, WLAN, and security operations through Aruba Central.
With support for up to 2,000 clients, dynamic segmentation, advanced role-based firewall capabilities, and LTE connectivity for primary or backup WAN links, the 9004 offers agility, visibility, and resilience for distributed networks.
| Category | Specification |
|---|---|
| Model/SKU | HPE Aruba Networking 9004 (EG) LTE TAA – R3V92A |

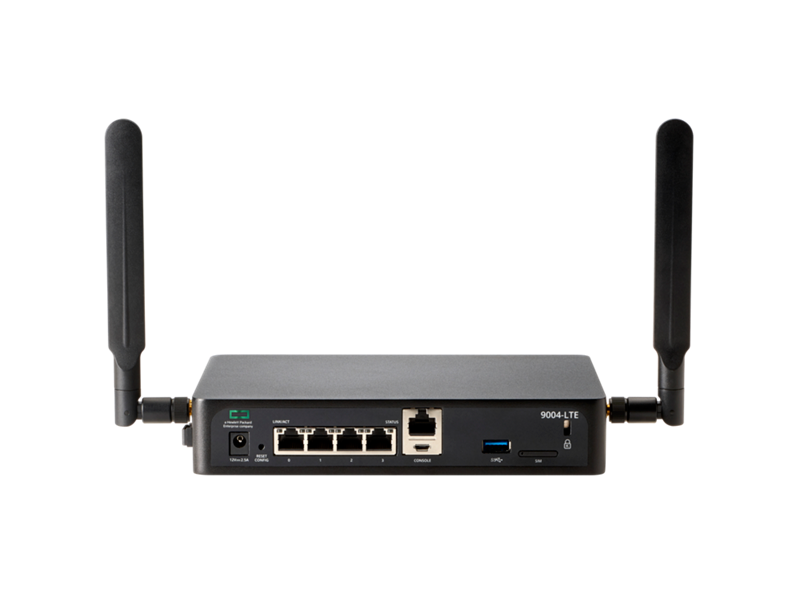

| Interfaces | 4x 10/100/1000BASE-T ports |
| LTE | Integrated LTE Cat 12 (600 Mbps DL / 150 Mbps UL) |
| Max Clients | 2,000 |
| Max APs | 32 |
| Firewall Throughput | Up to 4 Gbps |
| Encrypted Throughput (GRE/IPSec) | Up to 4 Gbps |
| Mounting | Desktop (fanless), optional 19" rack mount kit |
| Power Input | 12V DC, 2.5A (AC-to-DC adapter included) |
| Max Power Consumption | 25W (with USB) |
| Weight | 1.24 kg (2.73 lbs) |
| Dimensions | 3.82 x 19.9 x 15.3 cm (1.5 x 7.8 x 6.0 in) |
| Cooling | Fanless, conduction-cooled |
| USB Port | 1x USB 3.0 Type-A |
| Console Ports | micro-USB, RJ45 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Certifications | FCC, ISED, RED, MIC, NCC, ANATEL, COFTEL, CCC, CE |
| Compliance | TAA Compliant, Egypt only |
| Management | Aruba Central (cloud-based), Aruba Central NetConductor |
| Software Support | AOS 10.4+, SD-WAN R2.2.0.2+ |
| Warranty | 1-year hardware, 90-day software (extendable) |
