Description

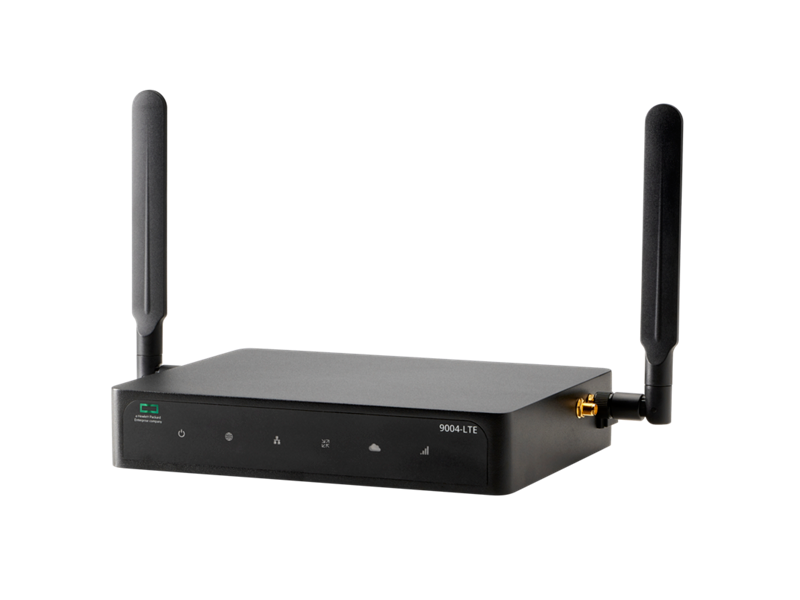

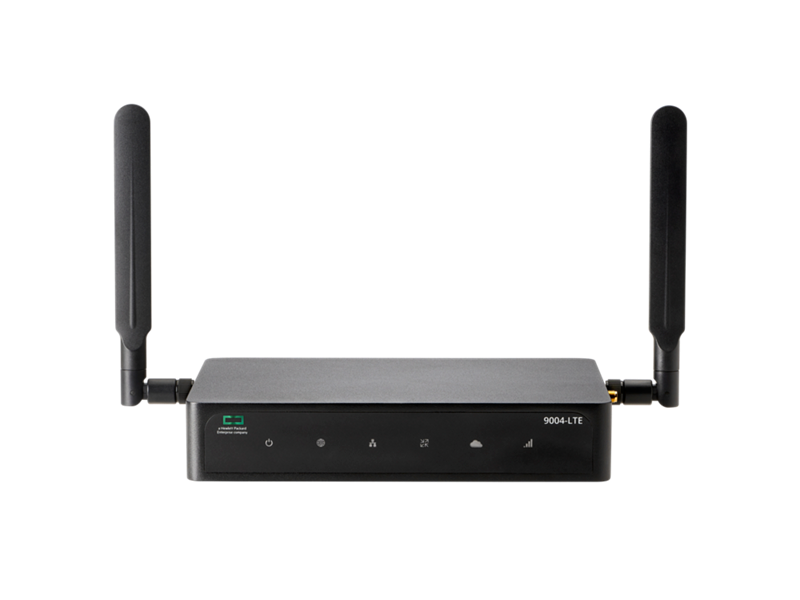

The HPE Aruba Networking 9004 (IL) LTE TAA Branch Gateway delivers high-performance, secure SD-WAN and networking capabilities in a compact, fanless desktop form factor. Designed for branch offices and small campus environments, it supports up to 2,000 users and 32 access points, with 4x 10/100/1000BASE-T ports and integrated LTE connectivity for resilient WAN access.
Ideal for government and regulated industries, this TAA-compliant model enables seamless network segmentation, secure LTE failover, dynamic policy enforcement, and simplified cloud-based management via Aruba Central. With 25W max power usage, robust security with IDS/IPS, integrated Bluetooth 5, and Zero Touch Provisioning, it empowers enterprises to deploy agile, scalable SD-Branch networks without compromising performance or security.
| Specification | Details |
|---|---|
| Model Number (SKU) | R3V93A |
| Form Factor | Desktop (fanless), optional rack mount kit available |

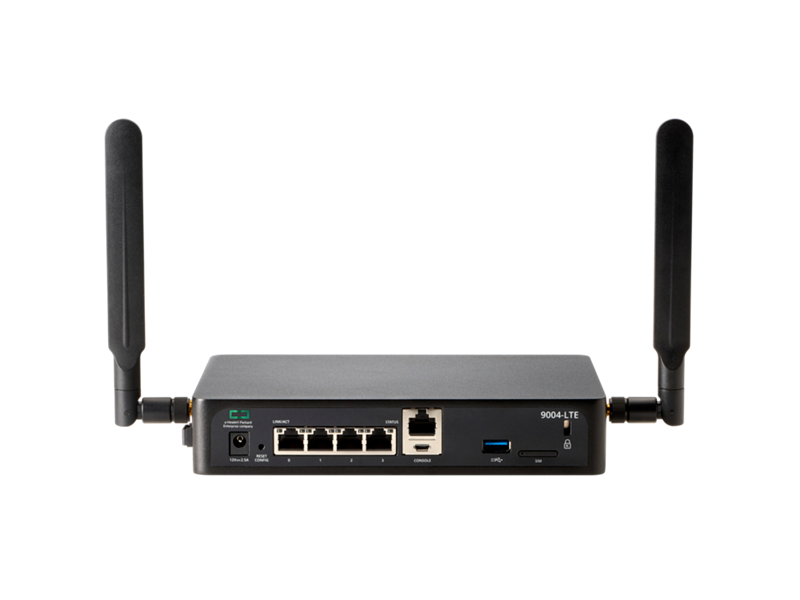

| Network Ports | 4 x 10/100/1000BASE-T RJ45 |
| LTE Connectivity | Integrated LTE modem (Cat 12), SMA connectors for main/diversity/GPS antenna |
| Client Capacity | Up to 2,000 users, 32 APs |
| Firewall Throughput | 4 Gbps |
| Encryption Throughput | AES-GCM-256: 6 Gbps (LTE model) |
| Management Platform | Aruba Central (Cloud-managed) |
| Security Features | Stateful L4–L7 firewall, role-based IDS/IPS, Dynamic Segmentation |
| USB Port | 1 x USB 3.0 Type-A |
| Console Ports | Micro USB and RJ-45 console |
| Operating System Support | AOS 10.4+, SD-WAN R2.2.0.2 or later |
| Mounting Options | Desktop or optional 19" rack mount kit (R3W17A) |
| Certifications | FCC, RED Directive 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Power Supply | 12V DC, 2.5A AC-to-DC adapter (included) |
| Power Consumption | 25W max (with USB) |
| Weight | 1.24 kg (2.7 lb) |
| Dimensions (H x W x D) | 3.82 x 19.9 x 15.3 cm (1.5 x 7.8 x 6.0 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Compliance | TAA-compliant, available in Israel |
| Differentiator | Integrated LTE, compact design, TAA compliance |
