Description

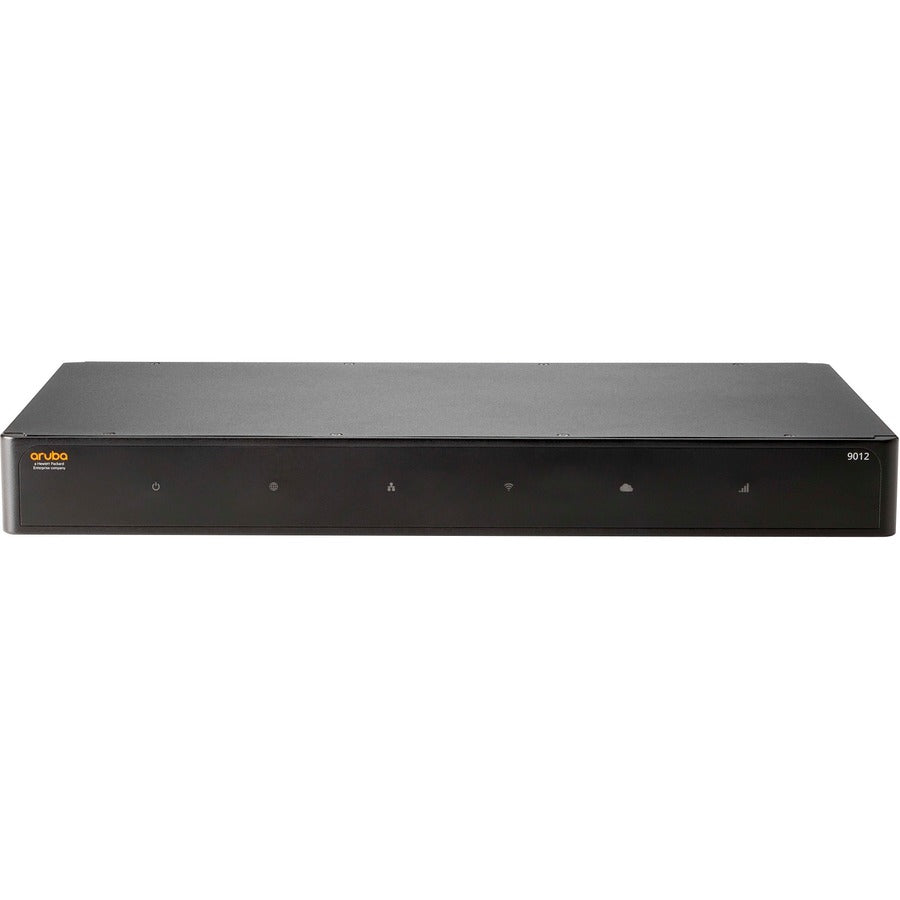

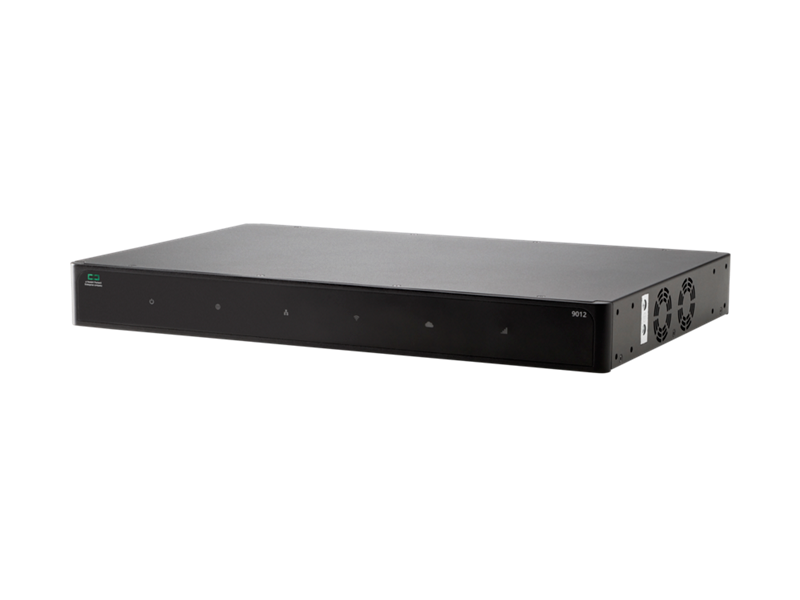

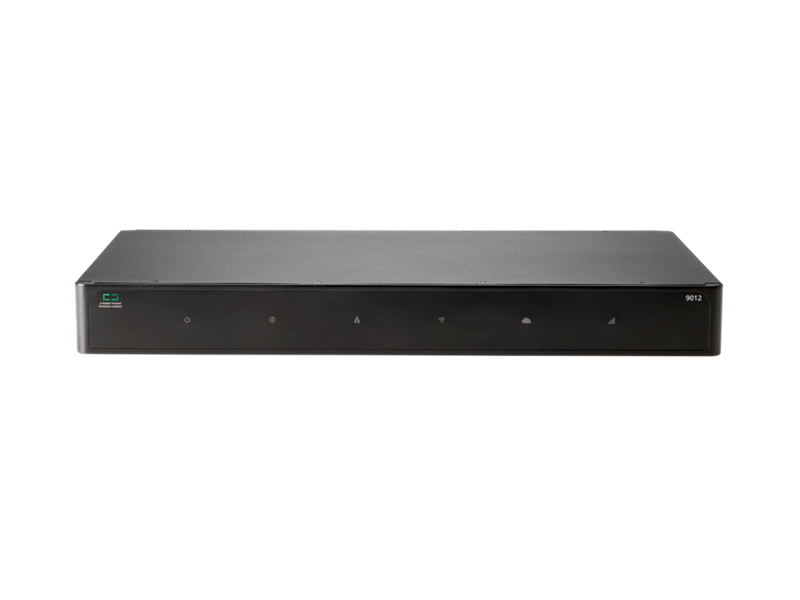

The HPE Aruba Networking 9012 (EG) TAA Branch Gateway (R1B40A) delivers high-performance, SD-WAN-capable networking in a compact, rack-mountable form factor, purpose-built for branch offices and small campus networks. With 12 Gigabit Ethernet ports—6 of which support PoE+—this gateway supports up to 2,000 clients and 32 access points, while delivering up to 6 Gbps firewall throughput. Integrated with Aruba Central, this TAA-compliant model supports dynamic segmentation, deep packet inspection, and built-in Layer 4–7 firewall for superior application visibility and threat protection.
Ideal for security-sensitive environments, the 9012 Gateway ensures simplified deployment, centralized policy management, and high availability—making it an essential part of your distributed enterprise strategy.
| Specification | Details |
|---|---|
| SKU | R1B40A |
| Product Series | HPE Aruba Networking 9000 Series Branch Gateway |
| Model | 9012 (EG) TAA |
| Use Case | Branch / Small Campus SD-WAN / Unified Policy Gateway |
| Clients Supported | Up to 2,000 |
| Access Points Supported | Up to 32 (256 in AOS-10 mode) |
| Firewall Throughput | Up to 6 Gbps |
| Encrypted Throughput (AES-GCM) | Up to 6 Gbps |

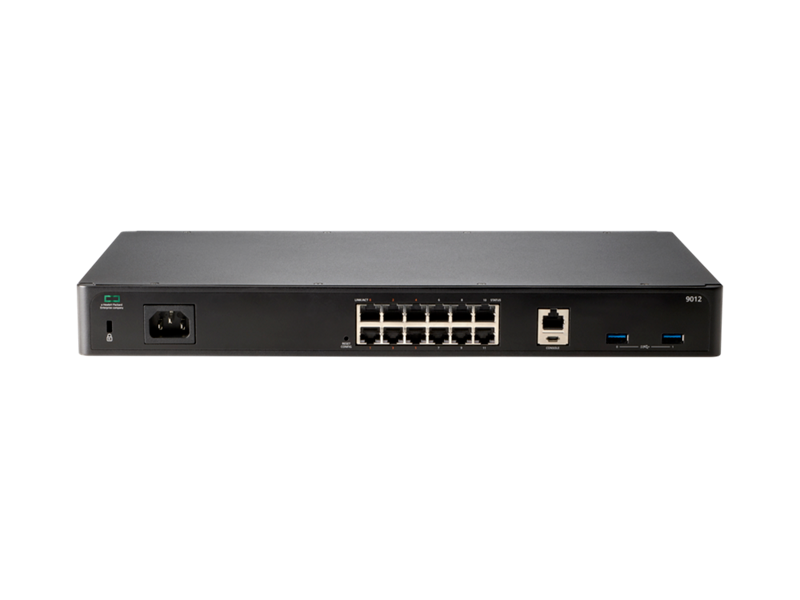

| Ports | 12x 100/1000BASE-T (6x PoE+) |
| USB Ports | 2x USB 3.0 Type-A |
| Console Ports | Micro USB, RJ-45 |
| Bluetooth Support | Bluetooth 5.0 |
| Mounting | Rackmount (ears included) |
| Form Factor | 1U Rackmount |
| Power Consumption | 160W (includes 120W PoE budget) |
| Power Supply | Internal PSU (90–264 VAC, 47–63 Hz, 3A at 100V) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -40° to 70°C (-40° to 158°F) |
| Humidity | 10% to 90% RH operating, 10% to 95% RH storage (non-condensing) |
| Weight | 3.42 kg (7.54 lbs) |
| Dimensions (H x W x D) | 4.37 x 39.5 x 26.00 cm (1.72 x 15.55 x 10.24 in) |
| Software Support | AOS 10.3.1.1 (SD-WAN), AOS 8.7+ (WLAN Gateway) |
| Certifications | FCC/ISED, RED Directive 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-Year Hardware; 90-Day Software (extendable via support contract) |
