Description

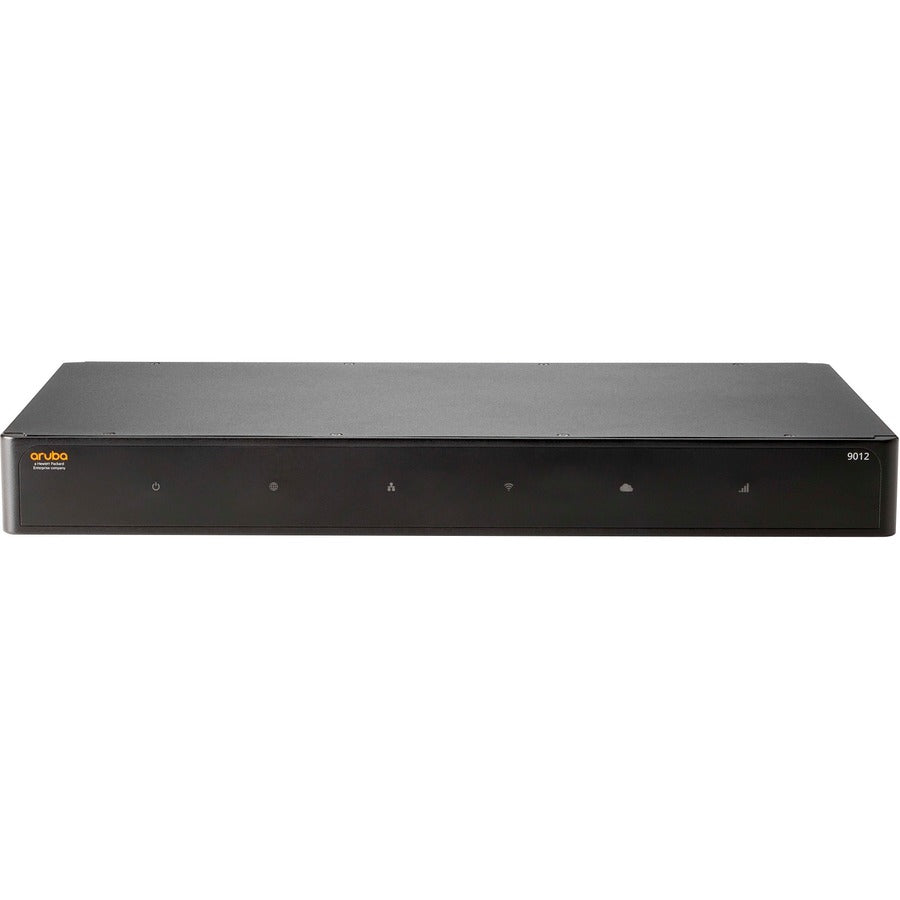

The HPE Aruba Networking 9012 (JP) TAA Branch Gateway is a high-performance, cloud-managed SD-Branch solution designed for secure, scalable connectivity in small campuses and branch networks. Featuring 12x 1GbE ports with 6x PoE+ capability, the 9012 delivers up to 6 Gbps firewall throughput and supports 2,000 clients and 32 access points, making it ideal for growing distributed enterprises.
This gateway integrates SD-WAN, LAN, and WLAN security with Dynamic Segmentation, AI-powered analytics, and deep packet inspection for over 3,800 applications—offering real-time traffic visibility and policy enforcement. It is powered by ArubaOS and easily managed through Aruba Central, with flexible subscription licensing for foundational or advanced SD-Branch deployments.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking 9012 (JP) TAA |
| SKU | R1B38A |
| Form Factor | Rack-mountable (rack ears included) |
| Network Ports | 12x 10/100/1000BASE-T (6x PoE+) |
| PoE+ Power Budget | 120W |
| Maximum Clients | 2,000 |
| Maximum Access Points | 32 (AOS 8) / 256 (AOS 10) |
| Firewall Throughput | Up to 6 Gbps |
| Encryption Performance | Up to 6 Gbps (AES-GCM-256) |
| Max Sessions | 128K firewall sessions |
| USB Ports | 2x USB 3.0 Type-A |
| Console Ports | Micro USB, RJ-45 |
| Bluetooth | Bluetooth 5 support |
| Operating System | ArubaOS 10.3.1.1+ / AOS 8.7+ |
| Power Supply | Internal PSU; 90–264VAC, 47–63Hz, 3A @ 100V |
| Power Consumption | Max 160W (including PoE) |
| Weight | 3.42 kg (7.54 lbs) |
| Dimensions (H x W x D) | 4.37 x 39.5 x 26.00 cm (1.72 x 15.55 x 10.24 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | FCC, RED, CE, MIC, ANATEL, CCC, TAA Compliant |
| Mounting | Rackmount hardware included |
