Description

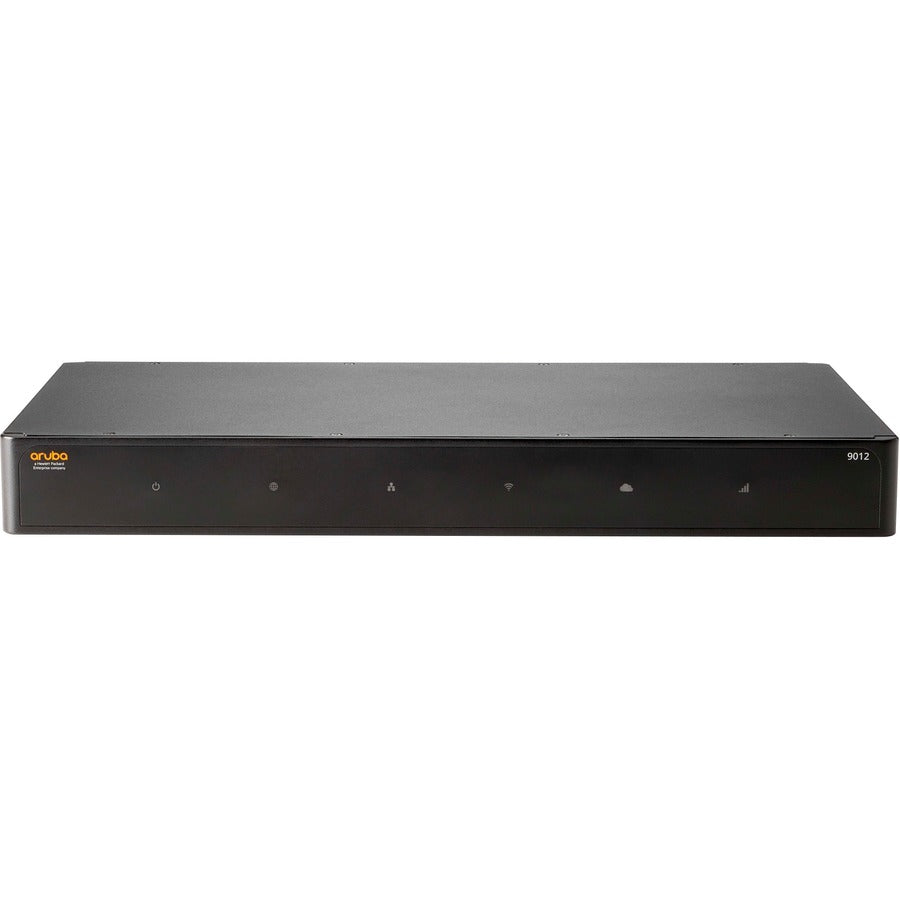

The HPE Aruba Networking 9012 Branch Gateway (IL variant) is a high-performance SD-WAN and security appliance designed for enterprise branches and small campuses. Supporting up to 2,000 clients and 32 APs, this gateway delivers reliable connectivity, integrated threat defense, and unified policy enforcement across wired and wireless traffic.
Equipped with 12 GbE ports, including 6 PoE+ outputs, it supports simplified deployments with scalable performance (up to 6 Gbps firewall throughput) and application-aware intelligence. The 9012 Gateway operates seamlessly with HPE Aruba Networking Central, ClearPass, and Edge-to-Cloud security frameworks, offering cloud-managed provisioning, real-time insights, and advanced segmentation for users and IoT.
Ideal for distributed enterprises transitioning to modern network architectures, this solution integrates SD-WAN, WAN optimization, deep packet inspection, and unified communication support—all within a compact rack-mountable chassis.
| Specification | Details |
|---|---|
| SKU | R1B34A |
| Model Name | HPE Aruba Networking 9012 (IL) Branch Gateway |
| Ports | 12x 10/100/1000BASE-T (6x PoE+ capable) |
| Clients Supported | Up to 2,000 (2K) |
| Access Points Supported | Up to 32 (256 per cluster) |
| PoE Power Budget | 120W PoE+, Total Power Consumption: 160W |
| Firewall Throughput | 6 Gbps |
| Encrypted Throughput (GRE / AES) | Up to 6 Gbps |
| Form Factor | 1U Rack Mountable |
| Power Supply | Internal, 90–264 VAC, 47–63 Hz |
| USB Ports | 2x USB 3.0 Type-A |
| Console Ports | 1x Micro USB, 1x RJ45 |
| Management | HPE Aruba Networking Central (Cloud), ClearPass, Mobility Conductor |
| Mounting | Rackmount ears included |
| Weight | 3.42 kg (7.54 lb) |
| Dimensions (H x W x D) | 4.37 x 39.5 x 26.0 cm (1.72 x 15.55 x 10.24 in) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Certifications | FCC/ISED, RED Directive 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| Differentiator | Available in Israel only |
