Description

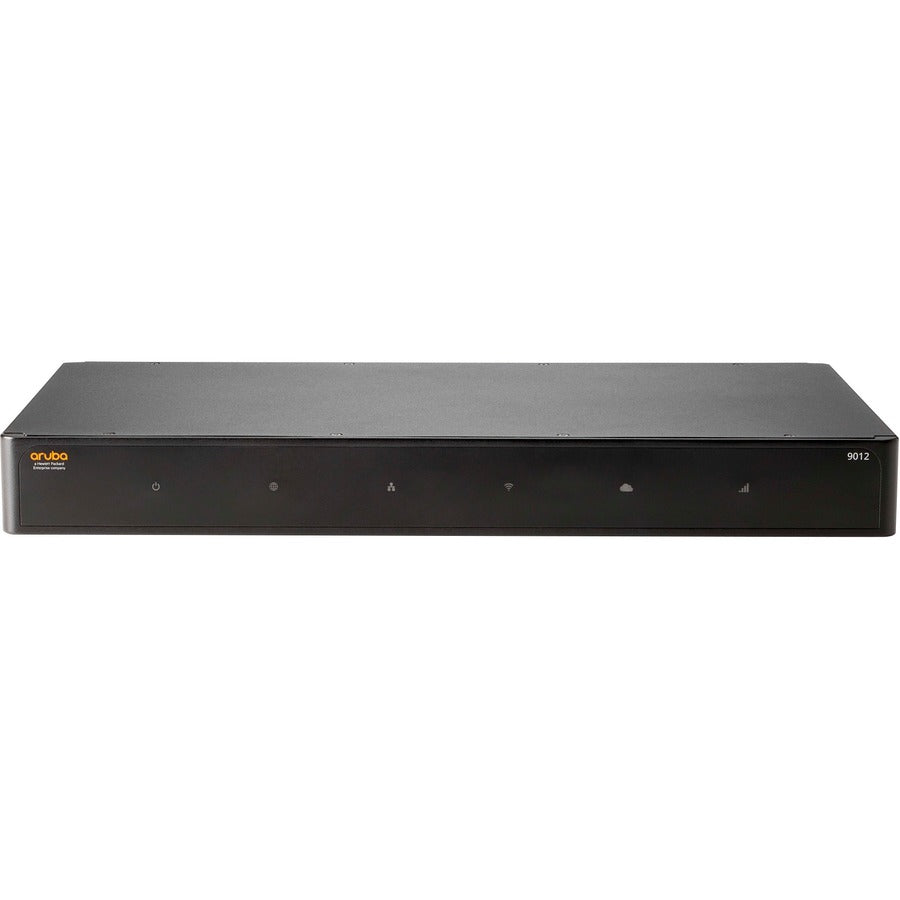

The HPE Aruba Networking 9012 (EG) Gateway (SKU: R1B35A) is a powerful SD-Branch solution designed for high-performance networking, SD-WAN, and security at distributed enterprise sites. Supporting up to 2,000 clients and 32 access points, this compact gateway features 12 Gigabit Ethernet ports (including 6 PoE+ ports) and delivers up to 6 Gbps firewall throughput.
Optimized for branch and small campus deployments, the 9012 Gateway supports unified policy enforcement, dynamic segmentation, and deep application visibility for over 3,800 applications. It integrates seamlessly with HPE Aruba Networking Central for cloud-managed operations and provisioning.
Ideal for organizations requiring secure, scalable, and cloud-managed network infrastructure with built-in AI-powered insights, policy-based automation, and threat detection capabilities.
| Specification | Details |
|---|---|
| Model Number | R1B35A |
| Product Name | HPE Aruba Networking 9012 (EG) Gateway |
| Form Factor | Rack Mount |
| Interfaces | 12x 1GbE RJ-45 (6x PoE+) |
| PoE Power Budget | 120W |
| Firewall Throughput | 6 Gbps |
| Encrypted Throughput (GRE) | 6 Gbps |
| Encrypted Throughput (AES-GCM) | 6 Gbps (128 & 256-bit) |
| Max Clients | 2,000 |
| Max APs Supported | 32 (AOS 8.12 and above) |
| Max APs per Cluster | 768 |
| Max Concurrent Sessions | 128K |
| USB Ports | 2x USB 3.0 Type-A |
| Bluetooth | Bluetooth 5 |
| Console Ports | Micro USB, RJ45 |
| Max Power Consumption | 160W (with 120W PoE) |
| Power Supply | Internal PSU: 90–264VAC, 47–63Hz |
| Dimensions (H x W x D) | 4.37 x 39.5 x 26.0 cm |
| Weight | 3.42 kg (7.54 lbs) |
| Operating Temperature | 0° C to 40° C |
| Storage Temperature | -40° C |
