Description

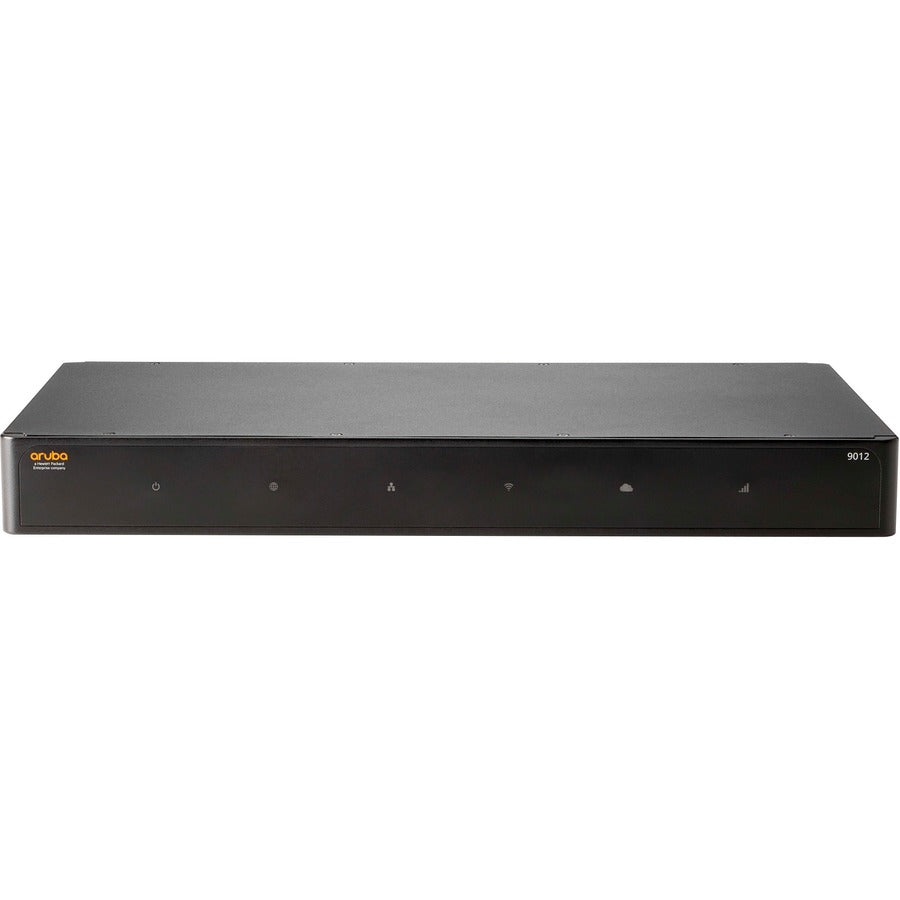

The HPE Aruba Networking 9012 (JP) Gateway is a high-performance SD-WAN and security appliance purpose-built for distributed branch networks and small campus environments. With support for 12 Gigabit Ethernet ports, including 6 with PoE+, it enables seamless connectivity for up to 2,000 clients and 32 access points per device.
Part of the Aruba 9000 Series, this gateway unifies WLAN, LAN, SD-WAN, and security into a compact rack-mountable form factor. Integrated Layer 4–7 firewall, role-based segmentation, and advanced application visibility ensure secure, efficient operations. Designed for the Japanese market, it provides full compliance with local certifications and power specifications.
| Specification | Details |
|---|---|
| Model Number | R1B33A |
| Region | Japan (JP) |
| Ports | 12x 10/100/1000BASE-T (6x PoE+) |
| Client Capacity | Up to 2,000 clients |
| Access Points Supported | Up to 32 APs (256 per cluster) |
| Firewall Throughput | 6 Gbps |
| Encrypted Throughput | AES-GCM-128/256: 6 Gbps |
| Mounting | Rackmount (rack ears included) |
| Power Consumption | Max 160W (120W PoE+) |
| Power Input | 90 – 264 VAC, 47–63 Hz, 3A @ 100 Vrms |
| Weight | 3.42 kg (7.54 lbs) |
| Dimensions | 4.37 x 39.5 x 26.00 cm (1.72 x 15.55 x 10.24 in) |
| Software Compatibility | AOS 10.3.1.1+ (SD-Branch); AOS 8.7+ (WLAN Gateway Mode) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Certifications | FCC/ISED, RED, MIC, NCC, ANATEL, COFTEL, CCC |
| Warranty | 1-year hardware; 90-day software (extendable with contract) |
