Description

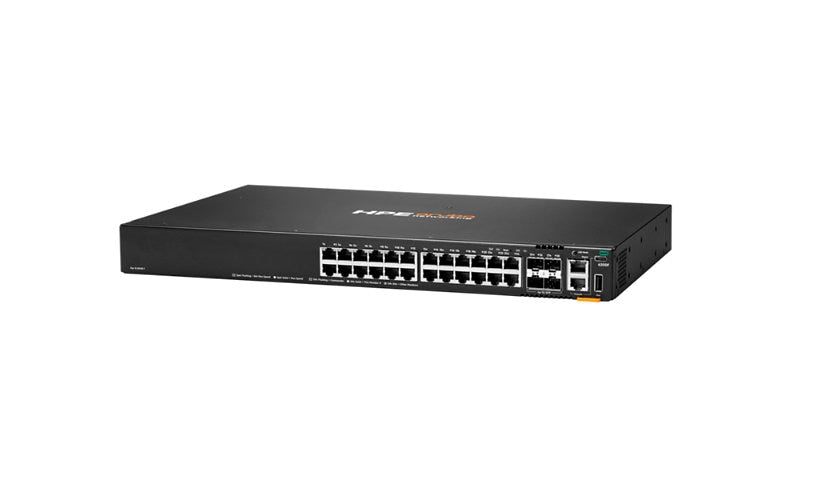

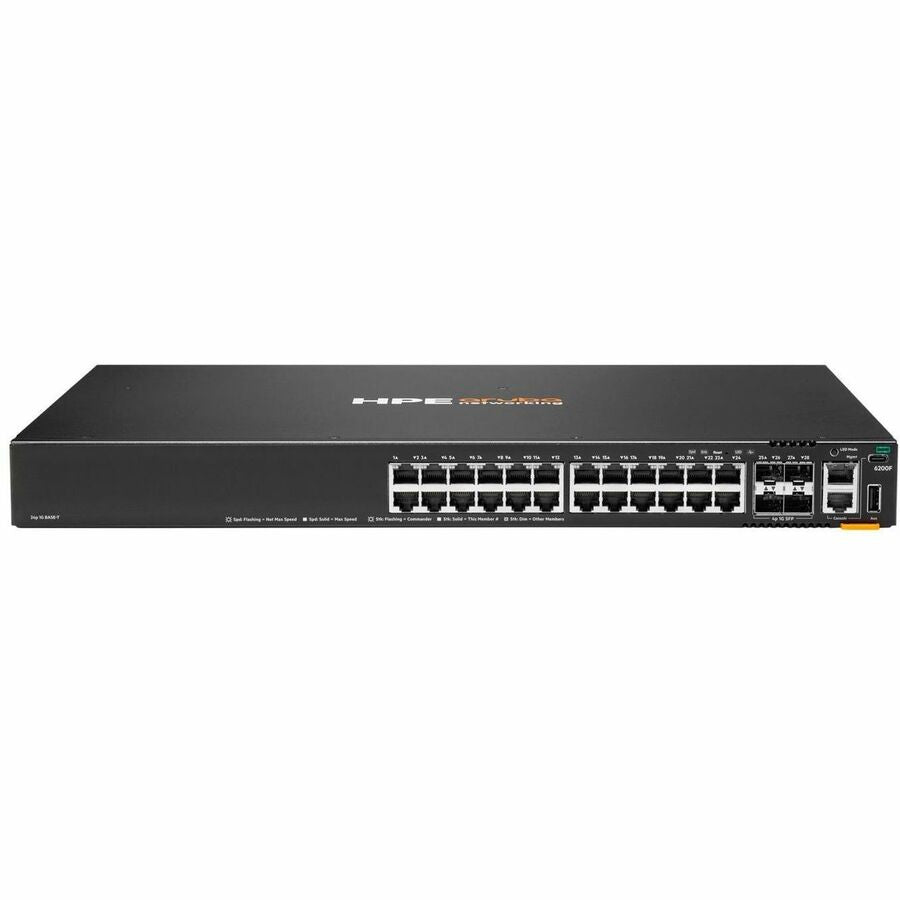

The HPE Aruba Networking CX 6200F 24G 4SFP Switch delivers enterprise-class performance, simplicity, and security for branch offices, SMBs, and campus networks. Featuring 24 Gigabit Ethernet ports and 4 SFP uplinks, this rack-mountable Layer 3 switch is powered by an ARM Cortex-A72 processor and supports advanced switching capabilities with built-in analytics and automation via the Aruba AOS-CX operating system.
Ideal for scalable deployments, the 6200F supports up to 8 switches in a stack, a 128 Gbps switching capacity, and robust Layer 3 routing protocols. Designed with front and side to back airflow, it's well-suited for demanding environments and offers enhanced manageability, security features, and performance monitoring for modern networking demands.
| Category | Specification |
|---|---|
| Model | HPE Aruba Networking CX 6200F 24G 4SFP Switch (S0M81A#ABA) |
| Ports | 24 x 10/100/1000 Base-T RJ-45, 4 x 100/1000 SFP uplinks |
| Layer Support | Layer 3 (L3) |
| Stacking Capability | Up to 8 switches, 40 Gbps stacking bandwidth, 10 km max stacking distance |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| MAC Address Table | 32,768 entries |
| Latency | 1 Gbps: 2.28 µs, 10 Gbps: 1.46 µs |
| Power Supply | Internal, AC 100–240V, 50/60Hz, 80 PLUS Silver certified |
| Processor | ARM Cortex-A72 1.8 GHz |
| Memory | 8 GB RAM, 16 GB Flash |
| Remote Management | CLI, MIB, RMON |
| Routing Protocols | OSPFv2/v3, RIP-2, IGMP, MLD |
| Standards Compliance | IEEE 802.1/802.3 series, FIPS 140-2, SSL |
| Security | SSH, RADIUS, TACACS+, MAC/IPv4/IPv6 ACLs |
| Form Factor | Rack-mountable (1U) |

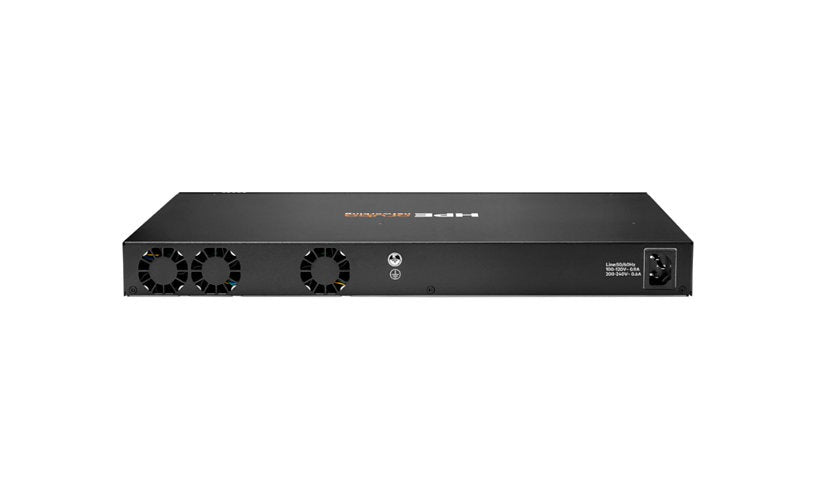

| Airflow | Front and side to back |
| Jumbo Frame Support | 9220 bytes |
| Included Accessories | 2-Post Rack Kit |
| Operating Temp Range | 0–45°C (32–113°F) |
| Dimensions (W x D x H) | 17.4 in x 11.2 in x 1.7 in (1U) |
| Weight | 8.31 lbs (3.77 kg) |
| Compliance | UL, FCC, EN, VCCI, IEC, Laser Class 1, etc. |
| Warranty | Limited Lifetime Warranty |
