Description

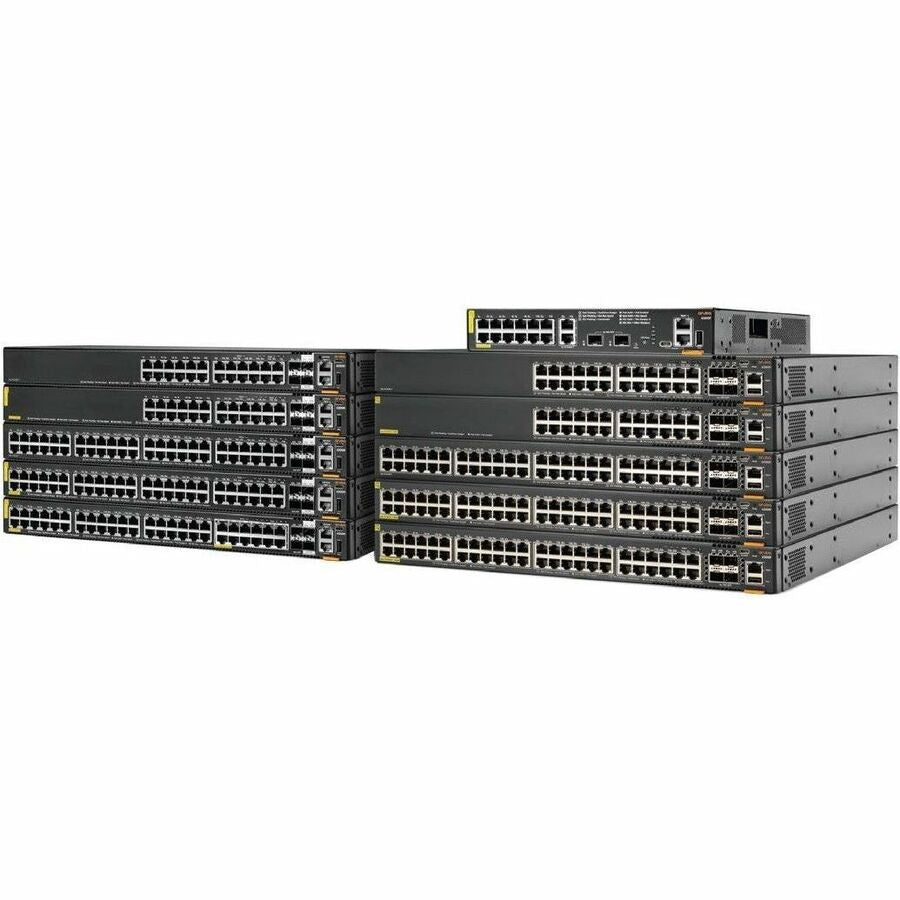

The HPE Aruba Networking CX 6200F 24G 4SFP+ TAA Switch is a stackable Layer 3 managed access switch built for modern enterprise edge deployments. Equipped with 24 Gigabit Ethernet ports and 4 high-speed 1G/10G SFP+ uplinks, this switch supports up to 10 km stacking distance, providing scalable and secure wired connectivity for branch offices, campuses, and SMB networks.
Powered by the robust Aruba AOS-CX operating system, it delivers advanced network analytics, automation, and enhanced programmability with support for REST APIs and Python scripting. With a powerful 1.8 GHz ARM Cortex-A72 processor, 8 GB of DDR4 SDRAM, and 16 GB of flash memory, this switch ensures seamless performance and high availability.
The switch is TAA compliant, rack-mountable, and supports front and side-to-back airflow. It also features Aruba's Network Analytics Engine and Dynamic Segmentation for consistent policy enforcement across wired and wireless networks. Designed with enterprise-grade resilience and security, it is ideal for future-ready network environments.
| Specification | Details |
|---|---|
| Model Number | S0M86A#ABA |
| Ports | 24 x 10/100/1000 Base-T, 4 x 100/1000/10G SFP+ |
| Layer | Layer 3 |
| Management | Fully Managed |
| Stacking Capacity | Up to 8 switches (max stacking distance: 10 km) |
| Performance | 128 Gbps switching capacity, 95.2 Mpps throughput |
| Processor | 1 x ARM Cortex-A72, 1.8 GHz |
| Memory | 8 GB DDR4 SDRAM, 16 GB Flash |
| PoE Support | No PoE (Fixed power model) |
| Enclosure Type | Rack-mountable (1U), Front and Side-to-Back Airflow |
| Power Supply | Internal, 200W, 80 PLUS Silver certified |
| Operating System | Aruba AOS-CX |
| Security | SSH, RADIUS, TACACS+, SSL, MACsec 256, FIPS 140-2 |
| Protocols Supported | RIP-2, IGMPv2/v3, OSPFv2/v3, MLD, VLAN, ACLs, QoS |
| Compliant Standards | IEEE 802.3, 802.1Q, 802.1D, 802.1p, 802.1AX, etc. |
| TAA Compliant | Yes |
| Environmental Range | Operating: 0°C to 45°C, Storage: -40°C to 70°C |
| Humidity | Operating & Storage: 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 44.25 x 28.45 x 4.37 cm |
| Weight | 3.77 kg |
| Warranty | Limited Lifetime Warranty |
| Included Accessories | 2-Post Rack Kit |
