Description

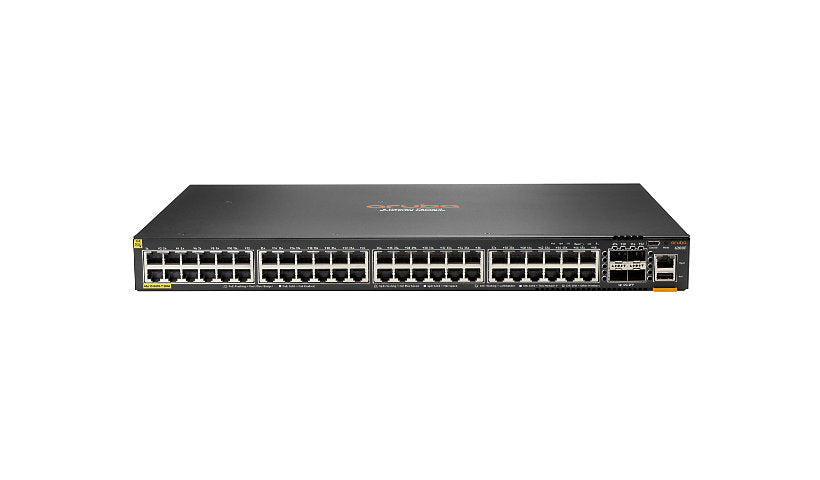

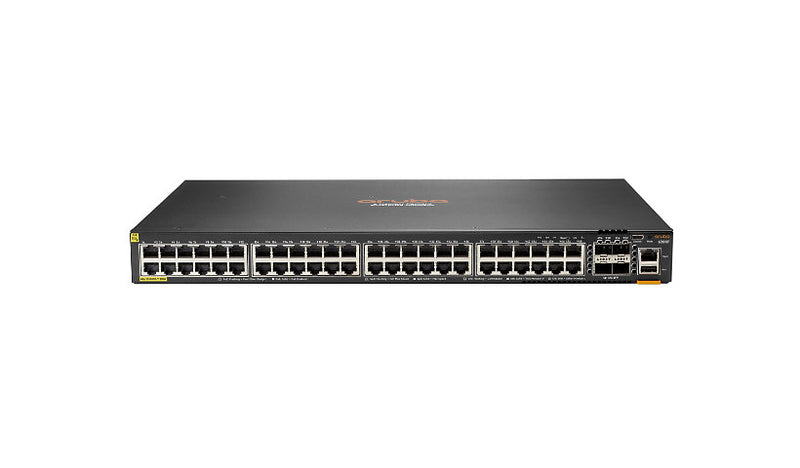

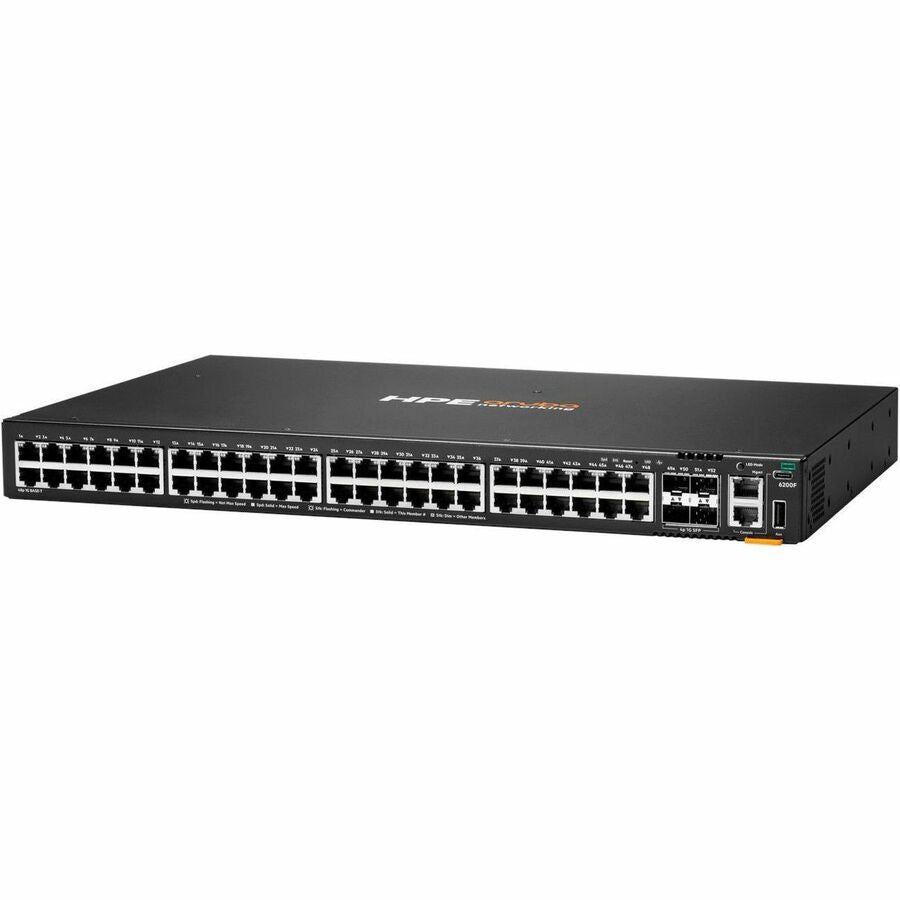

The HPE Aruba Networking CX 6200F 48G 4SFP Switch is a next-generation, stackable Layer 3 access switch built for enterprise branches, SMBs, and campus networks. With 48 Gigabit Ethernet ports and 4 SFP uplinks, it provides high-speed connectivity and seamless scalability. Powered by the Aruba Gen7 ASIC and AOS-CX OS, this fully managed switch delivers fast, non-blocking performance and deep visibility through the Aruba Network Analytics Engine.
Its support for Virtual Stacking Framework (VSF) allows stacking of up to 8 switches, simplifying network management. The compact 1U rack-mountable form factor, high switching capacity of 176 Gbps, and support for advanced security and routing protocols make it an ideal fit for future-ready wired networks supporting IoT, mobile, and cloud applications.
| Category | Details |
|---|---|
| Model | HPE Aruba Networking CX 6200F 48G 4SFP Switch |
| Part Number | S0M83A#ABA |
| Ports | 48 x 10/100/1000 RJ-45, 4 x 100/1000 SFP uplinks |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Stacking Support | Up to 8 units (40 Gbps stacking bandwidth) |
| Layer Support | Layer 3 |
| Power Supply | Internal, 80 PLUS Silver certified |
| Airflow | Front and side to back |
| MAC Address Table | 32,768 entries |
| Latency | 1 Gbps: 2.28 ΞΌs, 10 Gbps: 1.46 ΞΌs |
| Management Interfaces | CLI, USB-A, USB-C console, RJ-45 console, Web, Aruba NetEdit, Aruba CX App |
| Security Protocols | RADIUS, SSH/SSH2, TACACS+, ACLs, VRRP |
| OS | AOS-CX |
| Routing Protocols | RIP-2, OSPFv2/v3, IGMPv2/v3, MLDv1/v2 |
| Performance Features | Virtual Stacking Framework (VSF), ACLs, QoS, Jumbo Frame (9220 bytes) |
| Power Specs | AC 100-120/200-240V, 50/60Hz |
| Form Factor | 1U rack-mountable |
| Dimensions (W x D x H) | 17.4 x 11.2 x 1.7 in |
| Weight | 8.6 lbs |
| Operating Temp. | 32Β°F to 113Β°F (0Β°C to 45Β°C) |
| Certifications | UL, FCC, CE, RoHS, IEC, EN, VCCI, Laser Class 1, etc. |
| Warranty | Limited Lifetime Warranty |
| Included Accessories | 2-post rack kit |
