Description

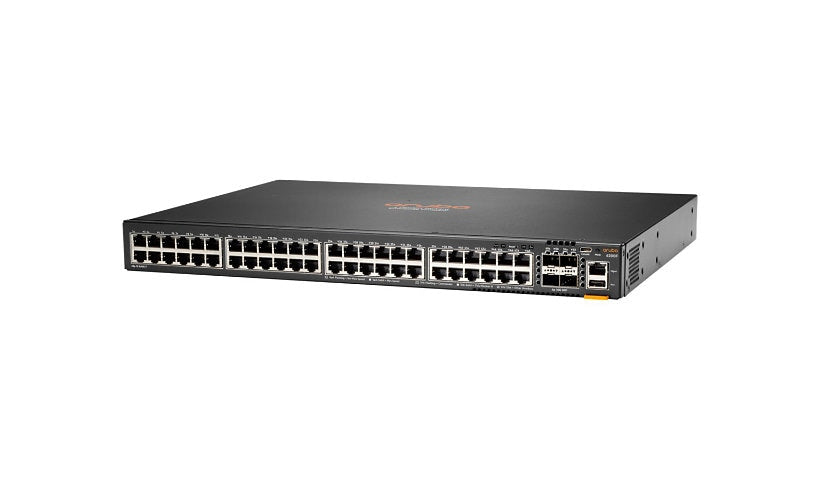

The HPE Aruba Networking CX 6200F 48G 4SFP+ TAA Switch is a powerful Layer 3 switch designed for enterprise branch offices, campuses, and SMB networks. With 48 Gigabit Ethernet ports, 4 SFP+ uplinks, and robust Layer 3 capabilities, it delivers high performance, operational efficiency, and simplified management through Aruba’s AOS-CX operating system.
Built on a modern ARM Cortex-A72 processor with 8 GB RAM and 16 GB flash memory, this TAA-compliant switch features advanced security, automation, and analytics. It also supports Virtual Stacking Framework (VSF), enabling scalable deployments of up to 8 units with a maximum stacking distance of 10 kilometers.
With a switching capacity of 176 Gbps and PoE Class 4 support, the CX 6200F is ideal for high-density environments with IoT devices, wireless APs, and modern networking demands.
| Category | Specification |
|---|---|
| Model | Aruba CX 6200F 48G 4SFP+ TAA Switch |
| Part Number | S0M88A#ABA |
| Ports | 48 x 10/100/1000 Base-T, 4 x 100/1000/10G SFP+ |
| Stacking | Max stacking distance: 10 km, up to 8 units |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency | 2.28 µs (1 Gbps), 1.46 µs (10 Gbps) |
| Layer Support | Layer 3 |
| MAC Address Table | 32,768 entries |
| PoE | PoE Class 4 |
| Airflow | Front and side to back |
| Processor | ARM Cortex-A72, 1.8 GHz |
| Memory | 8 GB RAM, 16 GB Flash |
| Form Factor | Rack-mountable (1U) |
| Power Supply | Internal, 200W, 80 PLUS Silver |
| Management | CLI, RMON, MIB |
| OS | AOS-CX |
| Security | FIPS 140-2, SSL, RADIUS, SSH, TACACS+ |
| Compliance | TAA Compliant, Multiple Global Certifications |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Dimensions (W x D x H) | 17.4" x 12.9" x 1.7" |
| Weight | 9.81 lbs |
| Included | 2-Post Rack Kit |
| Warranty | Limited Lifetime Warranty |
