Description

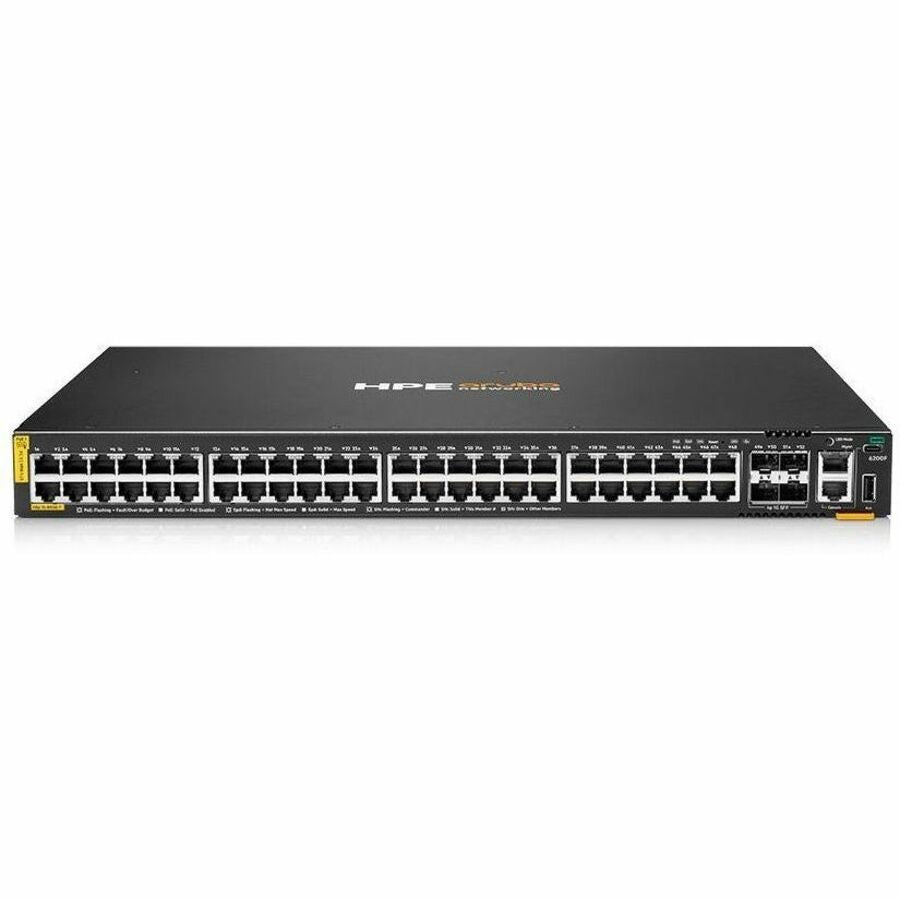

The HPE Aruba CX 6200F 48G Class-4 PoE 4SFP 740W Switch is a high-performance, Layer 3 managed switch engineered for modern enterprise access networks. Ideal for branch offices, campuses, and SMBs, this switch delivers enterprise-grade automation, analytics, and scalability. With 48 Gigabit PoE+ ports and 4 SFP uplinks, it provides ample connectivity for IoT devices, access points, and IP cameras.
Powered by a 1.8GHz ARM Cortex-A72 processor and Aruba’s AOS-CX operating system, the CX 6200F enables simplified configuration, robust security, and enhanced visibility. The switch supports stacking of up to 8 units and delivers up to 176 Gbps switching capacity and 130.9 Mpps throughput, with a PoE budget of 740W for demanding powered devices.
Built to endure, it features robust security protocols, advanced Layer 3 routing, jumbo frame support, and comprehensive QoS, ensuring consistent and secure network performance in any environment.
| Category | Specification |
|---|---|
| Model Number | S0M85A#ABA |
| Form Factor | Rack-mountable (1U) |
| Ports | 48 x 10/100/1000 PoE+ RJ-45, 4 x 1G SFP uplinks |
| PoE Budget | 740W (IEEE 802.3af/at - Class 4) |
| Processor | 1x ARM Cortex-A72, 1.8 GHz |
| Memory | 8 GB RAM, 16 GB Flash |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency | 2.28 µs (1 Gbps), 1.46 µs (10 Gbps) |
| Stacking | Up to 8 units, 40 Gbps stacking bandwidth |
| OS | Aruba AOS-CX |
| Layer Support | Layer 3 |
| Management | CLI, USB, RJ-45 Console, Web GUI, RMON, SNMP, MIB |
| Security & Encryption | RADIUS, TACACS+, SSH, SSL, FIPS 140-2 |
| Routing Protocols | OSPFv2/v3, RIP-2, IGMPv2/v3, MLDv2 |
| MAC Address Table | 32,768 entries |
| Jumbo Frame Support | Up to 9220 bytes |
| Certifications | FCC Class A, EN 55032 Class A, UL 62368-1, CE, VCCI, etc. |
| Power Supply | Internal, AC 100-240V, 50/60Hz, 80 PLUS Gold |
| Airflow Direction | Front and side to back |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W x D x H) | 17.4 x 12 x 1.7 in |
| Weight | 11.31 lbs |
| Warranty | Limited Lifetime Warranty |
| Included Accessories | 2-Post Rack Mount Kit |
