Description

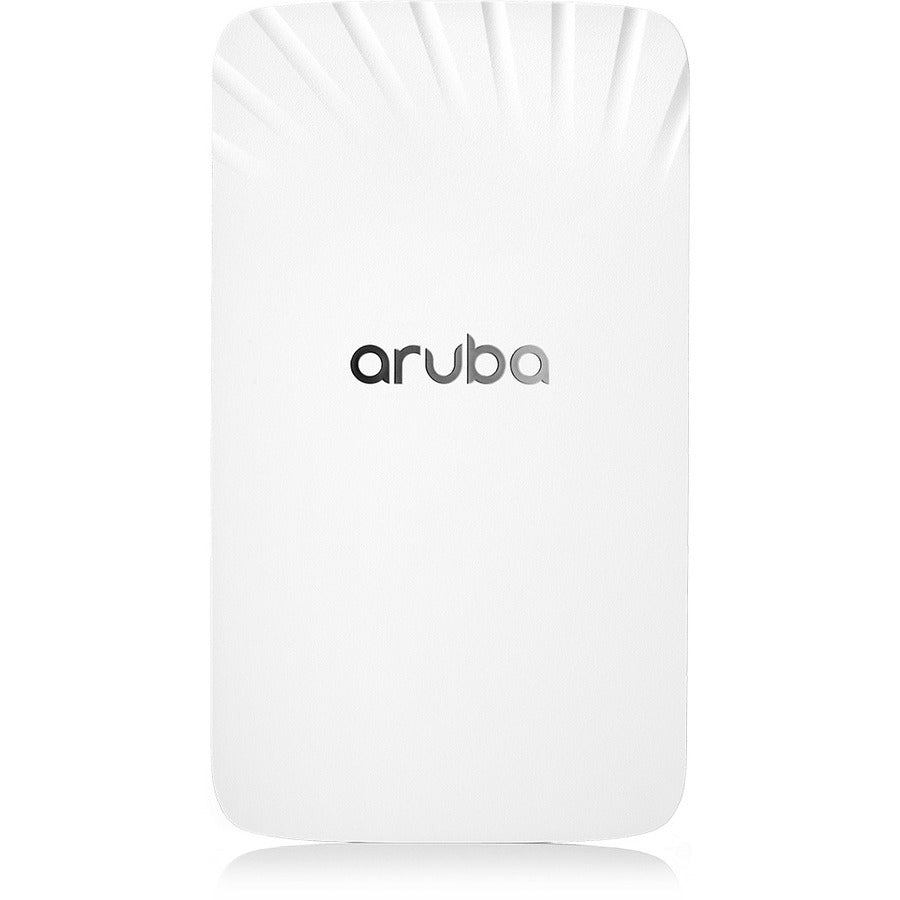

The HPE Aruba Networking AP-503HR (US) is part of the 500H Series Unified Hospitality Access Points, engineered to provide affordable, secure Wi-Fi 6 coverage in compact spaces like hotels, dormitories, and remote offices. This remote AP bundle includes the access point, desk mount, NA power cord, and power adapter for easy desktop deployment.
With a 1.5 Gbps combined throughput, Bluetooth 5, Zigbee support, and WPA3 security, it enables seamless, future-proof connectivity for teleworkers and guests. Built-in semi-directional antennas optimize performance when wall or desk-mounted. This model supports advanced features such as OFDMA, TWT for IoT power efficiency, Dynamic Segmentation, and Zero Touch Provisioning, making it ideal for plug-and-play scenarios without on-site IT support.
Enjoy AI-powered unified management via Aruba Central and benefit from a limited lifetime warranty with enterprise-class security and flexibility.
| Specification | Details |
|---|---|
| Product Number | R7G97A |
| Model | AP-503HR (US) |
| Wireless Standards | Wi-Fi 6 (802.11ax), Bluetooth 5.0, Zigbee |
| Radio Configuration | Dual radio: 2x2 MIMO per band (2.4 GHz & 5 GHz) |
| Max Data Rate | Up to 1.5 Gbps combined (2.4GHz: 287 Mbps / 5GHz: 1.2 Gbps) |
| Ethernet Ports | 1x 1GbE uplink, 4x 1GbE downlink (auto-sensing, RJ-45) |
| Mounting Options | Wall mount or optional desktop stand |
| Antennas | Integrated semi-directional (peak gain: 2.4GHz: 5.2 dBi, 5GHz: 5.4 dBi) |
| Power Consumption | Up to 50W |
| Security Features | WPA3, Enhanced Open (OWE), Dynamic Segmentation, TPM |
| Management | HPE Aruba Central (cloud-based), Zero Touch Provisioning |
| Dimensions | 5.9 x 3.4 x 1.9 in (150 x 86 x 48 mm) |
| Weight | 0.8 lb (0.36 kg) |
| Certifications | Wi-Fi CERTIFIED™ 6, Bluetooth SIG, WPA3, FCC, CE, UL/IEC/EN 62368-1, and others |
| Regulatory Compliance | FCC/ISED, CE, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Bundle Includes | AP-503HR, desk mount, NA power cord, power adapter |
| Warranty | Limited lifetime warranty |
