Description

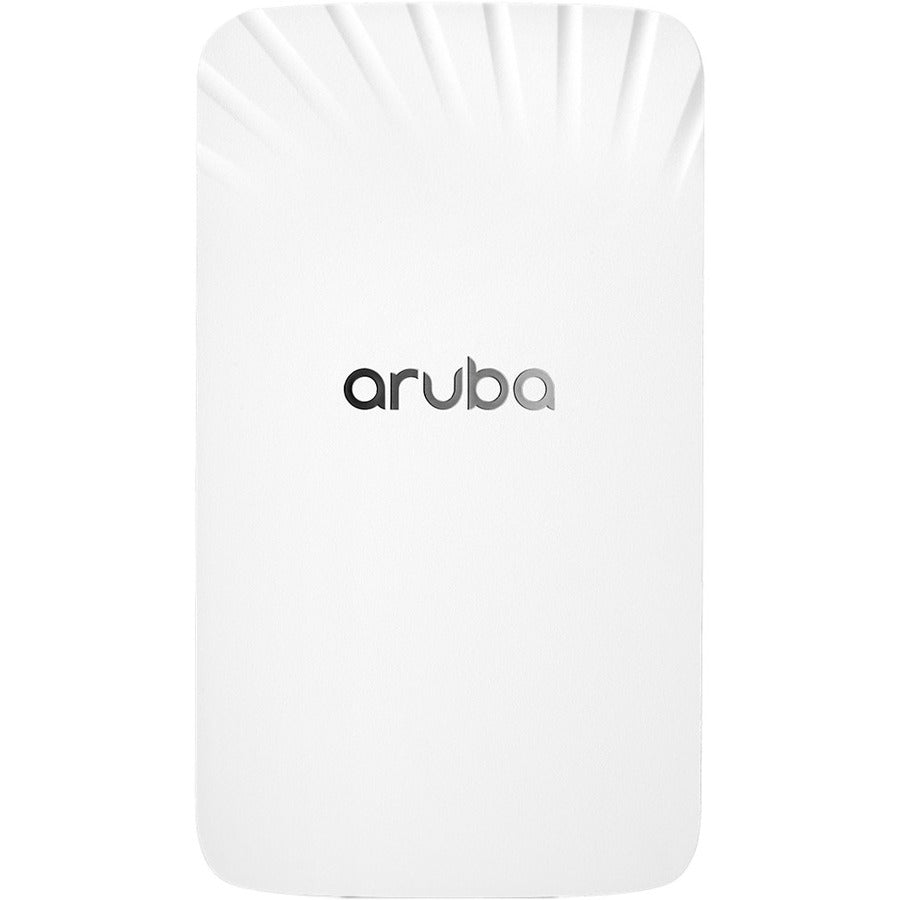

The HPE Aruba Networking AP-505HR (US) Unified Remote Access Point delivers reliable, high-performance Wi-Fi 6 in a compact, versatile form factor designed for hospitality and remote deployments. Part of the Aruba 500H Series, this model offers up to 1.5 Gbps combined wireless throughput, enhanced security with WPA3, built-in IoT support with Bluetooth 5 and Zigbee, and Zero Touch Provisioning for effortless deployment.
With five Ethernet ports (including a 2.5GbE uplink), USB, and PoE out capabilities, the AP-505HR is ideal for hotel rooms, dormitories, and small office setups. The bundle includes the access point, desk mount, power adapter, and US power cord—ready for out-of-the-box deployment in remote and hospitality environments.
| Category | Details |
|---|---|
| Model | HPE Aruba Networking AP-505HR (US) |
| Product Number | R3V57A |
| Form Factor | Wall-mount or desk-mount (mount included) |
| Wireless Standards | Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Max Data Rate | 1.5 Gbps (combined: 1.2 Gbps @ 5GHz + 287 Mbps @ 2.4GHz) |
| MIMO | 2x2 MU-MIMO with OFDMA support |
| Antenna Type | Integrated semi-directional antennas (peak gain: 5.4 dBi @ 5GHz) |
| Radios | Dual-band 2.4 GHz & 5 GHz |
| Ports | 1x 2.5G Smart Rate uplink, 4x 1G downlink, 1x USB, PoE Out on 2 ports |
| Bluetooth/Zigbee | Integrated Bluetooth 5.0 & Zigbee support |
| Security | WPA3, Enhanced Open (OWE), TPM, Dynamic Segmentation |
| Power Consumption | Max 50W |
| Power Options | PoE (IEEE 802.3at) or included power adapter |
| Management | Managed via HPE Aruba Networking Central |
| Mounting Options | Desk mount included, wall-mount capable |
| Certifications | Wi-Fi CERTIFIED 6, FCC/ISED, CE, UL/IEC/EN 62368-1, and more |
| Dimensions | 5.9 x 3.4 x 1.9 in (15 x 8.6 x 4.8 cm) |
| Weight | 0.8 lb (0.36 kg) |
| Package Contents | Access point, desk mount, power adapter, and US power cord |
| Warranty | Limited lifetime warranty |
