Description

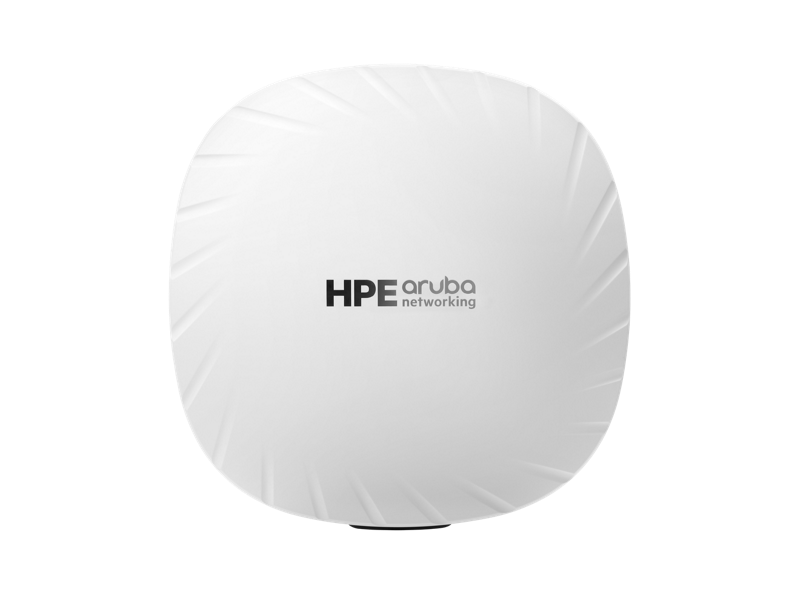

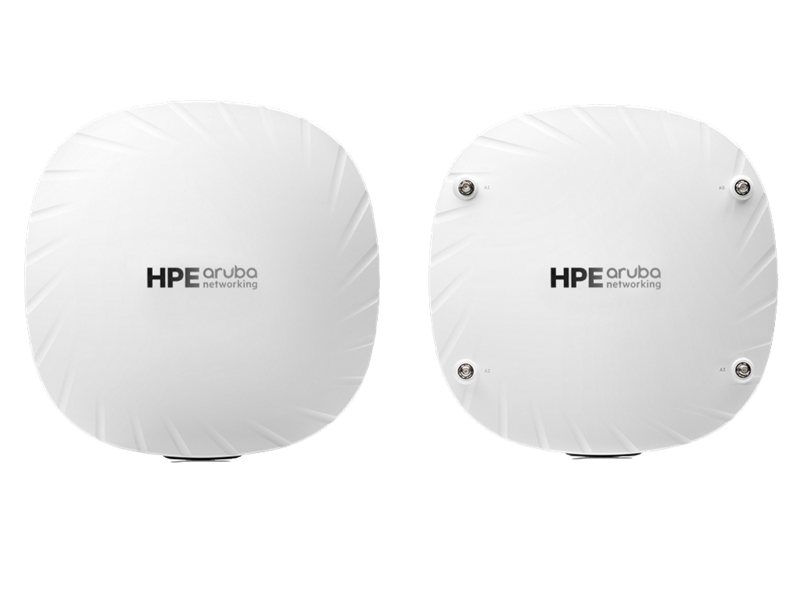

The HPE Aruba Networking AP-535 (JP) is a high-performance Wi-Fi 6 (802.11ax) access point purpose-built for dense mobile and IoT environments such as large offices, schools, and hospitals in Japan. Equipped with dual-radio 4x4 MIMO, OFDMA, and MU-MIMO capabilities, it delivers an aggregate data rate of up to 2.97 Gbps.
Designed for seamless, secure, and scalable connectivity, the AP-535 includes integrated omnidirectional antennas, ClientMatch technology, Bluetooth 5, Zigbee, and robust policy-based security features including WPA3 and Dynamic Segmentation. With dual 5 Gbps Smart Rate ports, zero-touch provisioning, and AI-powered monitoring through Aruba Central, this model ensures simplified deployment and optimal network performance.
| Specification | Details |
|---|---|
| Product Number | JZ335A (Japan Only) |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radios | Dual-radio, 4x4 MIMO with OFDMA and MU-MIMO |
| Max Data Rate | Up to 2.97 Gbps (1.15 Gbps @ 2.4GHz, 1.82 Gbps @ 5GHz) |
| Antennas | 4 integrated dual-band omnidirectional antennas |
| Antenna Gain | 3.5 dBi (2.4GHz), 5.4 dBi (5GHz) |
| Ethernet Ports | (2) HPE Smart Rate RJ-45, up to 5 Gbps |
| Power Options | IEEE 802.3bt (Class 5), IEEE 802.3at PoE, or DC input |
| Power Consumption | Max 30W (PoE 802.3bt), 25W (PoE 802.3at, IPM enabled), 29W (DC) |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| IoT Support | Integrated Bluetooth 5, Zigbee (802.15.4), USB port |
| Mounting | Pre-installed bracket; optional mounting kits available |
| Dimensions (W x D x H) | 270 x 270 x 80 mm |
| Weight | 1.0 kg |
| Certifications | Wi-Fi CERTIFIED 6, WPA/WPA2/WPA3, UL2043 Plenum Rated |
| Management | Aruba Central (AI-powered), Zero Touch Provisioning |
| Warranty | Limited Lifetime Warranty |
