Description

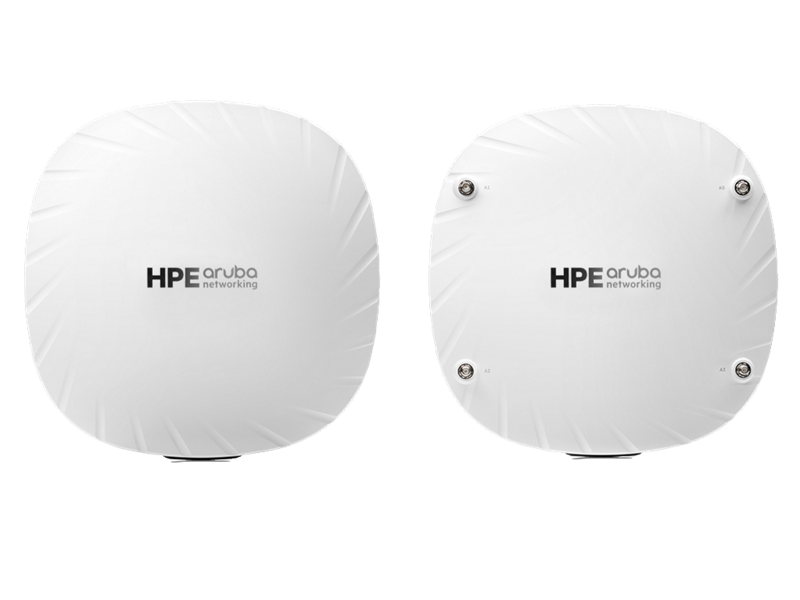

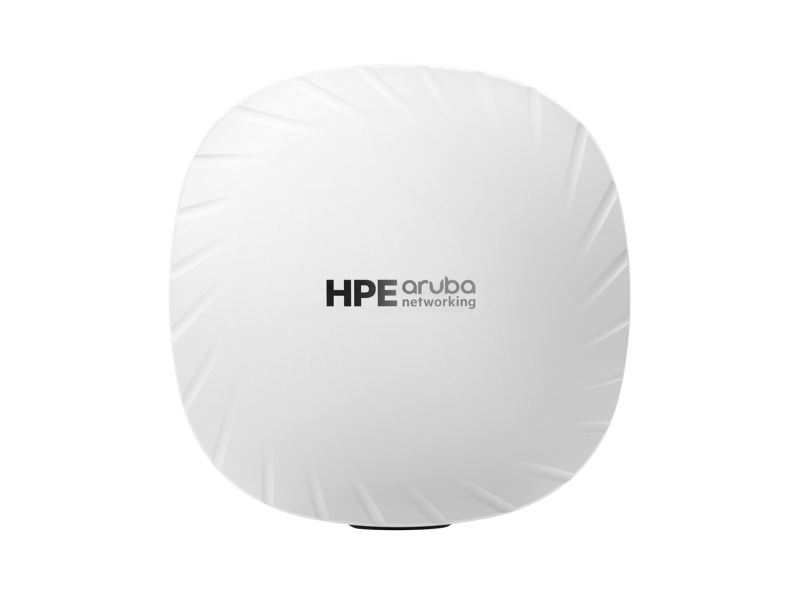

The HPE Aruba Networking AP-535 (IL) is a high-performance, TAA-compliant Wi-Fi 6 (802.11ax) access point designed for dense indoor environments such as enterprise campuses, healthcare, and large venues. Featuring dual radios with 4x4 MU-MIMO, OFDMA, Target Wake Time (TWT), and integrated omni-directional antennas, it delivers an aggregate data rate of up to 2.97 Gbps.
With two Smart Rate Ethernet ports supporting up to 5 Gbps and integrated Bluetooth 5 and Zigbee radios, this access point is future-ready for IoT connectivity. It also supports advanced security features like WPA3, Enhanced Open, and Policy Enforcement Firewall (PEF), plus a Trusted Platform Module (TPM) for credential protection. Powered via 802.3bt/at PoE or DC, it’s an ideal solution for organizations demanding secure, efficient, and scalable wireless infrastructure.
| Specification | Details |
|---|---|
| Product Number | JZ344A |
| Product Model | HPE Aruba Networking AP-535 (IL) |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration | Dual-radio 4x4 MIMO (2.4 GHz and 5 GHz) with OFDMA and MU-MIMO |
| Max Data Rate | Up to 2.97 Gbps (1.15 Gbps @ 2.4 GHz + 1.8 Gbps @ 5 GHz) |
| Antenna Type | 4x Integrated dual-band omni antennas |
| Antenna Gain | 3.5 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
| Ports | 2x HPE Smart Rate RJ-45 (up to 5 Gbps) |
| Power Options | 802.3bt (Class 5) / 802.3at PoE or DC (via optional power supply) |
| Max Power Consumption | 30W (PoE), 29W (DC), 25W (PoE with IPM enabled) |
| Mounting | Integrated bracket; optional mounting kits available |
| Security | WPA3, Enhanced Open, PEF, TPM module, Dynamic Segmentation |
| IoT Support | Integrated Bluetooth 5 and Zigbee radios, USB port |
| Dimensions (W x D x H) | 270 x 270 x 80 mm |
| Weight | 1.0 kg |
| Certifications | TAA Certified, UL2043 Plenum, Wi-Fi 6 Certified, WPA/WPA2/WPA3, Bluetooth SIG |
| Warranty | Limited lifetime warranty |
