Description

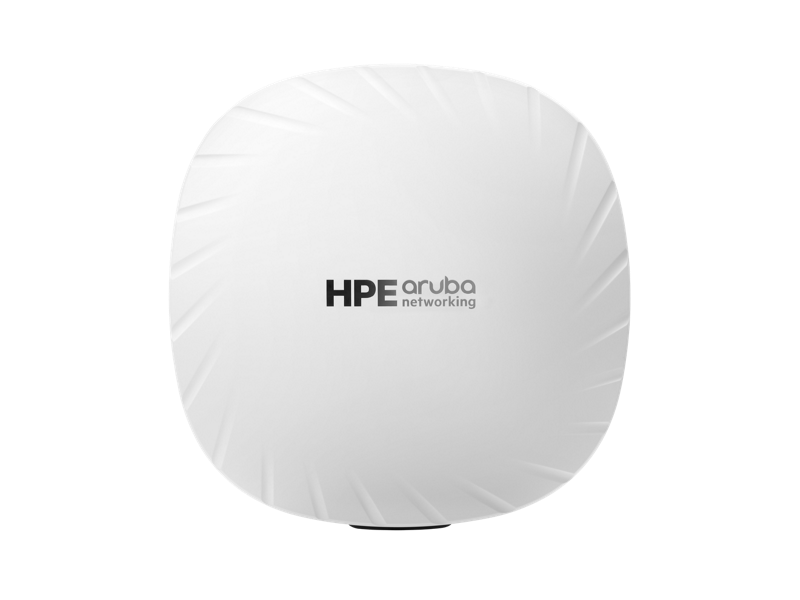

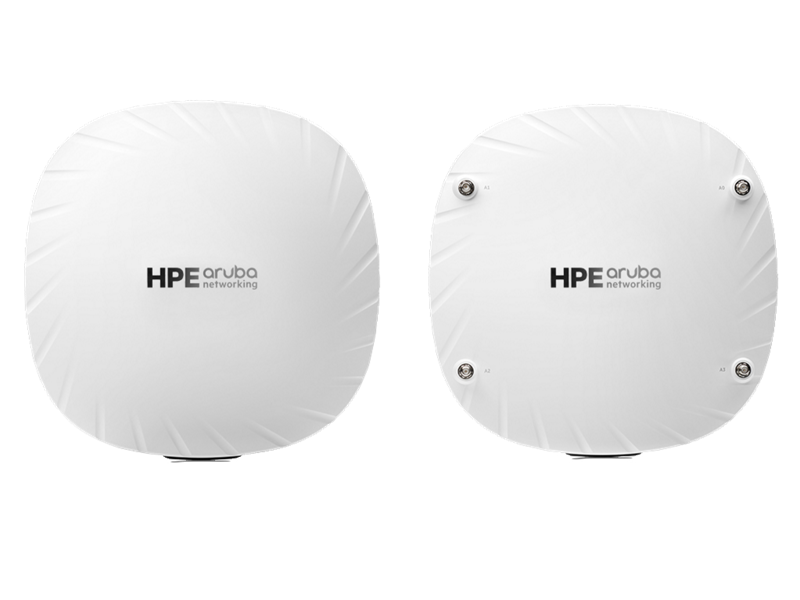

The HPE Aruba Networking AP‑535 (EG) is a high-performance, TAA-compliant Wi-Fi 6 access point designed for high-density environments like enterprise campuses, meeting spaces, and healthcare facilities. Supporting dual-radio 4x4 MU-MIMO with OFDMA, it delivers up to 2.97 Gbps aggregate throughput and ensures optimal efficiency across multiple client types. With integrated omni-directional antennas, Bluetooth 5, and Zigbee support, this AP also serves as a robust IoT platform. Enhanced security features like WPA3, Dynamic Segmentation, and TPM make it ideal for organizations demanding strong access control and data protection. Includes Smart Rate RJ-45 ports and supports up to 5 Gbps wired uplink.
| Specification | Details |
|---|---|
| Product Number | JZ343A |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radios | Dual-radio 4x4 MIMO, MU-MIMO, OFDMA |
| Antenna | Four internal dual-band omni-directional antennas |
| Peak Data Rates | 2.4 Gbps (5GHz) + 1.15 Gbps (2.4GHz), Aggregate: 3.55 Gbps |
| Ports | (2) HPE Smart Rate RJ-45 (1/2.5/5 Gbps) |
| Power Input | IEEE 802.3bt (Class 5), 802.3at PoE, or optional direct DC |
| Power Consumption | Max 30W (PoE), 29W (DC), 25W (IPM) |
| Mounting | Pre-installed bracket (optional mounting kit available) |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall (PEF) |
| IoT Support | Integrated Bluetooth 5, Zigbee (802.15.4), USB port |
| Certifications | UL2043, Wi-Fi CERTIFIED 6, WPA/WPA2/WPA3, Bluetooth SIG |
| TAA Compliance | Yes |
| Region Availability | Egypt only |
| Dimensions | 80 x 270 x 270 mm (3.1 x 10.6 x 10.6 in) |
| Weight | 1.0 kg (2.2 lbs) |
| Warranty | Limited Lifetime Warranty |
