Description

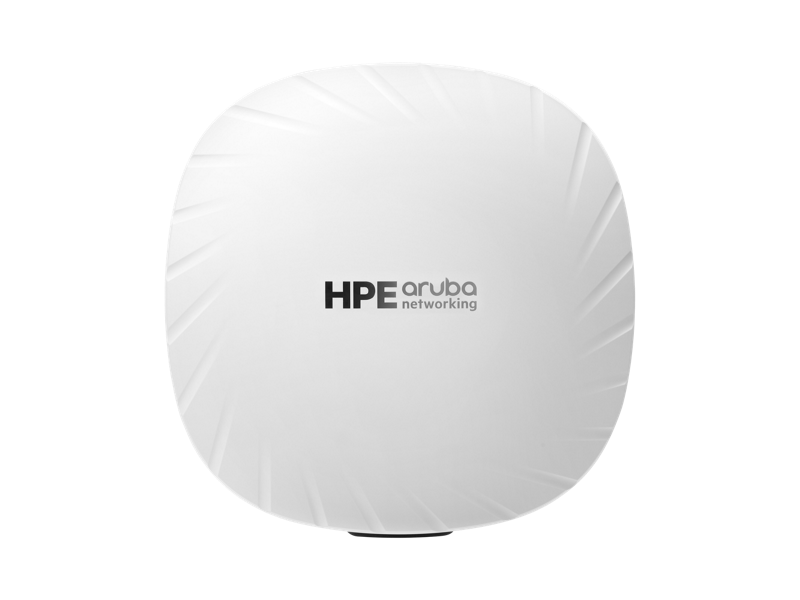

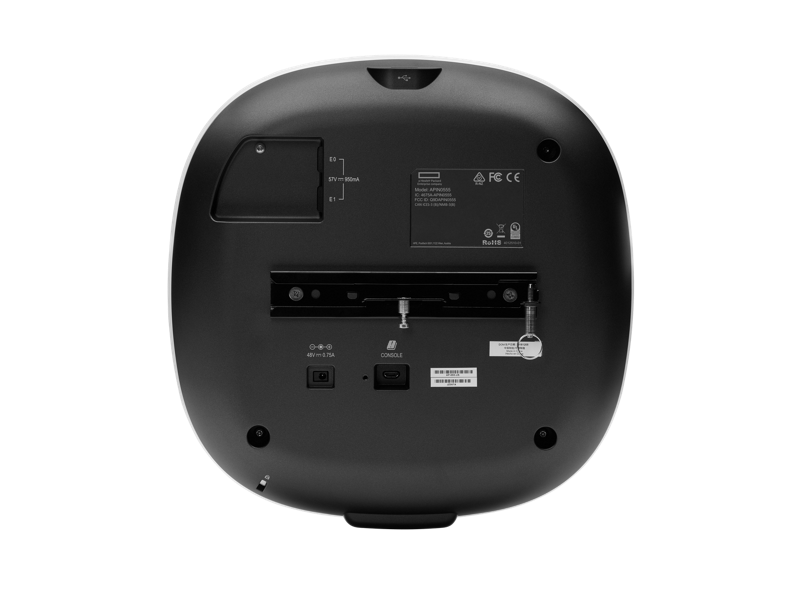

The HPE Aruba Networking AP‑555 (JP) TAA is a high-performance indoor campus access point engineered for high-density enterprise environments. Supporting dual-radio 8x8/4x4 MIMO and optional tri-radio mode, it delivers blazing speeds up to 5.37 Gbps. Built on Wi‑Fi 6 (802.11ax) standards, the AP‑555 enhances multi-user performance with OFDMA, MU-MIMO, and Target Wake Time (TWT). It’s IoT-ready with integrated Bluetooth 5 and Zigbee radios, and includes enterprise-grade security features such as WPA3, Policy Enforcement Firewall (PEF), and Trusted Platform Module (TPM). With two 5 Gbps Smart Rate ports and Intelligent Power Monitoring, this access point is ideal for scalable, efficient deployments.
| Specification | Details |
|---|---|
| SKU / Part Number | JZ365A |
| Model Name | HPE Aruba Networking AP‑555 (JP) |
| Deployment Type | Indoor, Ceiling-Mountable |
| Wi-Fi Standard | Wi‑Fi 6 (IEEE 802.11ax) |
| Radios | Dual-radio 8x8/4x4 MIMO Optional tri-radio (2x 5GHz + 1x 2.4GHz) |
| Maximum Data Rate | Up to 5.37 Gbps |
| MIMO Support | 8x8 MU-MIMO (5GHz), 4x4 MU-MIMO (2.4GHz and 2nd 5GHz) |
| Internal Antennas | Downtilt omni-directional for 4x4 and 8x8 operation |
| Peak Antenna Gain | 4.3 dBi (2.4GHz), 5.8 dBi (5GHz), 5.5/5.6 dBi in tri-radio mode |
| Ethernet Ports | 2x HPE Smart Rate (RJ‑45), up to 5 Gbps each |
| USB Ports | 1x USB 2.0 Host (Type A) |
| Console Port | Micro-B USB |
| Power Options | DC, PoE (802.3bt or dual 802.3at) |
| Max Power Consumption | 38.2W (PoE), 32.6W (DC), Idle: ~15W, Deep Sleep: ~3.8W |
| Mounting | Pre-installed bracket (mount kit sold separately) |
| Security | WPA3, Enhanced Open, TPM, PEF, ClientMatch |
| IoT Capabilities | Integrated Bluetooth 5, Zigbee (802.15.4), USB expansion |
| Certifications | TAA Compliant, UL2043, Wi-Fi Certified a/b/g/n/ac/ax, WPA2/WPA3 |
| Dimensions (H x W x D) | 58 x 260 x 260 mm |
| Weight | 1.57 kg |
| Warranty | Limited Lifetime |
