Description

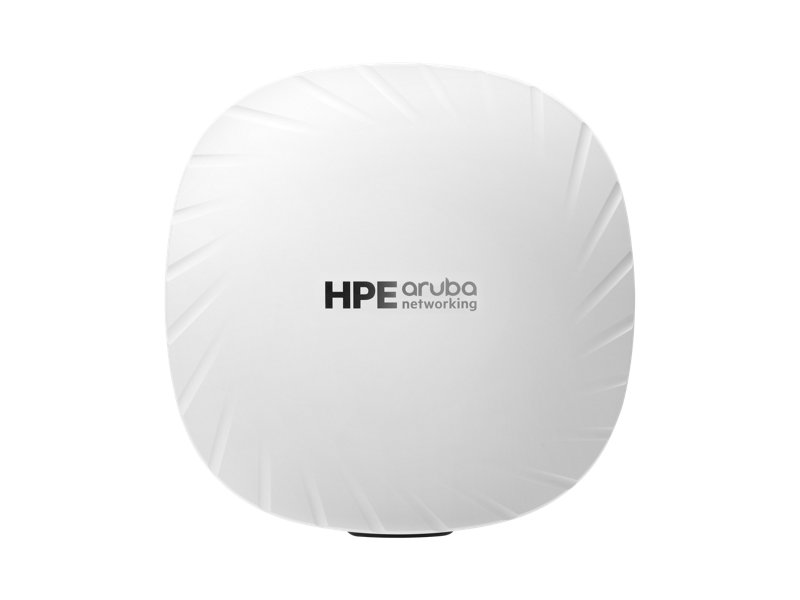

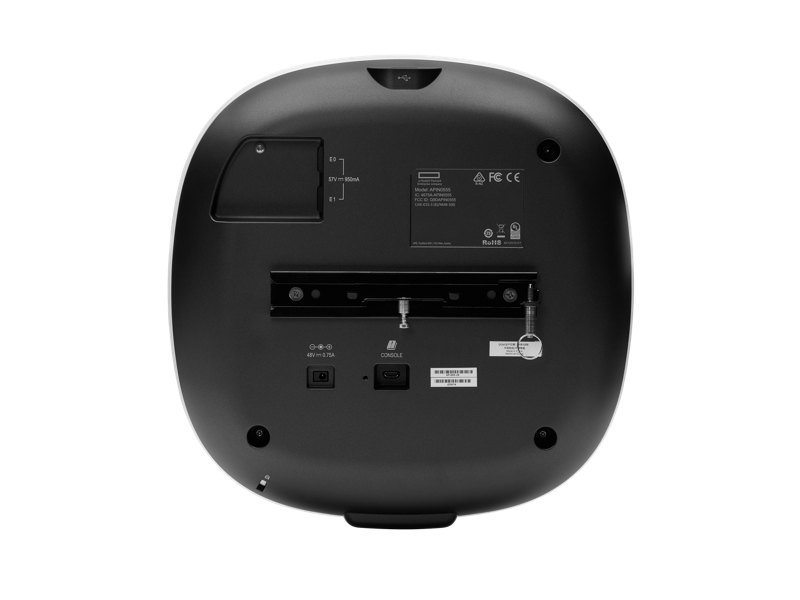

The HPE Aruba Networking AP-555 (IL) is a high-performance Wi-Fi 6 indoor access point designed for extremely high-density environments such as large campuses and enterprise spaces. Delivering a combined data rate of up to 5.37 Gbps, it supports dual-radio 8x8/4x4 MIMO and an optional tri-radio mode for enhanced wireless performance.
Engineered for secure, scalable, and efficient connectivity, the AP-555 includes advanced features such as OFDMA, bi-directional MU-MIMO, and Target Wake Time (TWT). It also offers Dynamic Segmentation, built-in Bluetooth 5 and Zigbee radios, Trusted Platform Module (TPM), and AI-powered analytics, all managed through HPE Aruba Networking Central.
Certified for plenum environments and TAA-compliant, the AP-555 is ideal for Israeli enterprises seeking high-throughput wireless access with strong security and IoT-readiness.
| Specification | Details |
|---|---|
| Part Number | JZ364A |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radios | Dual-radio (8x8/4x4); Optional tri-radio (4x4 on each 5 GHz + 2.4 GHz) |
| Max Data Rate | Up to 5.37 Gbps (4.8 Gbps on 5 GHz, 1.1 Gbps on 2.4 GHz) |
| Antenna Type | Integrated omni-directional antennas, optimized for ceiling mount |
| Antenna Gain | 5 GHz: 5.8 dBi (8x8 MIMO); 2.4 GHz: 4.3 dBi (4x4 MIMO) |
| Ethernet Ports | 2x HPE Smart Rate RJ-45 (up to 5 Gbps) |
| USB Ports | 1x USB 2.0 Host (Type A) |
| Console Port | Proprietary micro-B USB |
| Power Options | DC or PoE (802.3bt or dual 802.3at) |
| Max Power Consumption | 38.2W (PoE); 32.6W (DC); Idle: 15W |
| Mounting | Ceiling mount bracket pre-installed; mounting kit optional |
| Security Features | WPA3, Enhanced Open (OWE), TPM, Policy Enforcement Firewall (PEF) |
| IoT Support | Integrated Bluetooth 5 and Zigbee (802.15.4); USB expansion |
| Certifications | UL2043, Wi-Fi CERTIFIED a/b/g/n/ac/ax, WPA/WPA2/WPA3, CE, FCC/ISED |
| Regulatory Compliance | RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1 |
| Dimensions (H x W x D) | 58 x 260 x 260 mm |
| Weight | 1.57 kg |
| Warranty | Limited Lifetime Warranty |
