Description

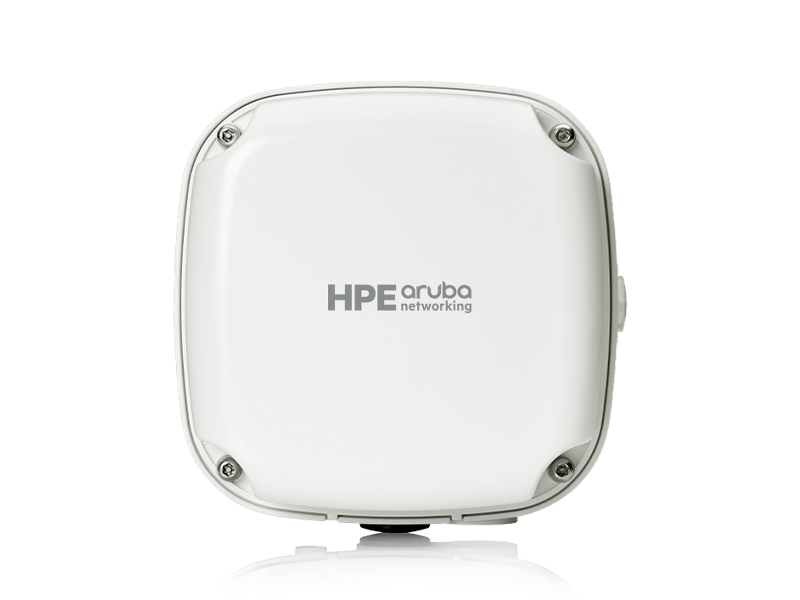

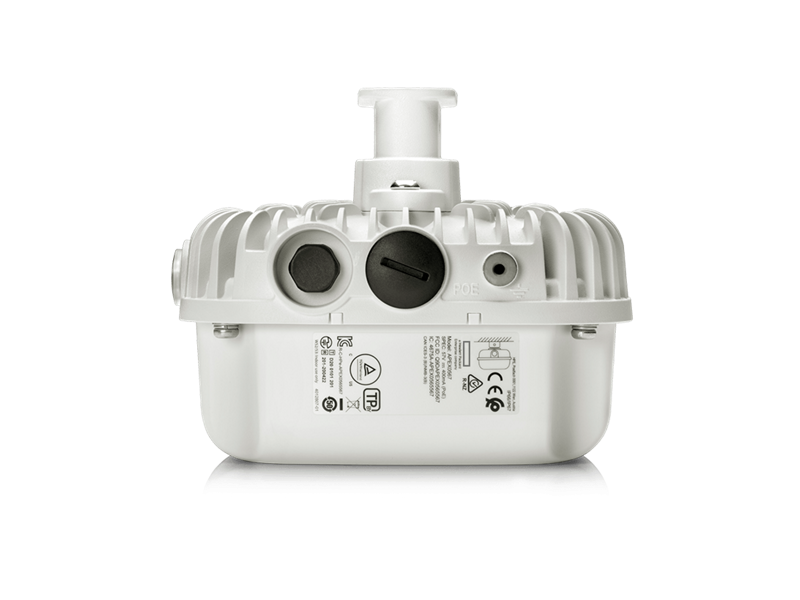

The HPE Aruba Networking AP-565EX (US) is a high-performance, ruggedized outdoor access point built for hazardous environments with ignitable gases, vapors, or liquids. Certified for Class 1 Division 2 and ATEX Zone 2, this Wi-Fi 6-enabled AP ensures reliable connectivity even in extreme industrial locations like oil rigs, mining operations, and manufacturing sites.
Featuring dual 2x2 MIMO radios and internal omni-directional antennas, it delivers up to 1.49 Gbps of aggregate throughput. The built-in Bluetooth 5 and 802.15.4 (Zigbee) radio make it IoT-ready, while Dynamic Segmentation, ClientMatch, and policy enforcement firewalls enhance security and performance. Weatherproof and hardened for temperatures from –40°C to +65°C, the AP-565EX simplifies outdoor network expansion in mission-critical environments.
| Specification | Details |
|---|---|
| Model Number | R4W63A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Antenna | Internal omni, dual-band 2x2 MIMO |
| Max Aggregate Throughput | Up to 1.49 Gbps |
| Client Capacity | 256 clients per radio (recommended 50 active), 16 BSSIDs per radio |
| IoT Support | Bluetooth 5, Zigbee (802.15.4), TWT for IoT battery optimization |
| Certifications | Class 1 Division 2, ATEX Zone 2, Wi-Fi 6, UL2043, CB Scheme, RED, FCC |
| Radio Coverage | Dual-radio: 2.4 GHz (3.2 dBi), 5 GHz (5.4 dBi) |
| Security | WPA3, TPM, Enhanced Open, Dynamic Segmentation, Policy Enforcement Firewall |
| Interfaces | 1x RJ-45 (10/100/1000BASE-T), USB-C console, Reset button |
| PoE Input | 48V DC (802.3at/bt Class 3 or higher) |
| Power Consumption | Max: 15.6W, Idle: 4.2W, Deep-sleep: 1.7W |
| Operating Temperature | –40°C to +65°C |
| Enclosure | Weatherproof, hardened for outdoor and hazardous locations |
| Dimensions (WxDxH) | 16 x 16 x 12.1 cm |
| Weight | 1.03 kg |
| Mounting | Mount kits sold separately |
| Included Accessories | 1x Ethernet gland, grounding lug, USB-to-USB-C console cable |
| Warranty | Limited lifetime warranty |
