Description
Purpose-Built Wi‑Fi 6 for Hazardous Outdoor Environments

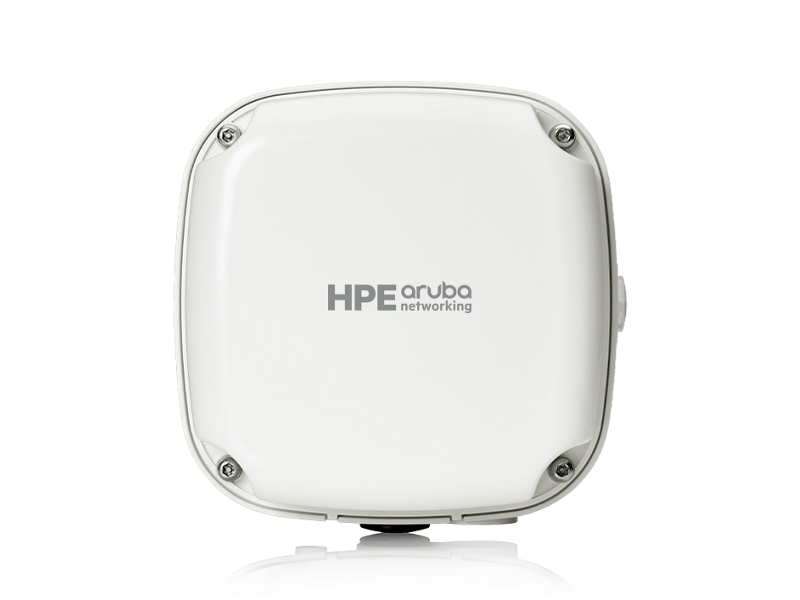

The HPE Aruba Networking AP-565EX (JP) is part of the ruggedized 560EX Series, engineered to deliver reliable Wi-Fi 6 connectivity in hazardous outdoor environments. With Class 1 Division 2 and ATEX Zone 2 certifications, this access point is ideal for deployments in oil fields, chemical plants, mining sites, and environments with explosive gases or vapors.
Equipped with dual radios (2x2 MIMO) and internal omni-directional antennas, the AP-565EX (JP) provides up to 1.49 Gbps of combined data throughput. Integrated Bluetooth 5 and Zigbee radios enable seamless IoT device support, while advanced features such as Dynamic Segmentation, ClientMatch, and WPA3 encryption bolster performance and security.

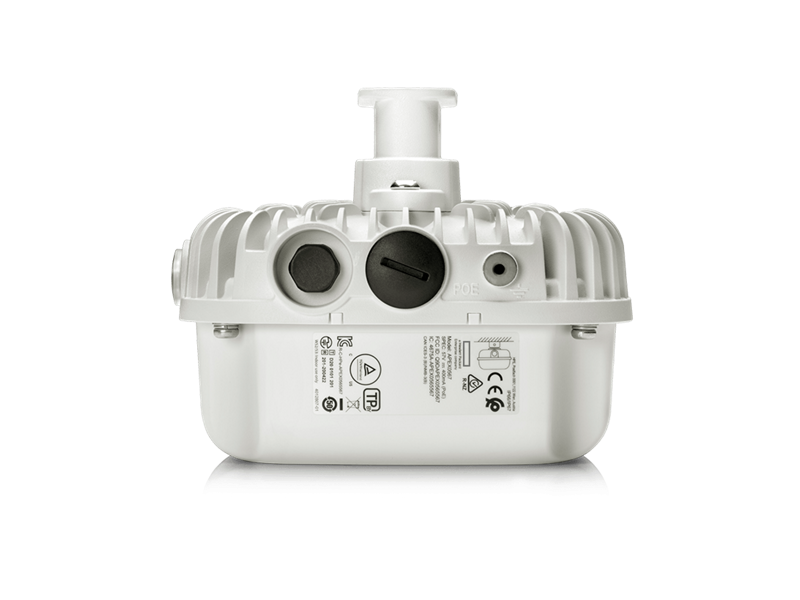

This AP comes with a USB-C console cable, grounding lug, and Ethernet gland. Mounting kits are sold separately.
| Attribute | Details |
|---|---|
| Product Number | R4W61A |
| Deployment Environment | Hazardous Outdoor (Class 1 Div 2, ATEX Zone 2) |
| Radio Configuration | Dual Radio 2x2 MIMO (2.4 GHz and 5 GHz) |
| Max Data Rate | Up to 1.49 Gbps |
| Antennas | Internal Omni-directional (5GHz: 5.4 dBi, 2.4GHz: 3.2 dBi) |
| BLE/Zigbee Antennas | Integrated; 3.3 dBi gain |
| IoT Support | Bluetooth 5, Zigbee (802.15.4) |
| Client Capacity | Up to 256 clients per radio |
| PoE Support | IEEE 802.3at/bt (Class 3 or higher), PoE PD 48VDC |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep Sleep: 1.7W |
| Connectivity Ports | 1x 10/100/1000BASE-T RJ-45 Ethernet, USB-C Console, Reset Button |
| Visual Indicators | Multi-color LED for system and radio status |
| Certifications | Wi-Fi 6, CB Scheme, UL2043, cTUVus, Class 1 Div 2, ATEX Zone 2 |
| Regulatory Compliance | FCC/ISED, CE, RED, EMC, LVD, IEC/EN/UL 62368-1 |
| Environmental Tolerance | -40°C to +65°C |
| Mounting | Mount kits sold separately |
| Dimensions (W x D x H) | 16 x 16 x 12.1 cm |
| Weight | 1.03 kg |
| Warranty | Limited Lifetime Warranty |
