Description

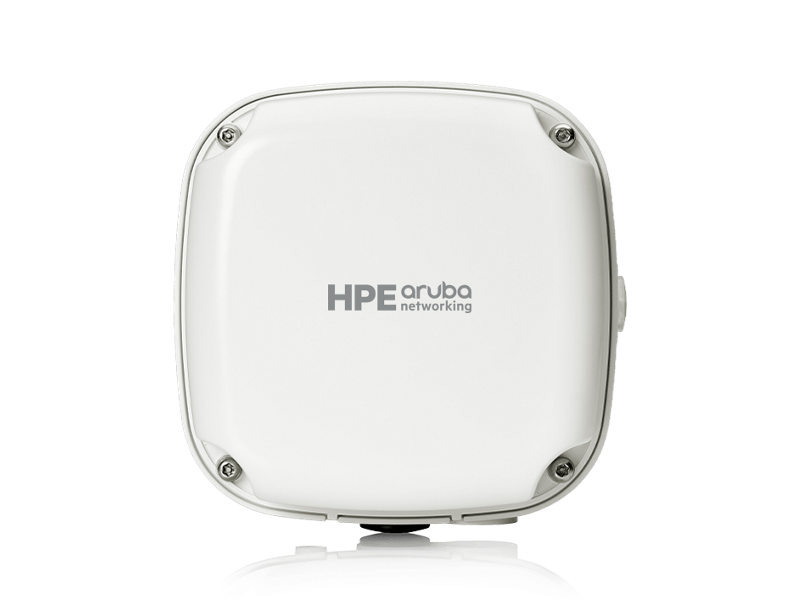

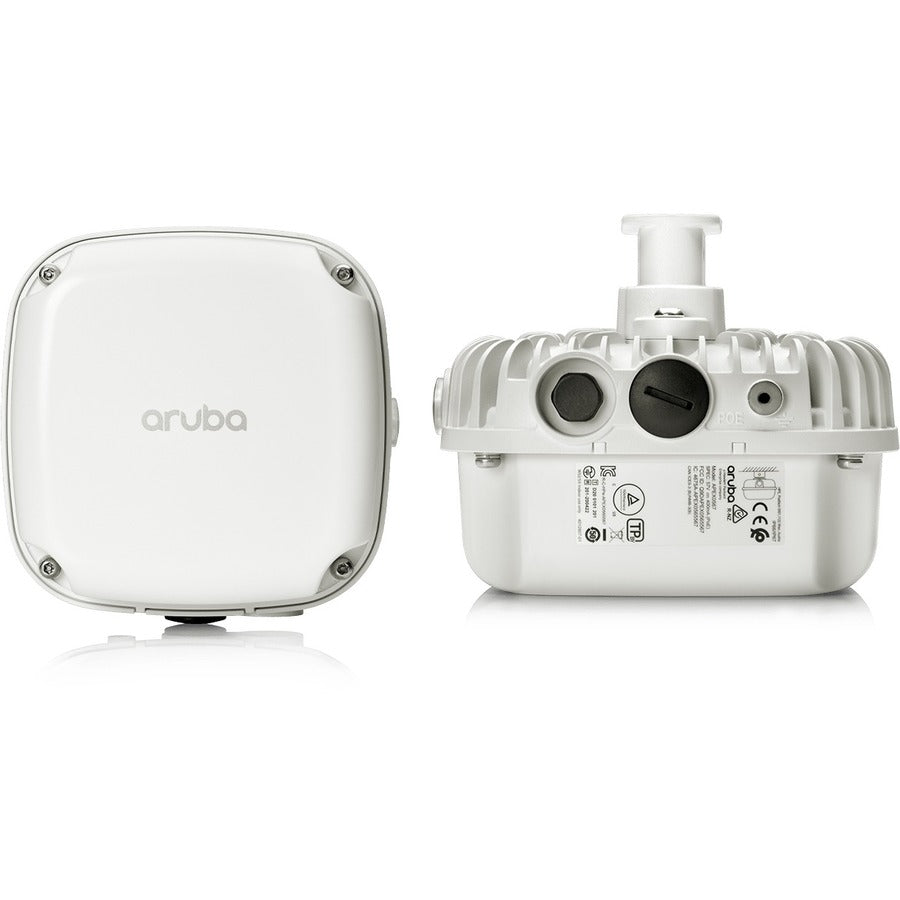

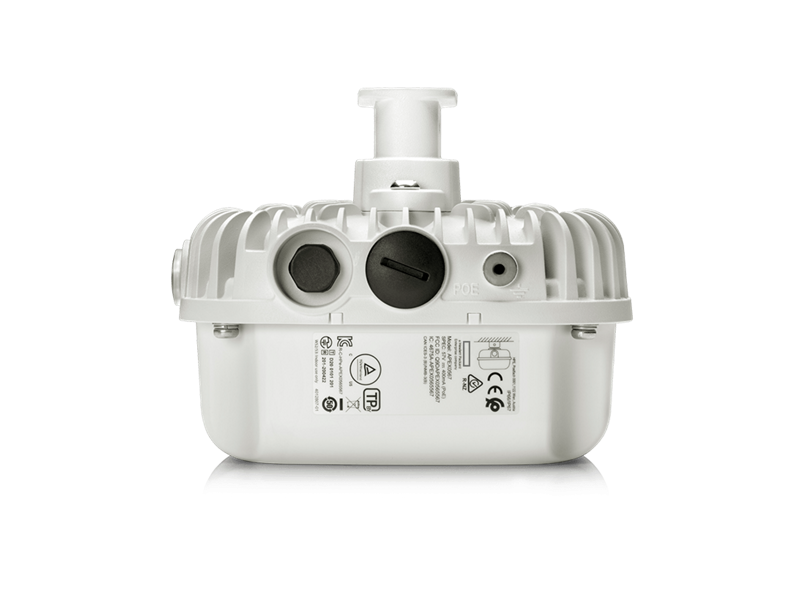

The HPE Aruba Networking AP-565EX (EG) is a rugged, high-performance outdoor access point designed specifically for hazardous locations such as oil rigs, refineries, and mining facilities. Certified for Class 1 Division 2 and ATEX Zone 2, this Wi-Fi 6-enabled access point delivers a combined data rate of up to 1.49 Gbps through dual 2x2 MIMO radios.
Built for extreme environments, the AP-565EX operates from -40°C to +65°C, with a weatherproof and dustproof design. It features integrated omni-directional antennas, internal Bluetooth 5 and Zigbee radios for IoT connectivity, and robust security including WPA3 and Trusted Platform Module (TPM) support.
Ideal for mission-critical wireless and IoT deployments, the AP-565EX ensures consistent performance, simplified deployment with Zero Touch Provisioning, and seamless management through Aruba Central.
Note: Includes grounding lug, USB to USB-C console cable, and Ethernet gland. Mounting kits sold separately.
| Attribute | Details |
|---|---|
| Model Number | R4W60A |
| Deployment Use | Outdoor, hazardous environments (C1D2, ATEX Zone 2) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), dual-radio 2x2 MIMO |
| Radio Bands | 5 GHz (5.4 dBi gain), 2.4 GHz (3.2 dBi gain) |
| IoT Support | Bluetooth 5, Zigbee (802.15.4), TWT for power-efficient IoT |
| Max Data Rate | 1.49 Gbps aggregate |
| Client Capacity | Up to 256 associated clients per radio (512 total), 50 active clients recommended |
| BSSIDs per Radio | 16 |
| Antenna Type | Internal omni-directional antennas |
| Ethernet Port | 1x RJ-45 10/100/1000BASE-T, PoE (802.3at/bt Class 3+) |
| Console Interface | USB-C |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep-sleep: 1.7W |
| Environmental Tolerance | Operating Temp: -40°C to +65°C, fully sealed, weatherproof |
| Certifications | Wi-Fi CERTIFIED 6, CB Scheme, cTUVus, UL2043, ATEX Zone 2, C1D2 |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| Dimensions (H x W x D) | 16 x 16 x 12.1 cm |
| Weight | 1.03 kg |
| Mounting | Optional mounting kits available (sold separately) |
| Warranty | Limited Lifetime Warranty |
