Description

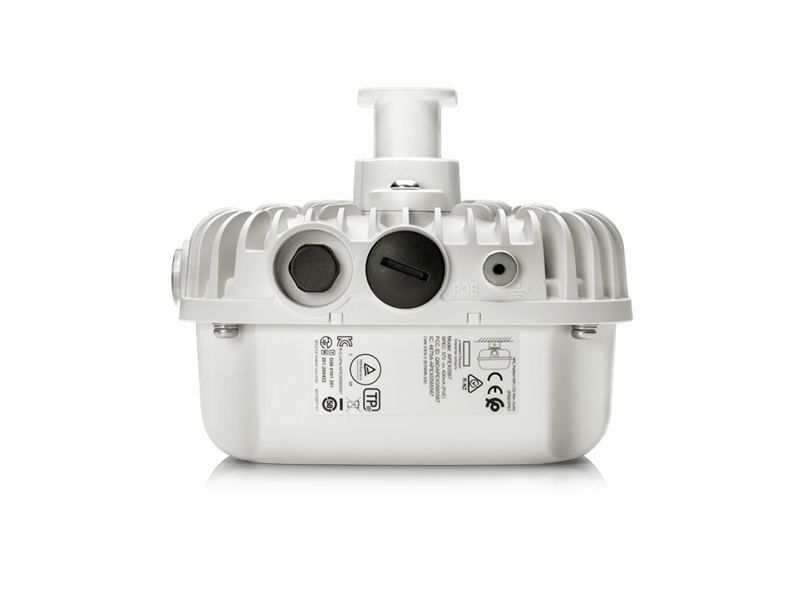

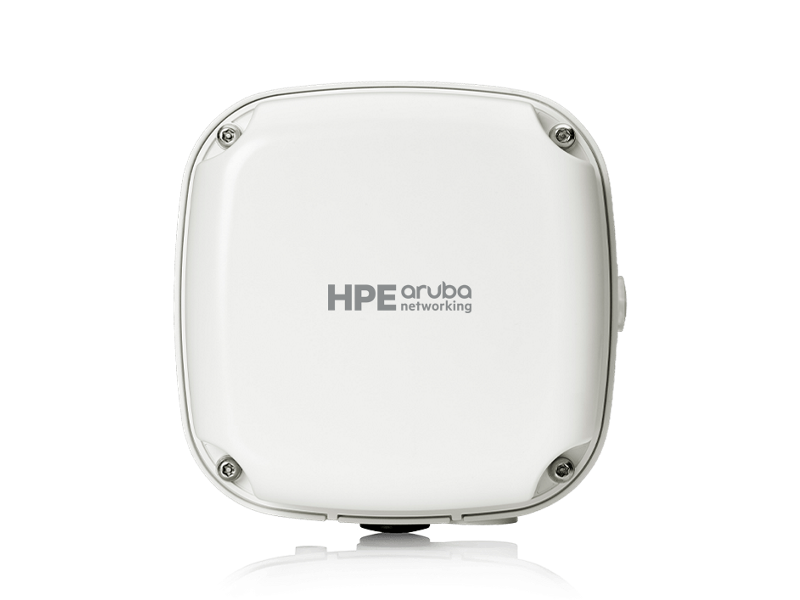

The HPE Aruba Networking AP-567EX (RW) is a rugged, dual-radio Wi-Fi 6 access point designed for hazardous locations. Certified for Class 1 Division 2 and ATEX Zone 2, it delivers reliable, high-speed connectivity in harsh outdoor environments such as oil fields, mining sites, and industrial zones.
With dual-band 2x2 Wi-Fi 6, support for Bluetooth 5 and Zigbee, and internal directional antennas, this AP offers up to 1.49 Gbps throughput and advanced features like ClientMatch™, Target Wake Time (TWT) for IoT, and Dynamic Segmentation for simplified policy enforcement.
Built to endure extreme temperatures (-40°C to +65°C), the AP-567EX enables Zero Touch Provisioning and integrates with HPE Aruba Networking Central for cloud-based management and AI-powered analytics.
| Specification | Details |
|---|---|
| SKU / Part Number | R4W66A |
| Model | AP‑567EX (RW) |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6), 802.11a/b/g/n/ac |
| Max Data Rate | Up to 1.49 Gbps aggregate |
| Radios | Dual-radio 2x2 MIMO (2.4 GHz and 5 GHz) |
| Antenna Type | Internal directional |
| Antenna Gain | 2.4 GHz: 7.0 dBi5 GHz: 6.7 dBi |
| IoT Support | Integrated Bluetooth 5 & Zigbee (802.15.4) |
| Mounting | Optional mounting kits (sold separately) |
| Power | PoE (802.3at/bt), 48V DCMax consumption: 15.6W |
| Ports | 1x 10/100/1000BASE-T (RJ-45)USB-C consoleReset button |
| Environmental Rating | -40°C to +65°C, fully sealed enclosure |
| Certifications | Class 1 Div 2, ATEX Zone 2, UL2043, CE, FCC, RED Directive |
| Management | Aruba Central, Zero Touch Provisioning |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Max Clients | Up to 256 per radio (recommended: 50 active clients) |
| Dimensions | 16 x 16 x 12.1 cm |
| Weight | 1.09 kg |
| Warranty | Limited lifetime warranty |
