Description
Industrial-Grade Wi-Fi 6 for Hazardous Environments

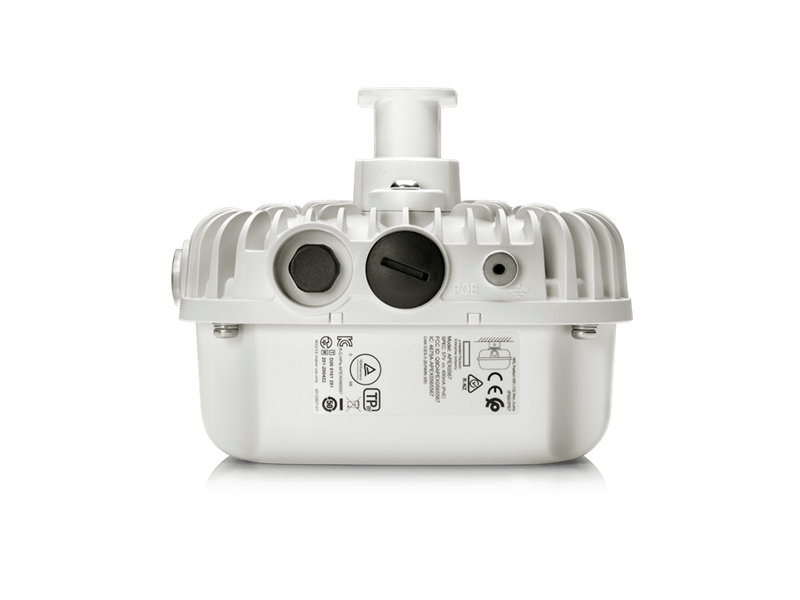

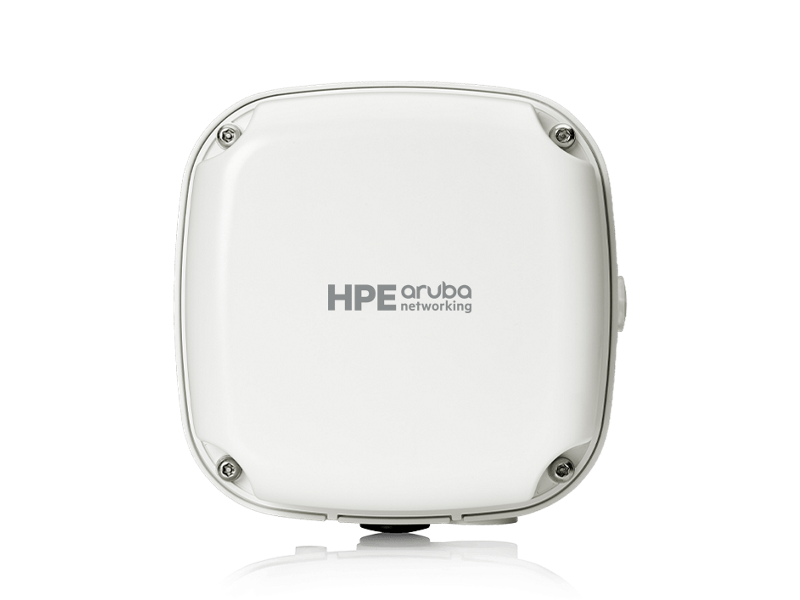

The HPE Aruba Networking AP-567EX (JP) is a rugged, dual-radio 2x2 Wi‑Fi 6 access point designed to operate in explosive or hazardous outdoor locations such as oil rigs, mining facilities, and chemical plants. Featuring Class 1 Division 2 and ATEX Zone 2 certifications, it delivers up to 1.49 Gbps of aggregate throughput and supports Bluetooth 5 and 802.15.4/Zigbee protocols for seamless IoT integration.
Built to withstand extreme temperatures from -40°C to +65°C, the AP-567EX provides directional wireless coverage through internal high-gain antennas. It includes enhanced client and RF optimization with ClientMatch, zero-touch provisioning, and robust security features like WPA3, Dynamic Segmentation, and a built-in Trusted Platform Module (TPM).
Note: Includes (1) Ethernet gland, grounding lug, and USB-to-USB-C console cable. Mounting kit and power source sold separately.
| Specification | Details |
|---|---|
| Model Number | R4W65A |
| Region | Japan (JP) Only |
| Wi-Fi Standard | Dual-band Wi-Fi 6 (802.11ax), Wave 2 |
| Max Aggregate Throughput | Up to 1.49 Gbps |
| Antennas (Wi-Fi) | Internal directional; 5 GHz: 6.7 dBi, 2.4 GHz: 7.0 dBi |
| Antennas (IoT) | BLE/Zigbee: 3.0 dBi |
| IoT Radios | Bluetooth 5 and 802.15.4/Zigbee |
| Ports | 1x 10/100/1000BASE-T RJ-45 (802.3at/bt PoE), USB-C Console |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep Sleep: 1.7W |
| Mounting | Mounting kits sold separately |
| Dimensions (W x H x D) | 16 x 16 x 12.1 cm |
| Weight | 1.09 kg |
| Environmental Rating | -40°C to +65°C; Fully sealed, weatherproof |
| Certifications | Class 1 Division 2, ATEX Zone 2, Wi-Fi CERTIFIED™, CE, FCC, IEC/EN/UL 62368-1 |
| Security | WPA3, Enhanced Open, TPM, PEF (Policy Enforcement Firewall) |
| Client Support | 256 clients per radio (recommended 50 active), 16 BSSIDs per radio |
| Warranty | Limited Lifetime Warranty |
