Description

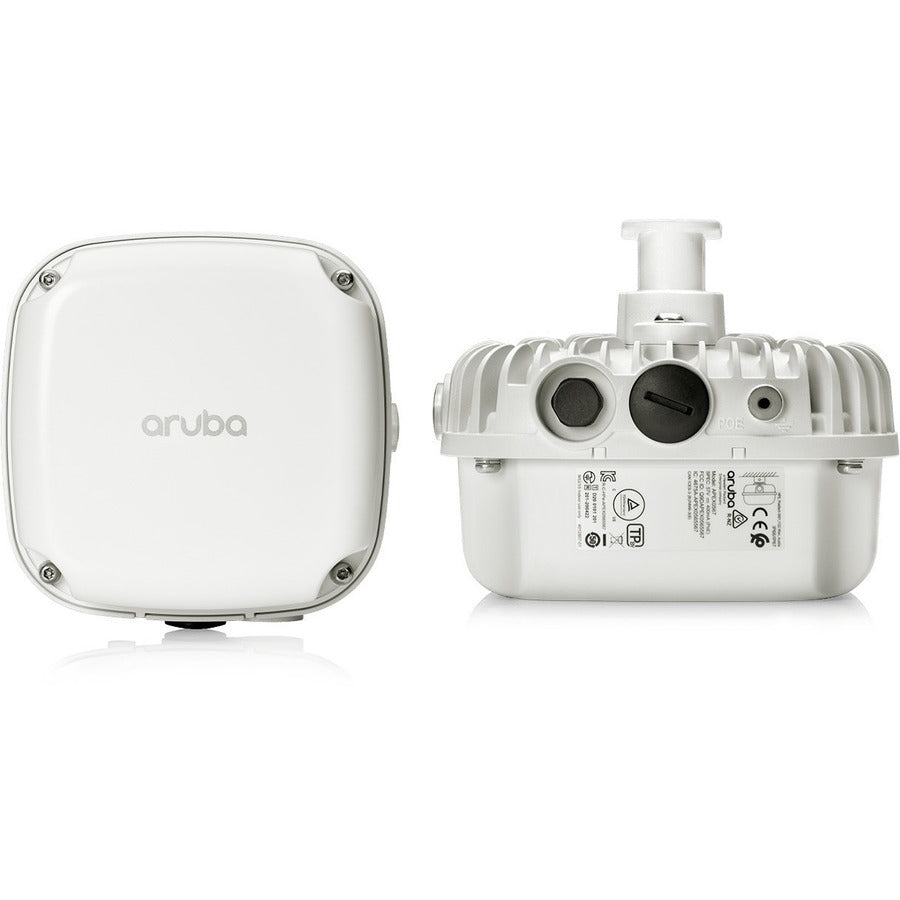

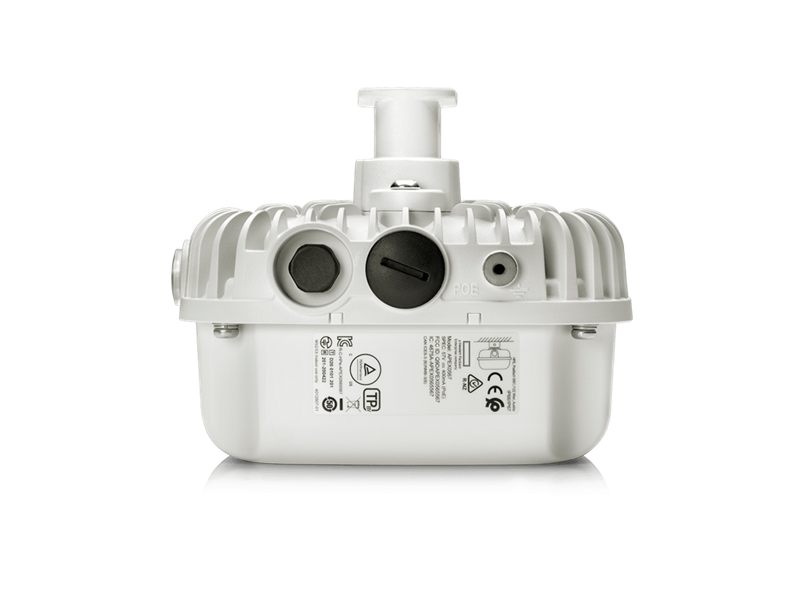

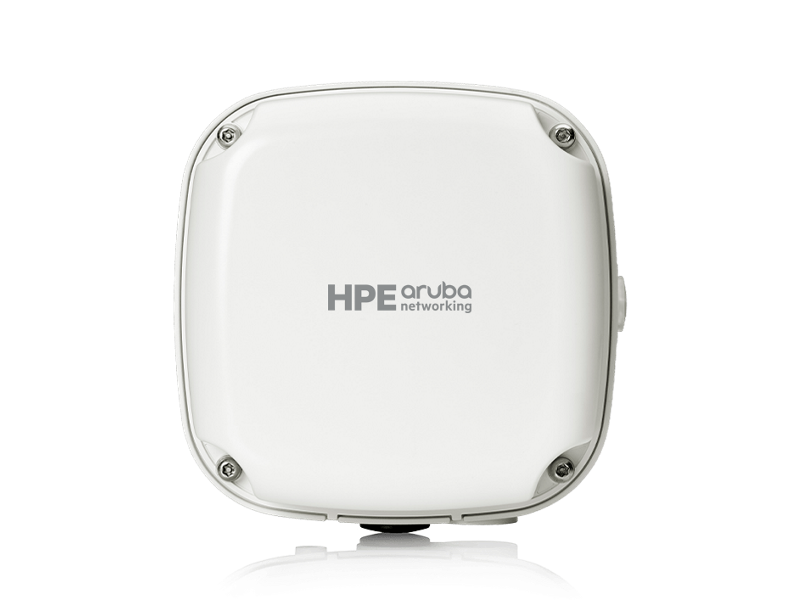

The HPE Aruba Networking AP-567EX (IL) is a ruggedized Wi-Fi 6 access point purpose-built for hazardous locations, certified to operate in Class 1 Division 2 and ATEX Zone 2 environments such as oil fields, mining facilities, and areas with explosive gases or vapors. This dual-radio 2x2 AP features internal directional antennas, Bluetooth 5, and 802.15.4 (Zigbee) radios, delivering an aggregate data rate of up to 1.49 Gbps.
Designed for extreme durability, it withstands temperatures from -40°C to +65°C, is sealed against airborne contaminants, and includes integrated HPE Aruba security and policy enforcement features. With zero-touch provisioning and integration with HPE Aruba Central, the AP-567EX (IL) ensures secure and scalable deployments in mission-critical industrial applications.
| Specification | Details |
|---|---|
| Product Number | R4W29A |
| Deployment Region | Israel only |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual Radio 2x2 MIMO (2.4 GHz & 5 GHz) |
| Maximum Data Rate | Up to 1.49 Gbps (aggregate) |
| Directional Antennas Gain | 2.4 GHz: 7.0 dBi; 5 GHz: 6.7 dBi |
| IoT Support | Integrated Bluetooth 5 & Zigbee (802.15.4) |
| IoT Antenna Gain | 3.0 dBi |
| Client Capacity | Up to 256 clients per radio |
| BSSIDs per Radio | Up to 16 |
| Connectivity | 1x 10/100/1000BASE-T Ethernet (RJ-45), PoE 802.3at/bt, USB-C console port |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep-sleep: 1.7W |
| Power Source | 802.3at/bt PoE (Class 3 or higher), sold separately |
| Certifications | Class 1 Division 2, ATEX Zone 2, UL2043, Wi-Fi 6, CE, FCC, CB Scheme, etc. |
| Environmental Durability | -40°C to +65°C, moisture, dust, contaminants resistant |
| Mounting | Optional kits available (sold separately) |
| Form Factor | Compact outdoor hardened unit |
| Dimensions (W x D x H) | 16 x 16 x 12.1 cm |
| Weight | 1.09 kg |
| Warranty | Limited Lifetime Warranty |
