Description

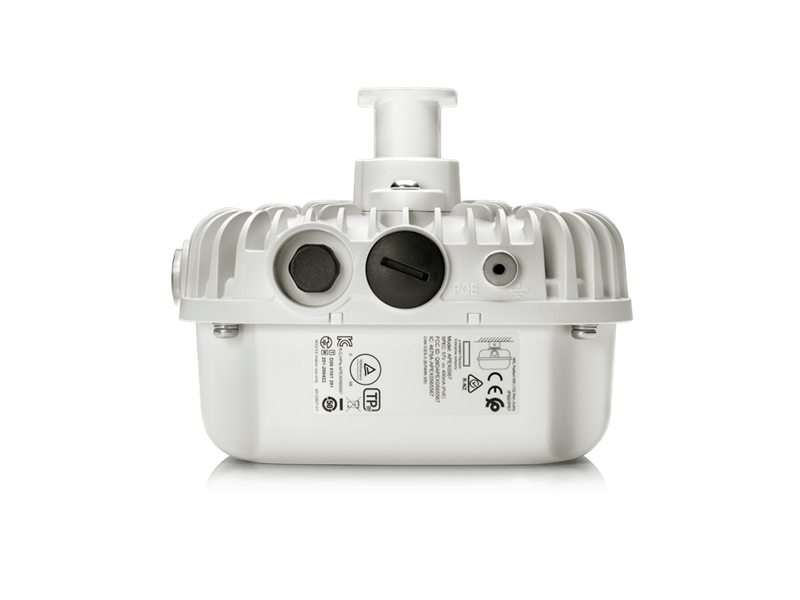

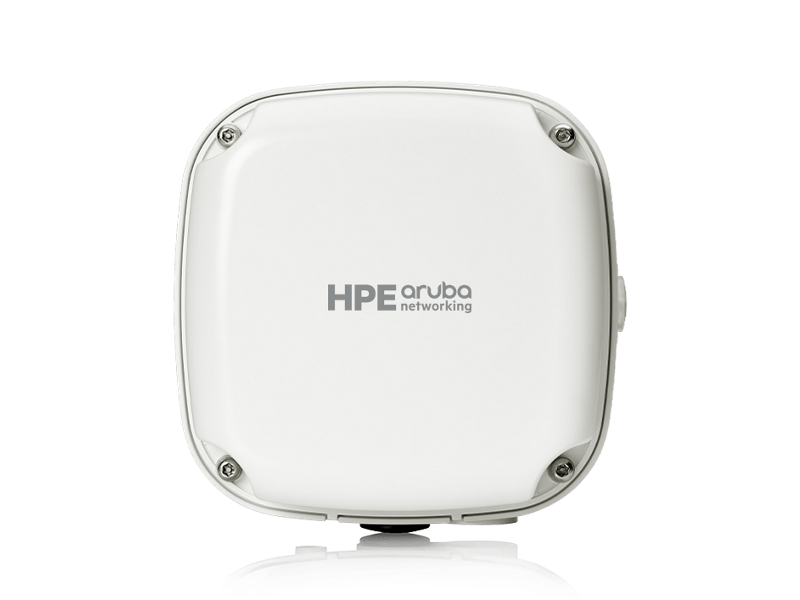

The HPE Aruba Networking AP-567EX (R4W67A) is a high-performance dual-radio Wi-Fi 6 access point designed for hazardous locations, including oil rigs, mining sites, and areas with flammable gases or vapors. Certified for Class 1 Division 2 and ATEX Zone 2, this outdoor-rated AP delivers secure and reliable wireless connectivity with a maximum aggregate data rate of up to 1.49 Gbps.
Equipped with 2x2 MIMO radios for both 5 GHz and 2.4 GHz, built-in Bluetooth 5 and 802.15.4 (Zigbee) radios, and enhanced features like ClientMatch, Dynamic Segmentation, and WPA3 security, it ensures performance, security, and operational efficiency. It operates across extreme temperatures (-40ΛC to +65ΛC) and is built with a ruggedized, sealed design to withstand harsh environments.
Note: AP includes one Ethernet gland, grounding lug, and USB to USB-C console cable. Mount kit sold separately.
| Specification | Details |
|---|---|
| Product Number | R4W67A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), Dual-radio (5 GHz + 2.4 GHz) |
| MIMO Configuration | 2x2 for both 5 GHz and 2.4 GHz |
| Maximum Data Rate | Up to 1.49 Gbps aggregate |
| Certifications | Class 1 Division 2, ATEX Zone 2, CB Scheme Safety, cTUVus, UL2043 |
| Antenna Gain | 5 GHz: 6.7 dBi, 2.4 GHz: 7.0 dBi, BLE/Zigbee: 3.0 dBi |
| IoT Support | Bluetooth 5, Zigbee (802.15.4) |
| Client Capacity | Up to 256 clients per radio (50 active clients recommended) |
| Ports | 1x RJ-45 (10/100/1000BASE-T), USB-C console, Reset button |
| Power Input | 48 VDC (PoE, 802.3at/bt Class 3 or higher) |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep sleep: 1.7W |
| Operating Temperature | -40Β°C to +65Β°C |
| Mounting | Optional kits available (sold separately) |
| Dimensions (WxDxH) | 16 x 16 x 12.1 cm |
| Weight | 1.09 kg |
| Warranty | Limited lifetime warranty |
