Description

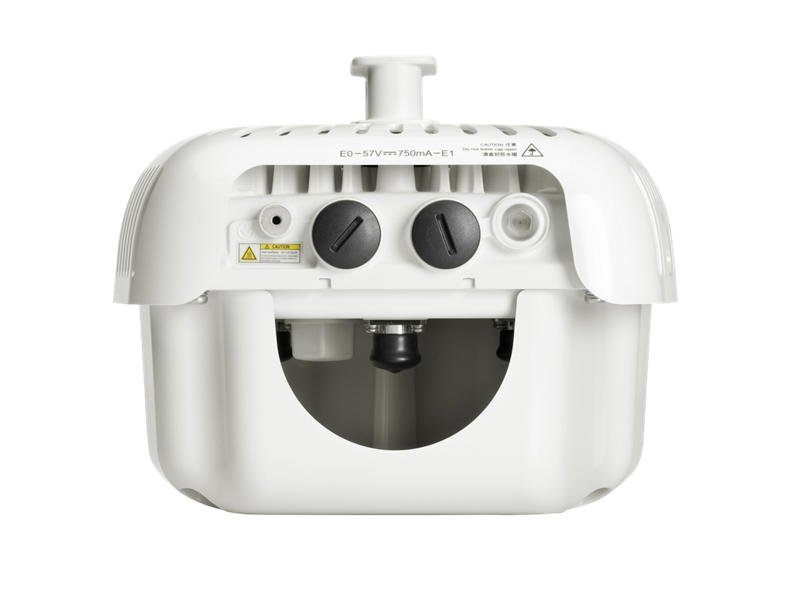

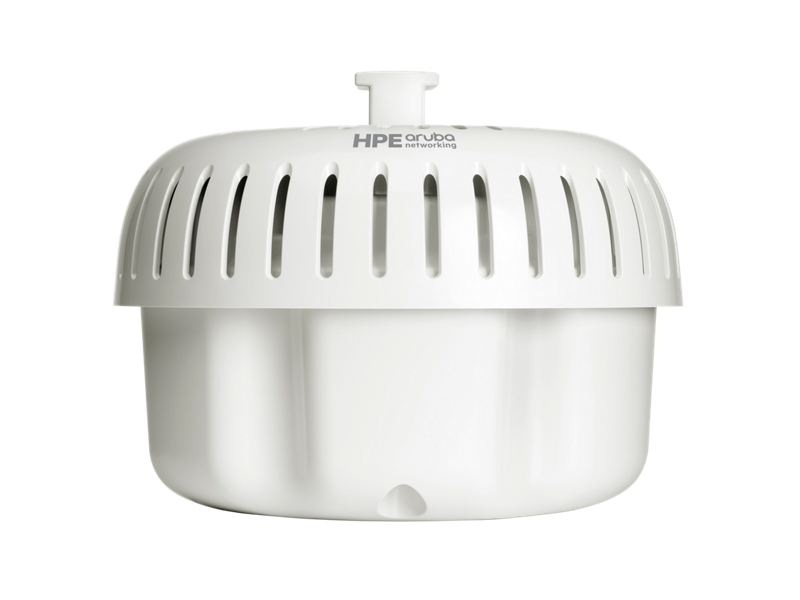

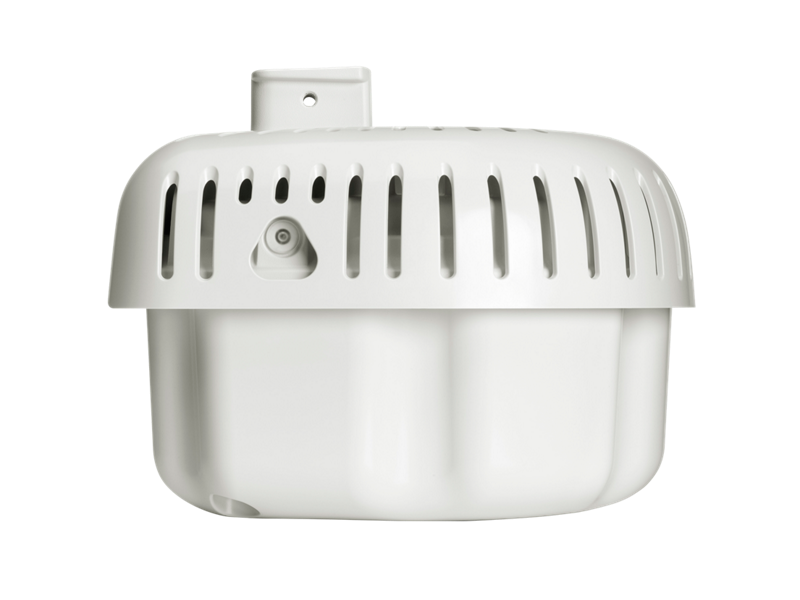

The HPE Aruba Networking AP-574 (R4H25A) is a rugged, high-performance outdoor access point built for enterprise-grade Wi-Fi 6 connectivity in extreme environments. Featuring dual-radio 802.11ax (Wi-Fi 6) technology, this unit supports 2x2 MIMO at 2.4 GHz and 4x4 MIMO at 5 GHz, delivering a combined throughput of up to 2.69 Gbps. With 6xNf connectors for external antennas, it is ideal for flexible outdoor deployment scenarios like parking lots, stadiums, and industrial campuses.
Designed to operate in harsh conditions (from -40˚C to +65˚C), the AP-574 includes integrated Bluetooth 5 and Zigbee radios for seamless IoT support. It leverages HPE Aruba’s Zero Touch Provisioning, AI-powered analytics, Dynamic Segmentation, and robust policy enforcement via integrated firewall features—making it a secure and scalable outdoor solution for modern enterprise networks.
| Attribute | Details |
|---|---|
| Product Number | R4H25A |
| Model | HPE Aruba Networking AP-574 (IL) |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Radios | Dual Radio: 2.4 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO) |
| Max Data Rate | Up to 2.69 Gbps aggregate |
| Antenna Interface | 6x Nf connectors (4x RP-SMA for 5 GHz, 2x RP-SMA for 2.4 GHz) |
| Environmental Rating | Outdoor-hardened, IP66/67-compliant |
| Operating Temperature | -40°C to +65°C |
| Mounting Options | Optional mounting kits available |
| IoT Support | Integrated Bluetooth 5, 802.15.4/Zigbee, USB port for third-party expansion |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall (PEF) |
| Power Consumption | Max: 32.0W (dual PoE), 26.1W (single PoE); Idle: 14.0W (single), 16.0W (dual); Deep-sleep: 2.9W (single), 3.9W (dual) |
| Dimensions (H x W x D) | 19 x 23 x 24 cm |
| Weight | 2.4 kg |
| Compliance | TAA-compliant; CB Scheme, FCC/ISED, CE, Railway Certs (EN 50155, EN 50121, IEC 61373) |
| Warranty | Limited lifetime warranty |
