Description
Ruggedized High-Performance Outdoor Wi-Fi 6 with IoT Capabilities

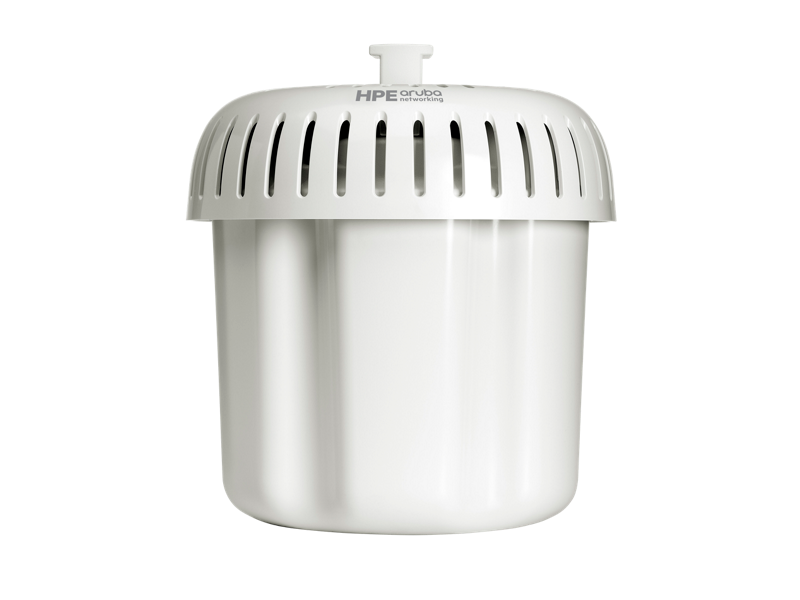

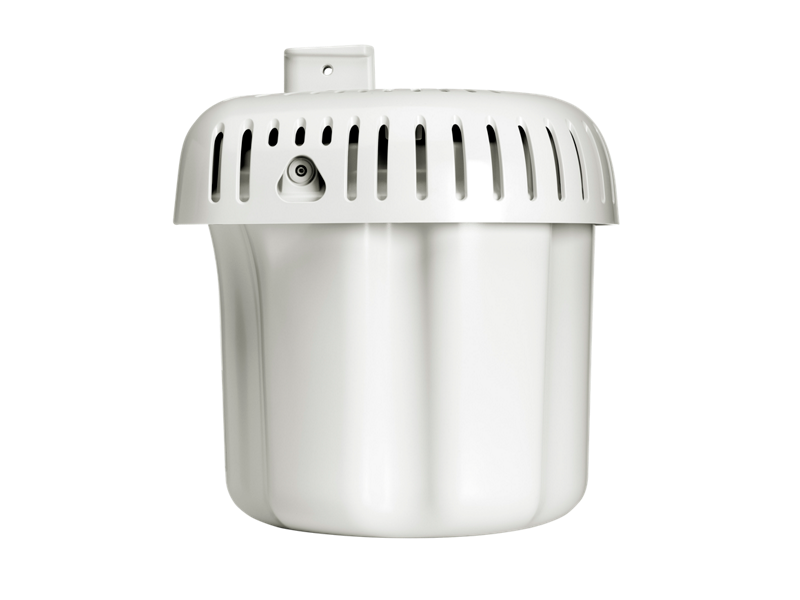

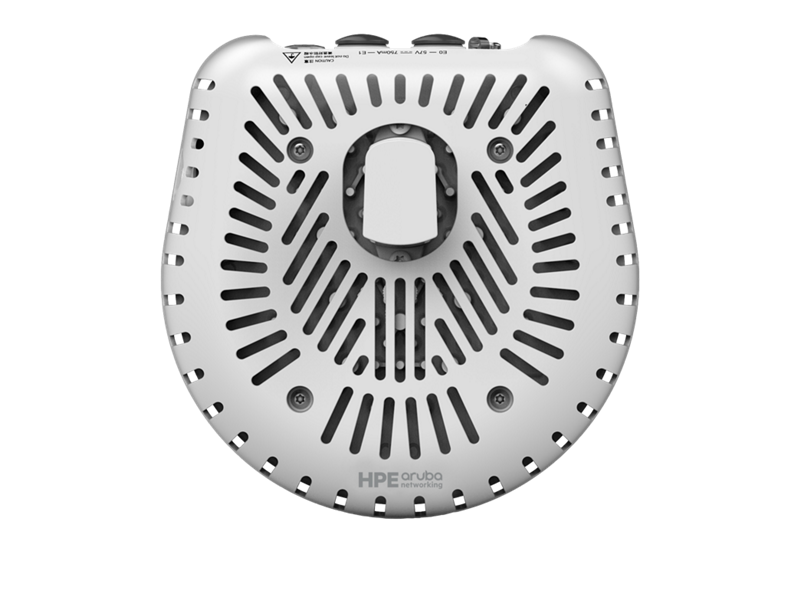

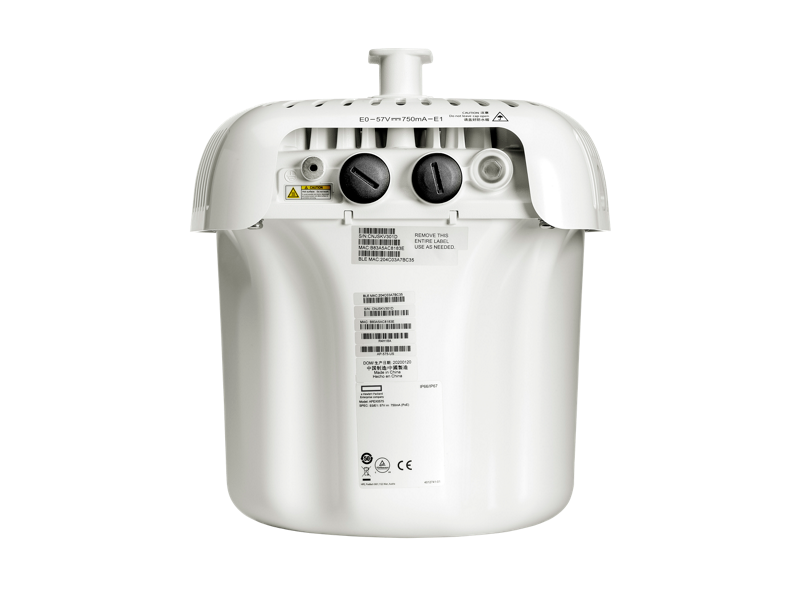

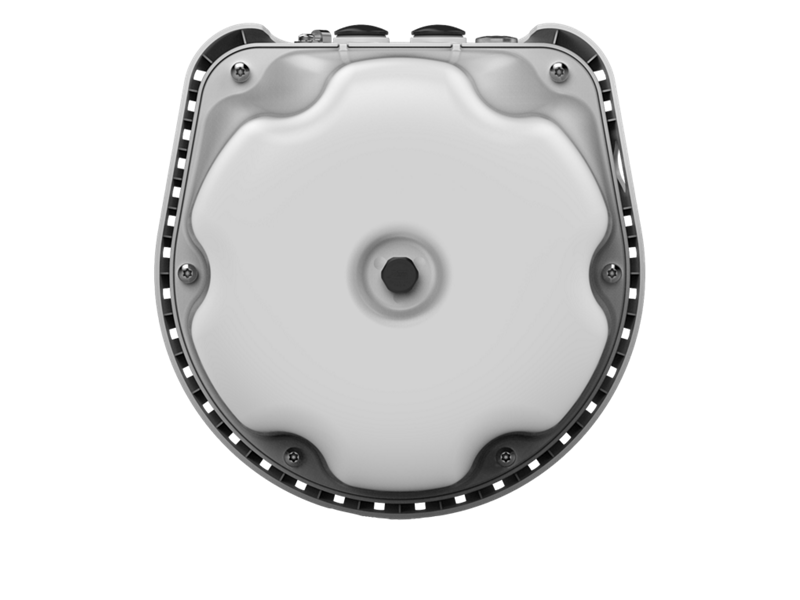

The HPE Aruba Networking AP-575 (EGF1) is a TAA-compliant outdoor access point built for demanding environments such as stadiums, public venues, and industrial sites. Part of the 570 Series, this model offers dual radio Wi-Fi 6 (802.11ax) performance with 2x2 MIMO at 2.4 GHz and 4x4 MIMO at 5 GHz, delivering up to 2.69 Gbps aggregate throughput.
Engineered for harsh climates, the AP-575 operates in temperatures from -40°C to +65°C and is fully sealed against moisture and airborne contaminants. Integrated Bluetooth 5 and 802.15.4/Zigbee radios make it IoT-ready, while advanced features like ClientMatch™, Dynamic Segmentation, WPA3 security, and Zero Touch Provisioning ensure high-performance, secure, and scalable outdoor deployments.
Whether enhancing coverage in parking lots, extending connectivity in remote zones, or supporting dense environments, the AP-575 brings speed, reliability, and security to your outdoor network infrastructure.
| Specification | Details |
|---|---|
| Product Number | R4H29A |
| Model | HPE Aruba Networking AP-575 (EGF1) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Radios | Dual Radio: 2.4 GHz (2x2 MIMO), 5 GHz (4x4 MIMO) |
| Maximum Data Rate | 2.69 Gbps aggregate throughput |
| Antenna Type | Internal Omni-Directional: 2.4 GHz (4.0 dBi), 5 GHz (4.6 dBi) |
| IoT Support | Integrated Bluetooth 5 and 802.15.4 (Zigbee) radios |
| Power Consumption | Max 32.0W (dual PoE), 26.1W (single PoE); Idle: 14.0W (single PoE) |
| Mounting | Optional kits available |
| Temperature Range | -40°C to +65°C |
| Ingress & Weatherproofing | Fully sealed for dust, moisture, airborne contaminants; outdoor rated |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| Certifications | TAA, Wi-Fi 6 certified, UL2043, FCC, CE, EN 50155 (railway), and more |
| Dimensions (H x W x D) | 27 x 23 x 24 cm |
| Weight | 2.4 kg |
| Warranty | Limited Lifetime Warranty |
