Description

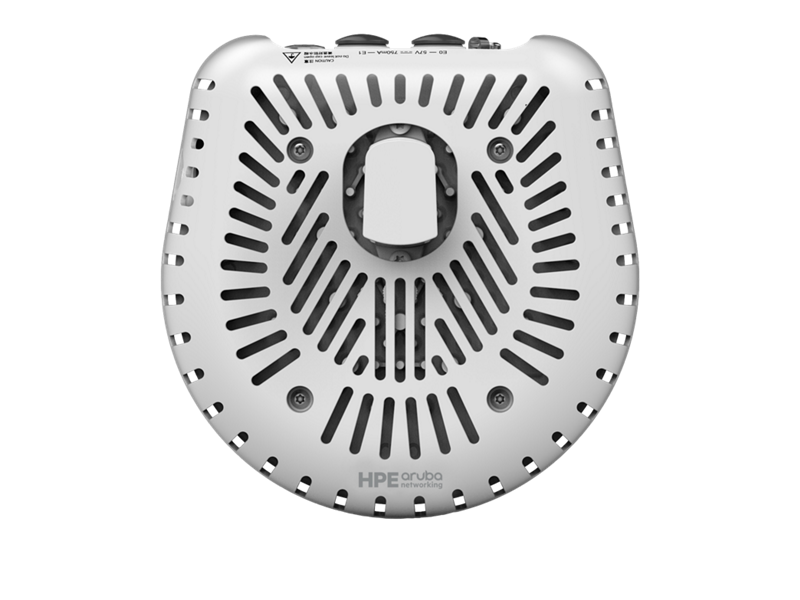

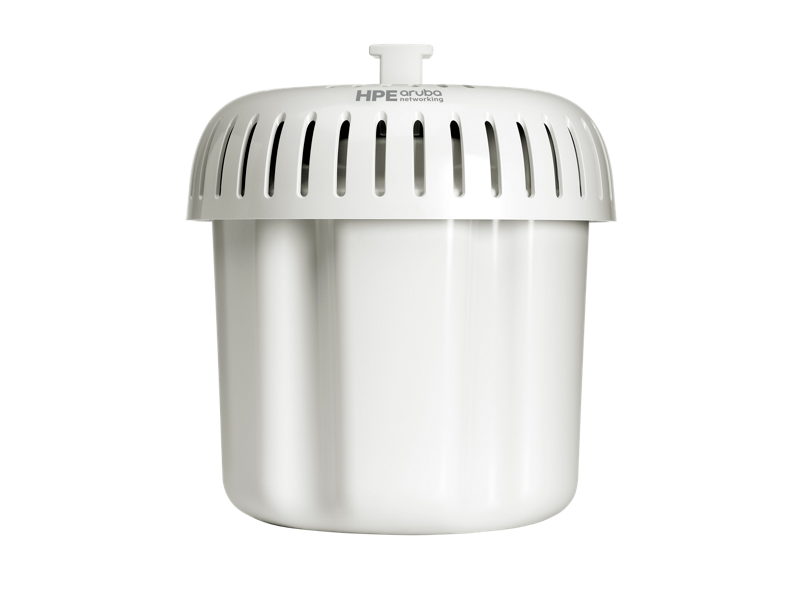

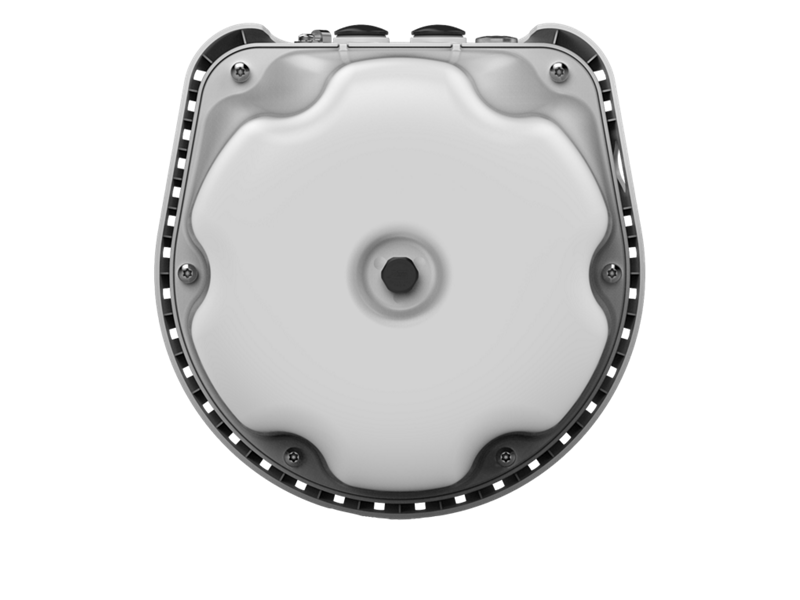

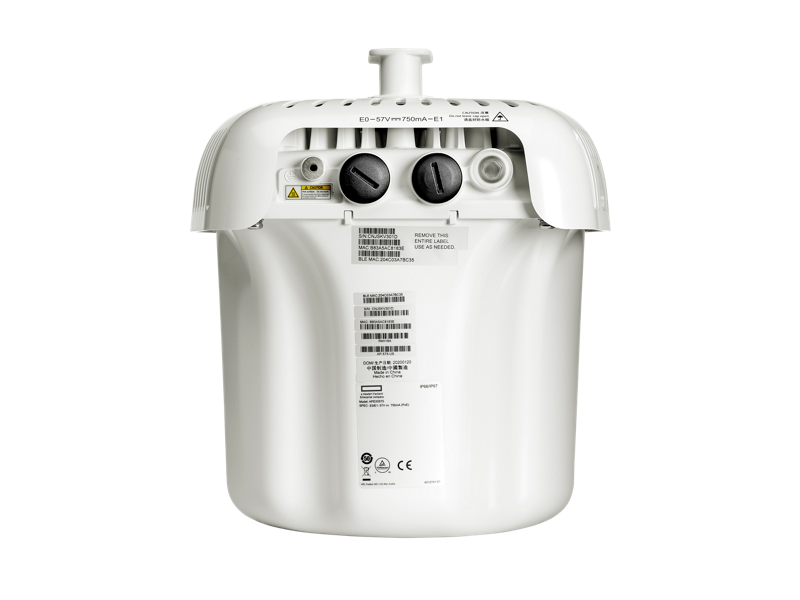

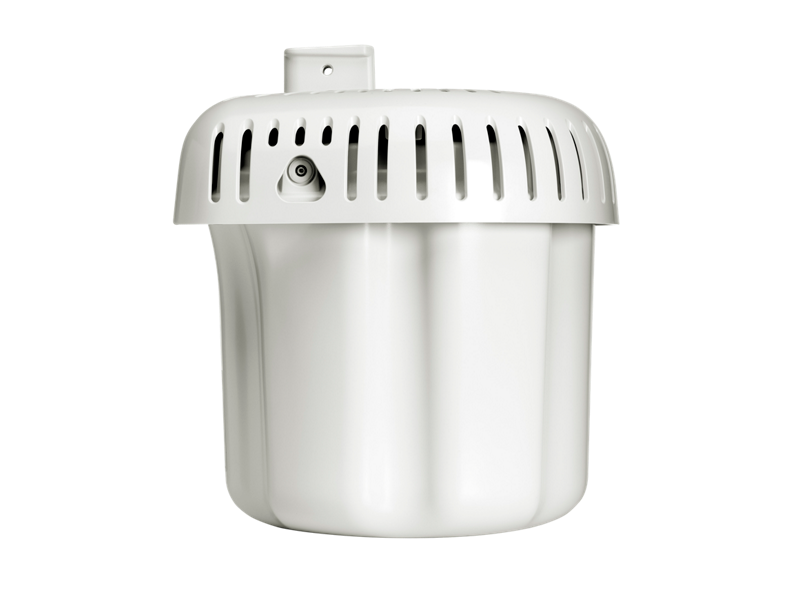

Engineered for extreme outdoor environments, the HPE Aruba Networking AP‑575 (R4H30A) is a rugged, high-performance Wi-Fi 6 (802.11ax) access point featuring dual radios (2x2 + 4x4 MIMO), integrated omni-directional antennas, and weather-hardened construction. With a maximum aggregate throughput of 2.69 Gbps, built-in Bluetooth 5 and 802.15.4/Zigbee radios, and integrated IoT readiness, this AP is ideal for outdoor public venues, industrial zones, and transportation sites.
Advanced features like ClientMatch, Dynamic Segmentation, and a Trusted Platform Module (TPM) enhance client performance, enforce consistent policies, and secure device access. Designed to withstand -40˚C to +65˚C temperatures, the AP‑575 ensures reliable connectivity even in the harshest conditions. Supported by a limited lifetime warranty and centralized management via HPE Aruba Networking Central.
| Specification | Details |
|---|---|
| Product Number | R4H30A |
| Product Type | Outdoor Hardened Dual-Radio Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Radio Configuration | Dual radio: 5 GHz 4x4 MU-MIMO, 2.4 GHz 2x2 MIMO |
| Max Data Rate | Up to 2.69 Gbps |
| Antenna Type | Built-in omni-directional: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi) |
| Bluetooth/Zigbee Support | Integrated Bluetooth 5 and 802.15.4 (Zigbee) radio |
| IoT Capability | Target Wake Time (TWT), USB for expansion |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall |
| Mounting Options | Optional mounting kits (sold separately) |
| Power Consumption (Max) | 32.0W (dual PoE), 26.1W (single PoE) |
| Idle/Deep Sleep Power | Idle: 14–16W; Deep Sleep: 2.9–3.9W |
| Environmental Rating | -40˚C to +65˚C; sealed for dust and moisture protection |
| Certifications | UL2043, Wi-Fi CERTIFIED 6, IEC 62368-1, Railway Standards (EN 50155, etc.) |
| Dimensions (HxWxD) | 27 x 23 x 24 cm |
| Weight | 2.4 kg |
| Warranty | Limited Lifetime Warranty |
