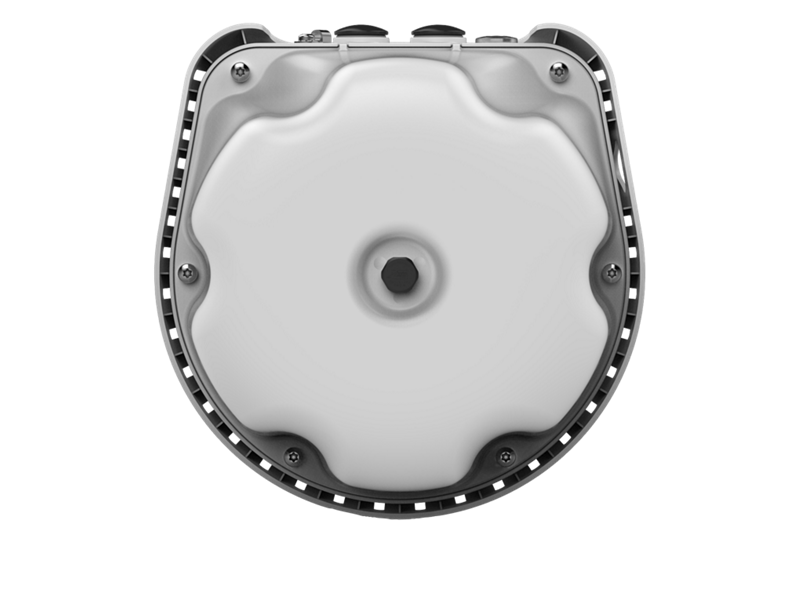

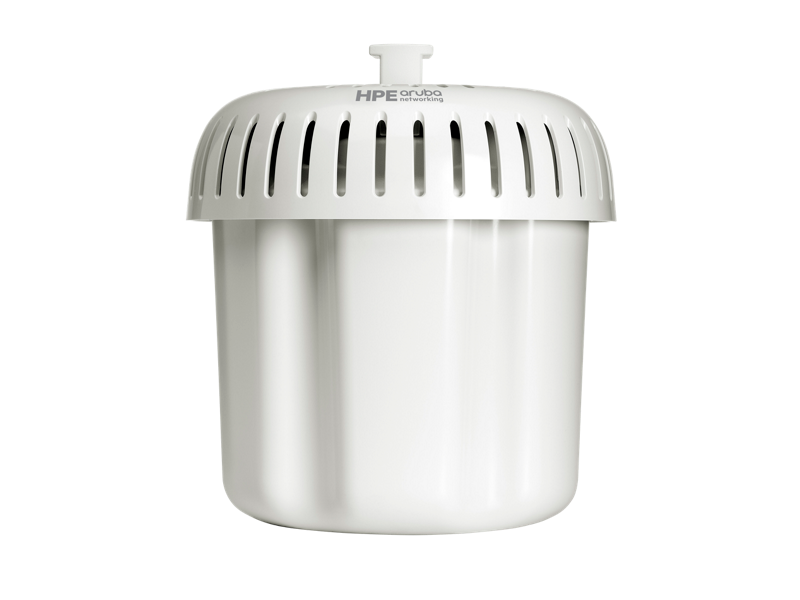

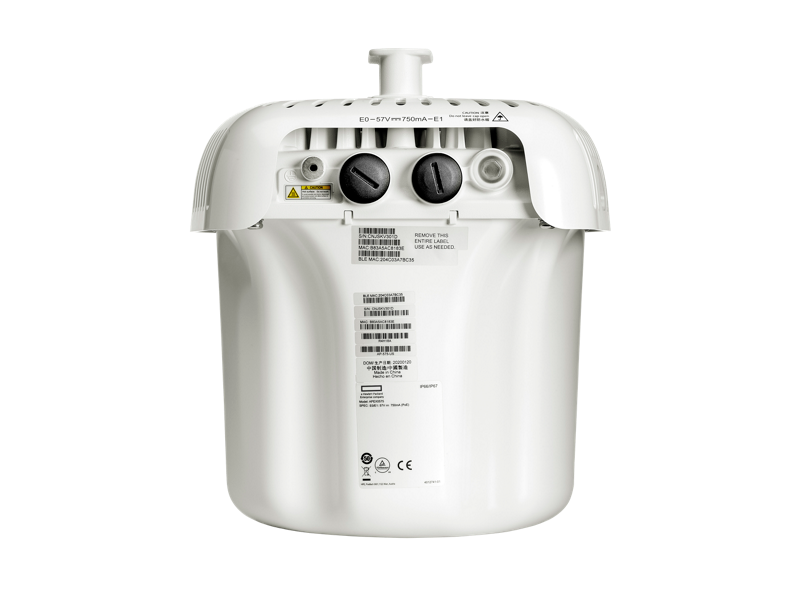

The HPE Aruba Networking AP-575 (JP) is a rugged, high-performance outdoor access point designed for the most challenging environments. Part of the Aruba 570 Series, this Wi-Fi 6-enabled AP delivers up to 2.69 Gbps of aggregate data throughput and supports both 2.4 GHz (2x2:2) and 5 GHz (4x4:4) MIMO radios for optimal client performance.
Equipped with integrated omni-directional antennas, Bluetooth 5, and Zigbee, it’s ideal for IoT connectivity in outdoor deployments such as stadiums, transportation hubs, and industrial facilities. It’s built to withstand extreme temperatures, heavy moisture, and dust—making it perfect for year-round, mission-critical use.
Security is bolstered with built-in TPM, WPA3 encryption, and policy-based segmentation via Aruba’s Policy Enforcement Firewall. The AP-575 also supports Zero Touch Provisioning and is managed through HPE Aruba Networking Central for full visibility and automation.
| Model |
HPE Aruba Networking AP-575 (JP) |
| Form Factor |
Outdoor Access Point with integrated omni antennas |
| Wi-Fi Standard |
Wi-Fi 6 (802.11ax) |
| Radios |
Dual radio: 5 GHz 4x4:4 and 2.4 GHz 2x2:2 MIMO |
| Max Aggregate Data Rate |
2.69 Gbps |
| Antenna Type |
Integrated Omni-directional: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi) |
| Power Options |
PoE: 802.3at/af (single/dual port) |
| Power Consumption |
Max: 32.0W (dual PoE), 26.1W (single PoE), Idle: 14W/16W, Deep Sleep: 2.9W/3.9W |
| Temperature Range |
-40°C to +65°C |
| Environmental Protection |
IP66/67 rated; weatherproof, dust-resistant |
| IoT Support |
Bluetooth 5, Zigbee, USB for expansion |
| Security Features |
WPA3, TPM, Enhanced Open, Dynamic Segmentation |
| Mounting |
Mount kits sold separately |
| Dimensions (H x W x D) |
27 x 23 x 24 cm |
| Certifications |
Wi-Fi CERTIFIED 6, UL2043, EN 50155, EN 50121-4, IEC 61373, TAA Compliant |
| Warranty |
Limited lifetime warranty |
