Description
Rugged Wi‑Fi 6 Connectivity for Hazardous Outdoor Environments

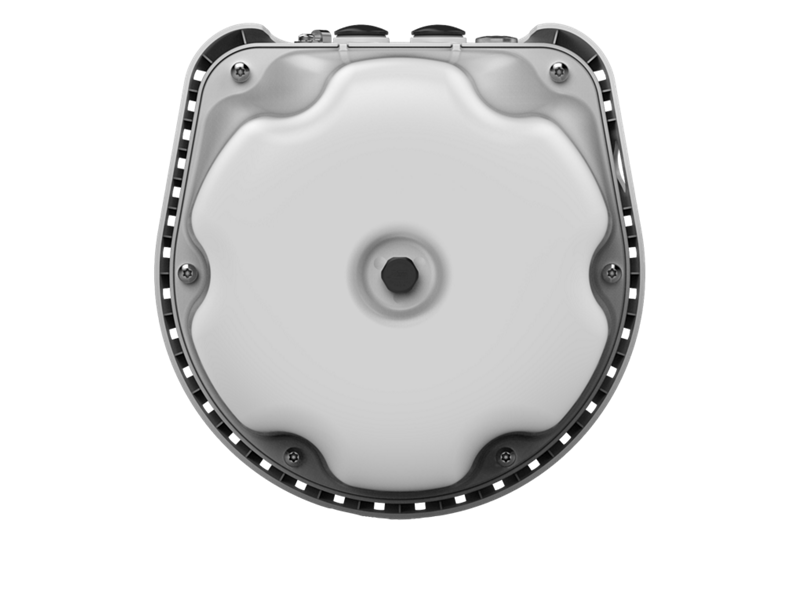

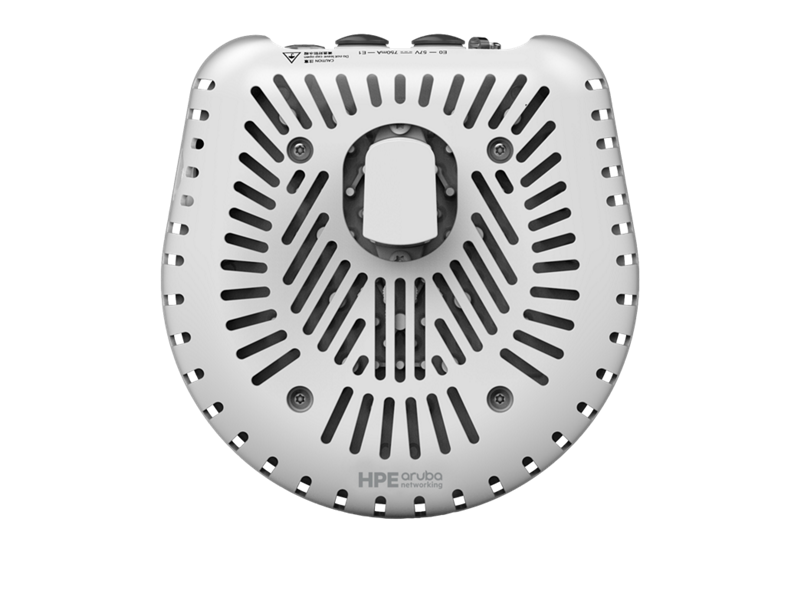

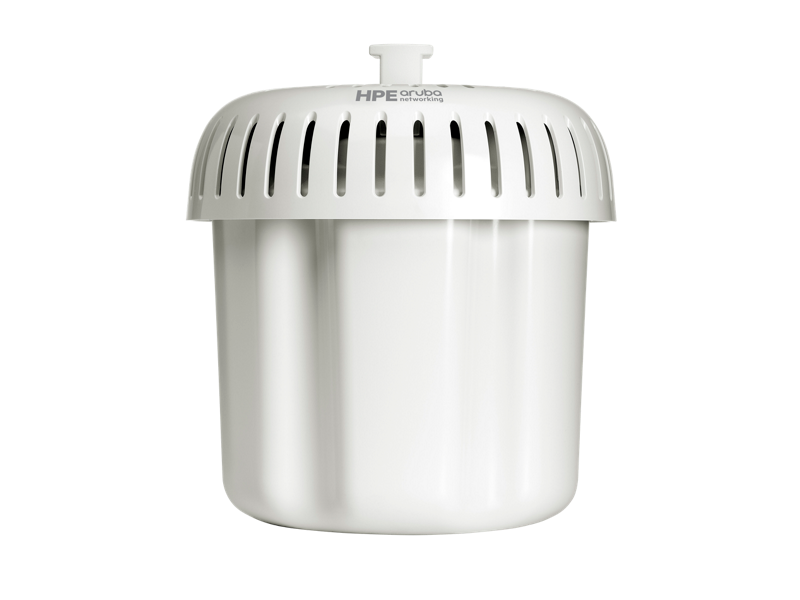

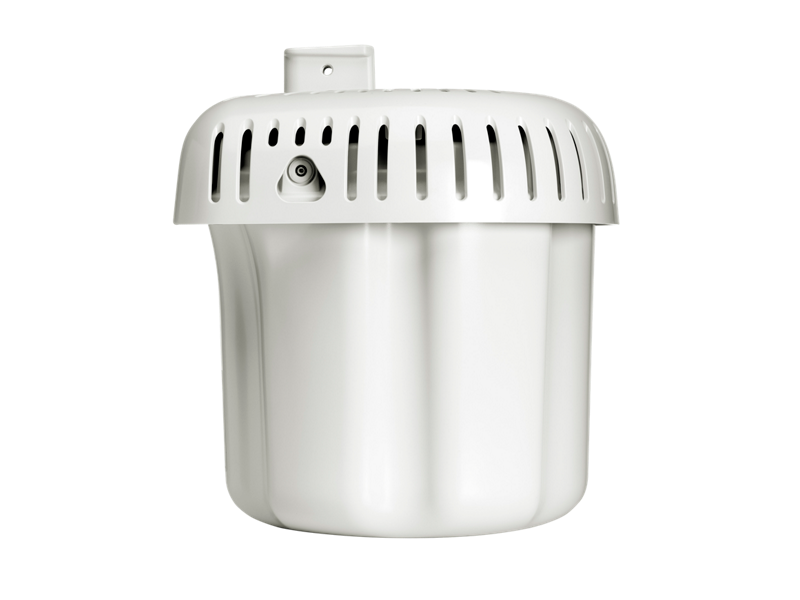

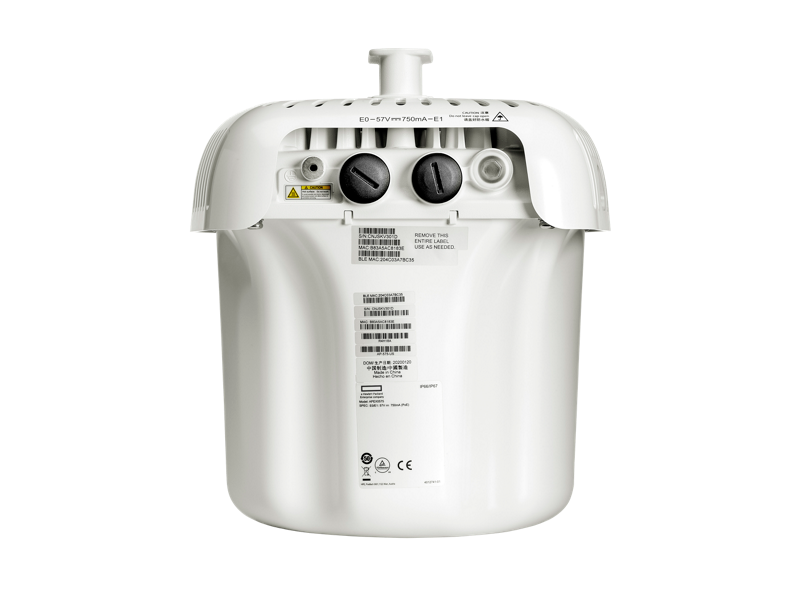

The HPE Aruba Networking AP‑575EX (JP) is a purpose-built Wi‑Fi 6 outdoor access point designed for hazardous locations, including oil rigs, mining sites, and areas with ignitable vapors or gases. This ruggedized AP meets Class 1 Division 2 and ATEX Zone 2 certifications and operates reliably in temperatures from -40°C to +65°C.
With internal omni-directional antennas, dual radios (4x4 5 GHz + 2x2 2.4 GHz), and support for Bluetooth 5 and 802.15.4/Zigbee, it enables seamless client and IoT device connectivity with up to 2.69 Gbps aggregate throughput. Advanced features such as ClientMatch, Dynamic Segmentation, and Policy Enforcement Firewall ensure optimal performance, security, and simplified policy control across enterprise networks.
| Specification | Details |
|---|---|
| Product Number | R4W32A |
| Wi-Fi Standard | IEEE 802.11ax (Wi‑Fi 6) |
| Radios | Dual radio: 5 GHz (4x4 MIMO), 2.4 GHz (2x2 MIMO) |
| Max Aggregate Data Rate | Up to 2.69 Gbps |
| Antenna Type | Built-in omnidirectional antennas |
| Antenna Gain | 5 GHz: 4.6 dBi, 2.4 GHz: 4.0 dBi |
| Bluetooth/Zigbee Support | Integrated Bluetooth 5 and 802.15.4 radio |
| HazLoc Certification | Class 1 Division 2, ATEX Zone 2 |
| Operating Temperature | -40°C to +65°C |
| Power Consumption (Max) | Dual PoE: 32.0W, Single PoE: 26.1W |
| Power Consumption (Idle/Deep Sleep) | Idle: 14W (1 port) / 16W (2 ports), Sleep: 2.9W (1 port) / 3.9W (2 ports) |
| Mounting Options | Optional kits available (not included) |
| Dimensions (H x W x D) | 27 x 23 x 24 cm |
| Weight | 2.4 kg |
| Security Features | WPA3, Enhanced Open, TPM, PEF, Dynamic Segmentation |
| Management | HPE Aruba Central, Zero Touch Provisioning (ZTP) |
| Warranty | Limited Lifetime Warranty |
